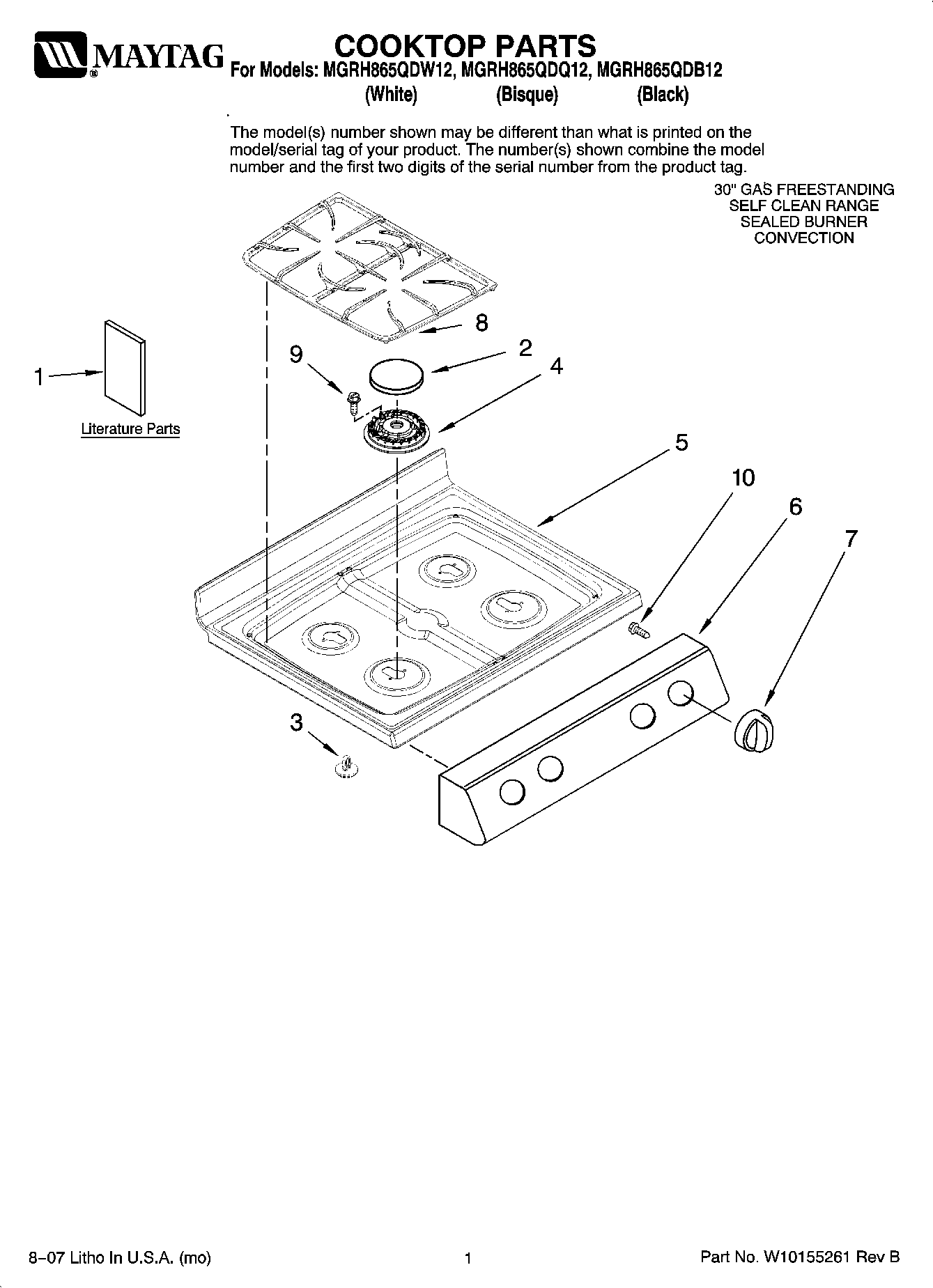

MGRH865QDB12 01 – COOKTOP PARTS

Products

Position	Product
1	MAY W10156248
1	MAY W10129630
2	MAY W10154098
2	WP74007415 Whirlpool Burner Cap
2	CAP, BURNER (SMR-GRY)
2	WP74007420 Whirlpool Large Gray Burner Cap
2	WP74007421 Whirlpool Burner Cap
2	WP74007417 Whirlpool Burner Cap
2	WP74007419 Whirlpool Burner Cap
2	MAY W10154101
2	WP74007418 Whirlpool Burner Cap
3	74008761 Whirlpool Spacer Snap-In
4	BASE, BURNER(9.2K)
4	WPW10406878 Whirlpool Burner Base (16K)
4	WPW10406243 Whirlpool Burner Head Auxiliary 6K
5	TOP, MAIN (BSQ)
5	TOP, MAIN (WHT)
5	TOP, MAIN (BLK)
6	PANEL, MANIFOLD (BLK)
6	PANEL, MANIFOLD (BSQ)
6	PANEL, MANIFOLD (WHT)
7	KNOB (BLK)
7	WP74009775 Whirlpool Burner Knob
7	74009774 Whirlpool Oven Knob Bisque
8	GRATE, DOUBLE (GRY)
8	GRATE, DOUBLE (TAUPE)
8	74009120 Whirlpool Oven Double Grate Black
9	WP3368921 Whirlpool Screw
10	SCREW
