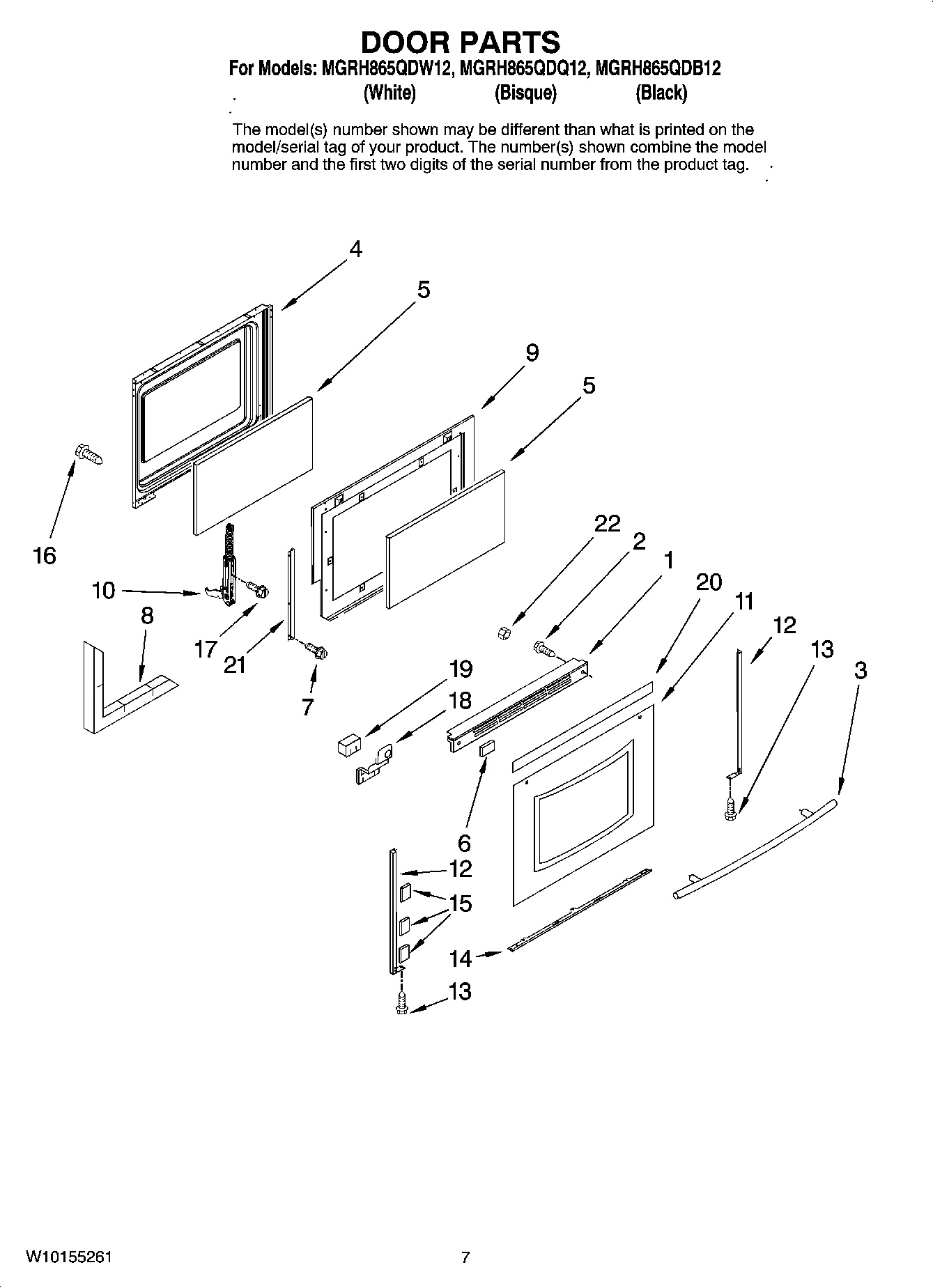

MGRH865QDB12 05 – DOOR PARTS

Products

Position	Product
1	TRIM, TOP (BSQ)
1	Trim, Door Top (Black)
1	Trim, Door Top (White)
2	WP74009541 Whirlpool Screw Assembly
2	WP98008544 Whirlpool Screw Assembly
3	WP74011675 Whirlpool Door Handle
3	HANDLE, DOOR (BSQ)
3	74011777 Whirlpool Range Oven Door Handle
4	MAY 74008926
5	74003645 Whirlpool Range Oven Door Inner Glass
6	WP74004224 Whirlpool Tape
7	SCREW
8	INSULATION, OVEN DOOR
9	Retainer, Side
10	74010546 Whirlpool Range Oven Door Hinge
11	Glass, Door (Black (Order Item 15 When Replacing Door Glass))
11	Glass, Door (White)
11	GLASS, DOOR (BSQ)
12	MAY 74010560
12	MAY 74010561
12	TRIM, SIDE (BSQ)
13	WP98008545 Whirlpool Screw
14	WP3608F092-71 Whirlpool Bottom Trim
14	TRIM, BOTTOM (BLK)
14	TRIM, BOTTOM (BSQ)
15	WP74009014 Whirlpool Double Tape
15	WP74009025 Whirlpool Double Sided Tape
16	WPY706189 Whirlpool Stove Screw
17	SCREW (10-24X5/16-NI)
18	BRACKET, DOOR HANDLE (RT)
18	BRACKET, DOOR HANDLE (LT)
19	INSULATION, CORNER (DOOR)
20	TAPE, FOIL (3“ WIDE)
21	3801F886-51 Whirlpool Mounting Bracket
22	WP3400029 Whirlpool Dishwasher Nut
