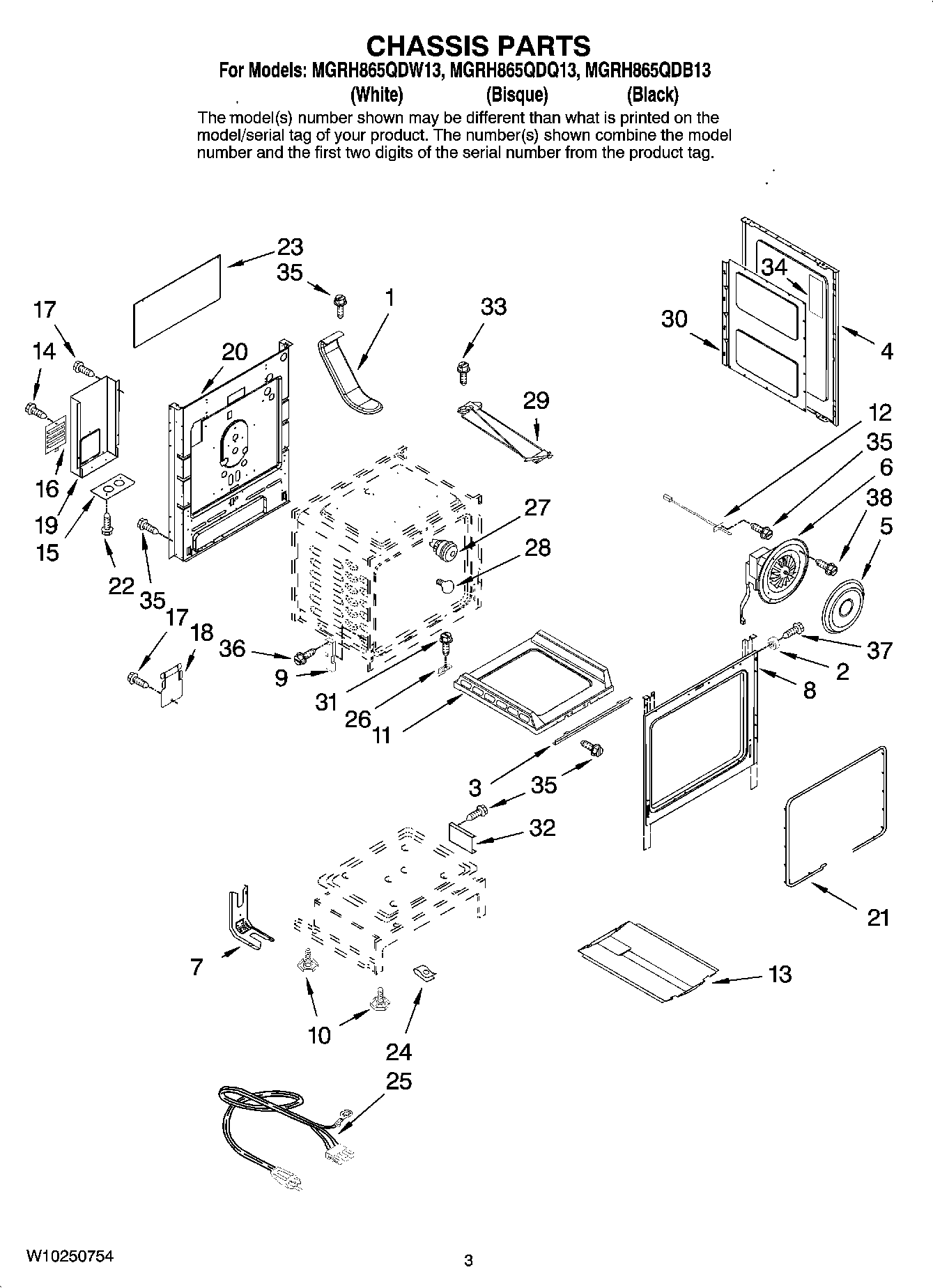

MGRH865QDB13 03 – CHASSIS PARTS

Products

Position	Product
NI	INSULATION, WRAPPER
NI	MAY 7002P492-60
1	MAY 74008817
2	SPACER, SIDE PANEL
3	MAY 3807P680-45
4	PANEL, SIDE (BSQ)
4	MAY 74008710
4	MAY 74008709
5	COVER, CONVECT
6	MAY 74011174
7	WP3801F656-51 Whirlpool Range Anti-Tip Bracket
9	WP74010551 Whirlpool Receiver
10	W11665456 Whirlpool Range Level Foot
11	WPW10211368 Whirlpool Oven Bottom
12	12001655 Whirlpool Oven Sensor
13	MAY 3601P356-45
14	SCREW (8BX3/8-NI)
15	PLATE, CONDUIT REINFORCEMENT
16	MAY 74008340
17	MAY 71001394
18	COVER, BROIL ACCESS FITTING
19	Cover, Wire (LWR)
20	MAY 4002F347-51
21	MAY W10162385
22	MAY 7101P336-60
23	MAY 3604F372-51
24	74008835 Whirlpool Clip Retainer
25	MAY 74008876
26	MAY 3801P822-45
27	WP74011278 Whirlpool Light
28	RANGE ONLY 40W 120V APPL BULB
29	MAY 8002P104-60
30	MAY 3804F316-51
31	WP74003976 Whirlpool Screw
32	MAY 3801P798-51
33	74003975 Whirlpool Screw P1 (8ABX3/8-BLK)
34	MAY 7002P494-60
35	SCREW
36	SCREW (10-24X5/16-NI)
37	SCREW W/SHOULDER (No.8)
