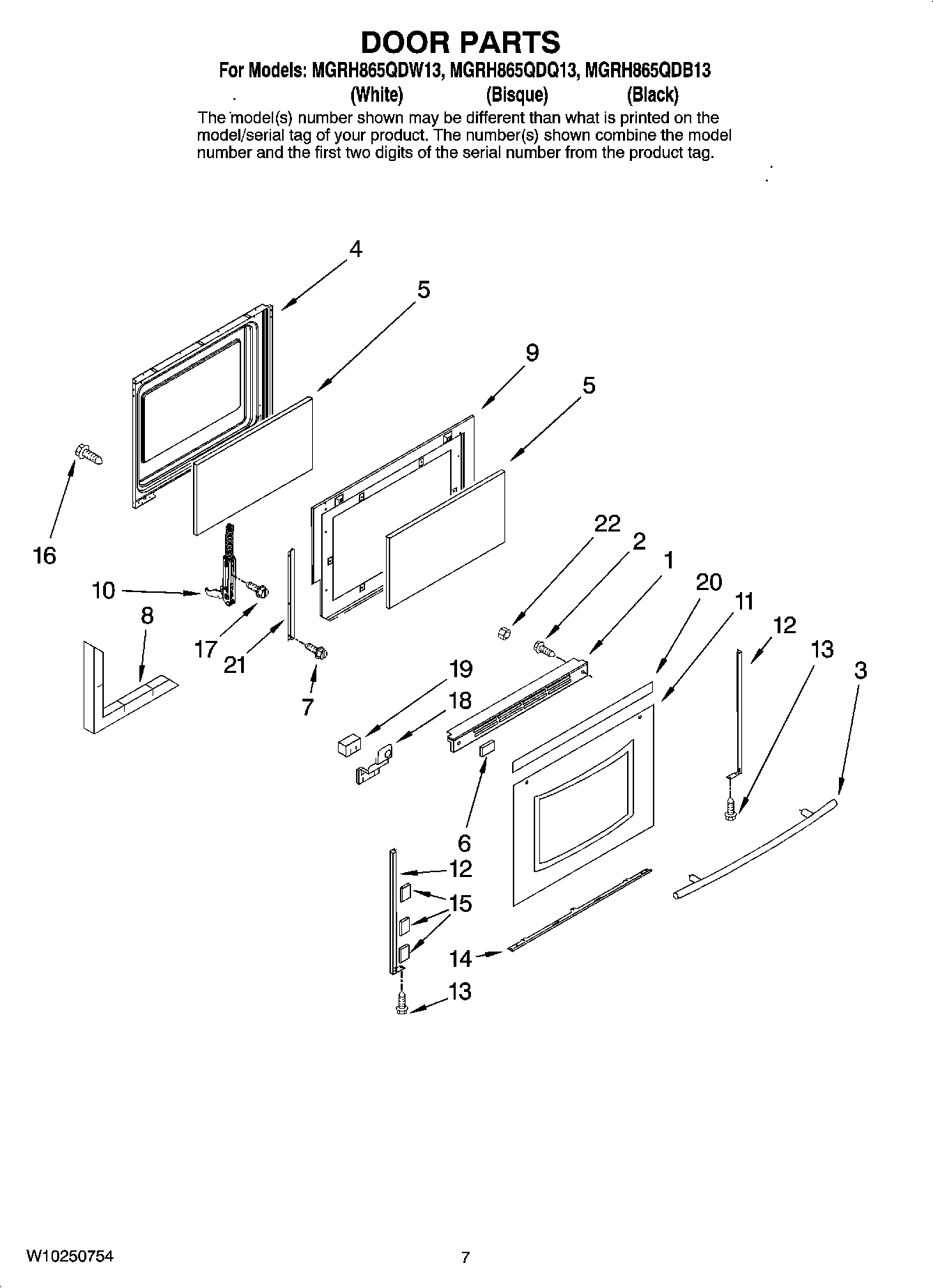

MGRH865QDB13 05 – DOOR PARTS

MGRH865QDB13 05 – DOOR PARTS

Written by

in

MGRH865QDB13 05 – DOOR PARTS

Products

PositionProduct
1MAY 3608F140-70
1MAY W10144690
1MAY 3608F140-78
2WP74009541 Whirlpool Screw Assembly
2WP98008544 Whirlpool Screw Assembly
374011777 Whirlpool Range Oven Door Handle
3WP74011675 Whirlpool Door Handle
3HANDLE, DOOR (BSQ)
4MAY 74008926
574003645 Whirlpool Range Oven Door Inner Glass
6WP74004224 Whirlpool Tape
7SCREW
8INSULATION, OVEN DOOR
9Retainer, Side
1074010546 Whirlpool Range Oven Door Hinge
11Glass, Door (Black (Order Item 15 When Replacing Door Glass))
11Glass, Door (White)
11GLASS, DOOR (BSQ)
12TRIM, SIDE (BSQ)
12MAY 74010560
12MAY 74010561
13WP98008545 Whirlpool Screw
14TRIM, BOTTOM (BLK)
14TRIM, BOTTOM (BSQ)
14WP3608F092-71 Whirlpool Bottom Trim
15WP74009014 Whirlpool Double Tape
15WP74009025 Whirlpool Double Sided Tape
16WPY706189 Whirlpool Stove Screw
17SCREW (10-24X5/16-NI)
18BRACKET, DOOR HANDLE (RT)
18BRACKET, DOOR HANDLE (LT)
19INSULATION, CORNER (DOOR)
20TAPE, FOIL (3“ WIDE)
213801F886-51 Whirlpool Mounting Bracket
22WP3400029 Whirlpool Dishwasher Nut
