MGRH865QDQ0 05 – DOOR PARTS – Aparts

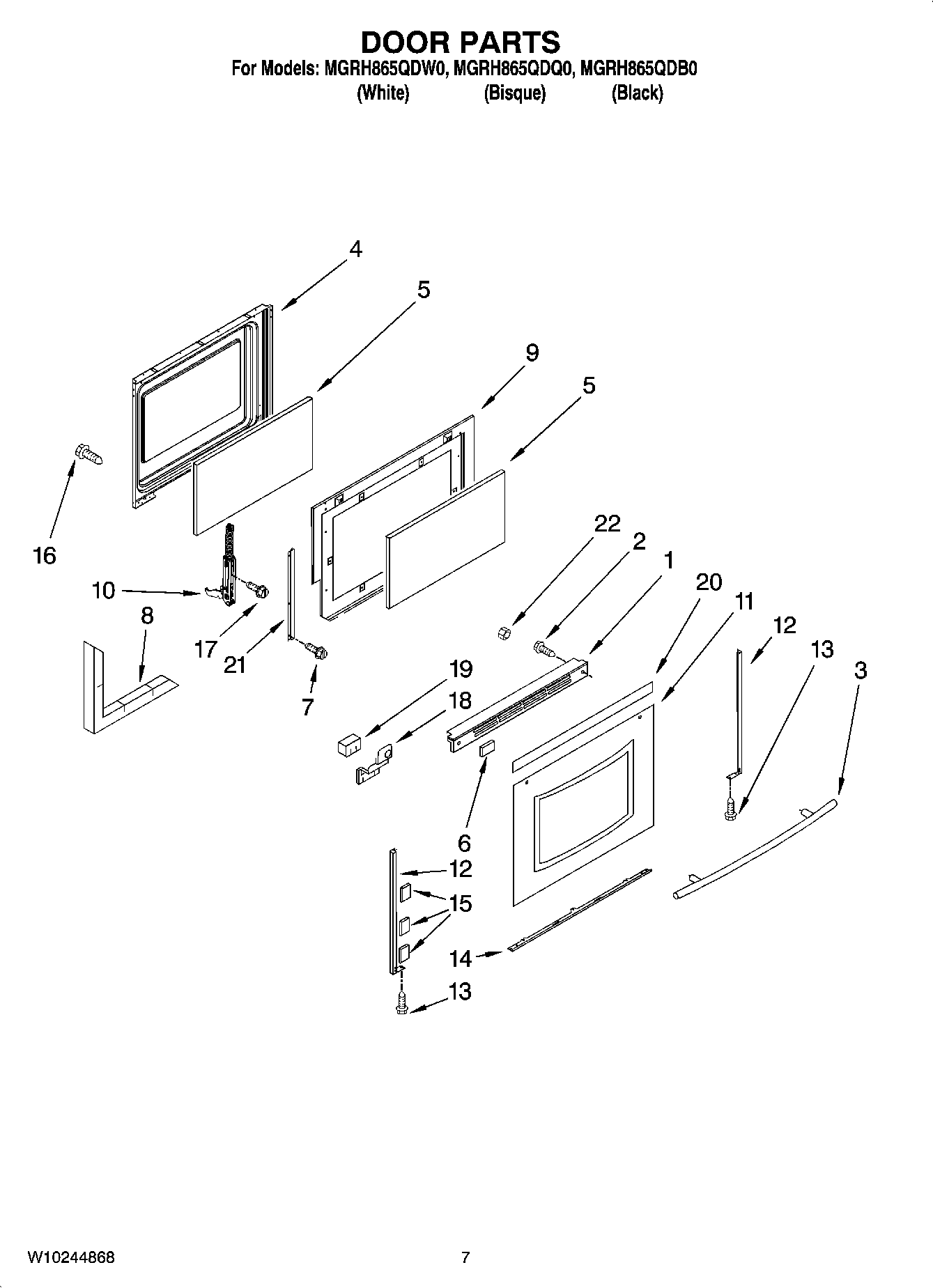

MGRH865QDQ0 05 – DOOR PARTS

Products

Position	Product
1	MAY 3608F140-78
1	MAY 3608F140-70
1	MAY 3608F140-71
2	MAY 7010P636-60
2	MAY 7101P528-60
3	MAY 7701P523-60
3	MAY 7701P524-60
3	MAY 7701P522-60
4	MAY 2402W297-19
5	Glass, Inner
6	Tape (White)
7	MAY 7101P388-60
8	MAY 7002P246-60
9	Retainer, Side
10	MAY 7106P124-60
11	MAY 7902M781-60
11	MAY 7902P791-60
11	MAY 7902M674-60
12	MAY 8270P193-60
12	MAY 3608F126-71
12	Trim, Door Side (Bisque)
13	Screw (2) (Black)
14	TRIM, DOOR BOTTOM (BISQUE)
14	MAY 3608F092-71
14	MAY 3608F092-70
15	Tape, Double Sided (White)
15	MAY W10208307
16	MAY 7101P427-60
17	SCREW (10-24X5/16-NI)
18	MAY 3801F857-45
18	MAY 3801F858-45
19	INSULATION, CORNER (DOOR)
20	TAPE, FOIL 3``
21	BRACKET, INNER GLASS
22	WP3400029 Whirlpool Dishwasher Nut
