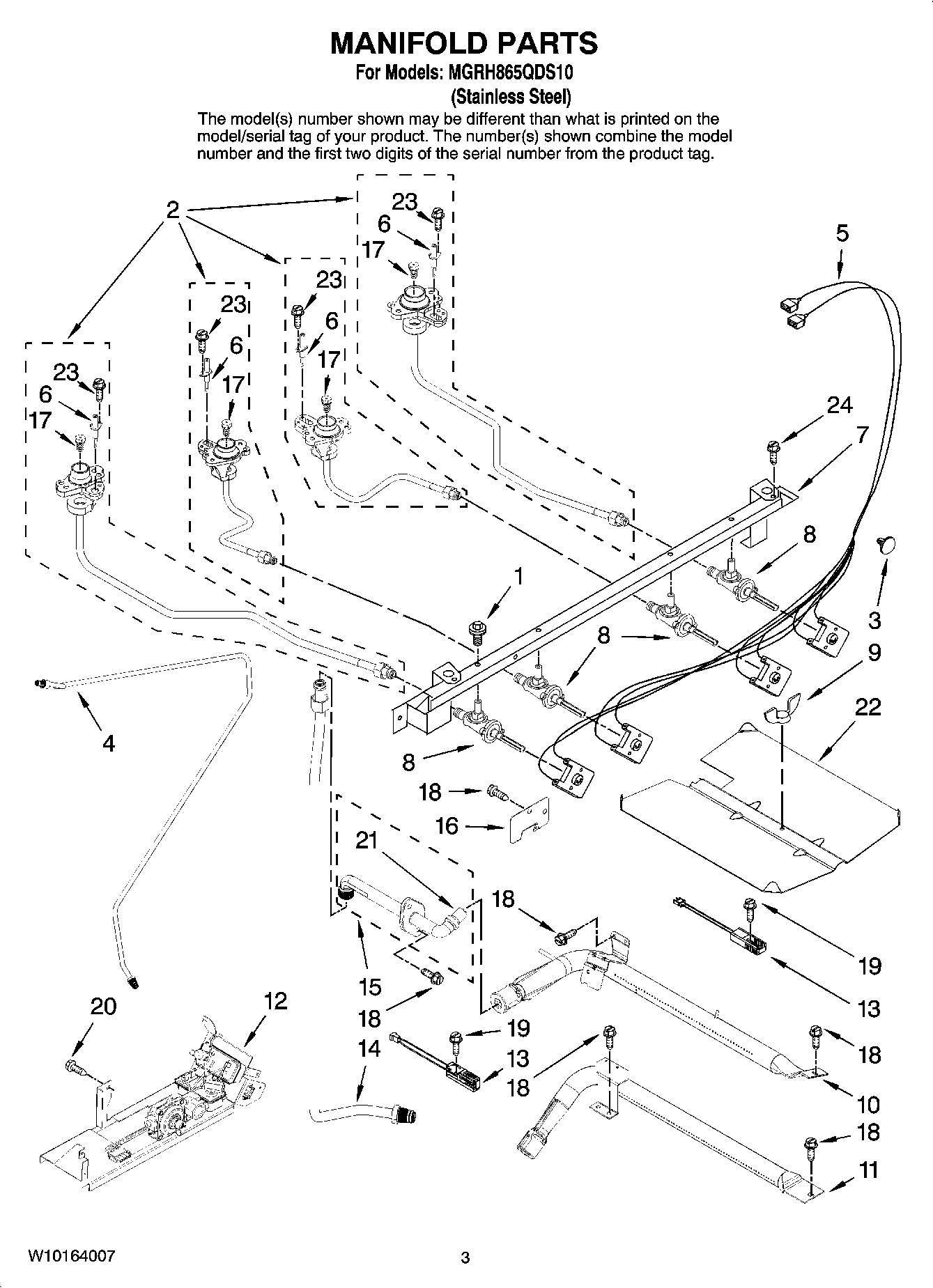

MGRH865QDS10 03 – MANIFOLD PARTS

Products

Position	Product
NI	MAY 74008871
1	WP74009857 Whirlpool Screw
2	MAY W10159266
2	ORIFICE HOLDER/TUB ASSY (RR)
2	MAY 7527P098-60
2	WP74009099 Whirlpool Orifice Holder
3	74008761 Whirlpool Spacer Snap-In
4	TUBING, SUPPLY
5	WP74010630 Whirlpool Switch Harness
6	WP74009958 Whirlpool Spark Electrode Assembly
7	MAY W10138349
8	VALVE, 12K (COPRECI)
8	VALVE, BURNER (5K COPRECI)
8	VALVE, 16K (COPRECI)
9	Nut
10	BURNER, BROIL
11	MAY 31945701
12	VALVE/REGULATOR ASSEMBLY
13	WP7432P136-60 Whirlpool Oven Igniter
13	74007498 Whirlpool Range Flat Igniter
14	74008830 Whirlpool Oven Broil Tubing
15	74008818 Whirlpool Broil Burner Fitting
16	MAY 4005F421-45
17	MAY W10156137
17	MAY W10156836
17	MAY W10156136
18	SCREW
19	SCREW (10-24X5/16-NI)
20	SCREW, GROUND (GRN)
21	MAY 74008834
22	MAY W10156134
23	MAY 8273062
24	MAY 74010138
