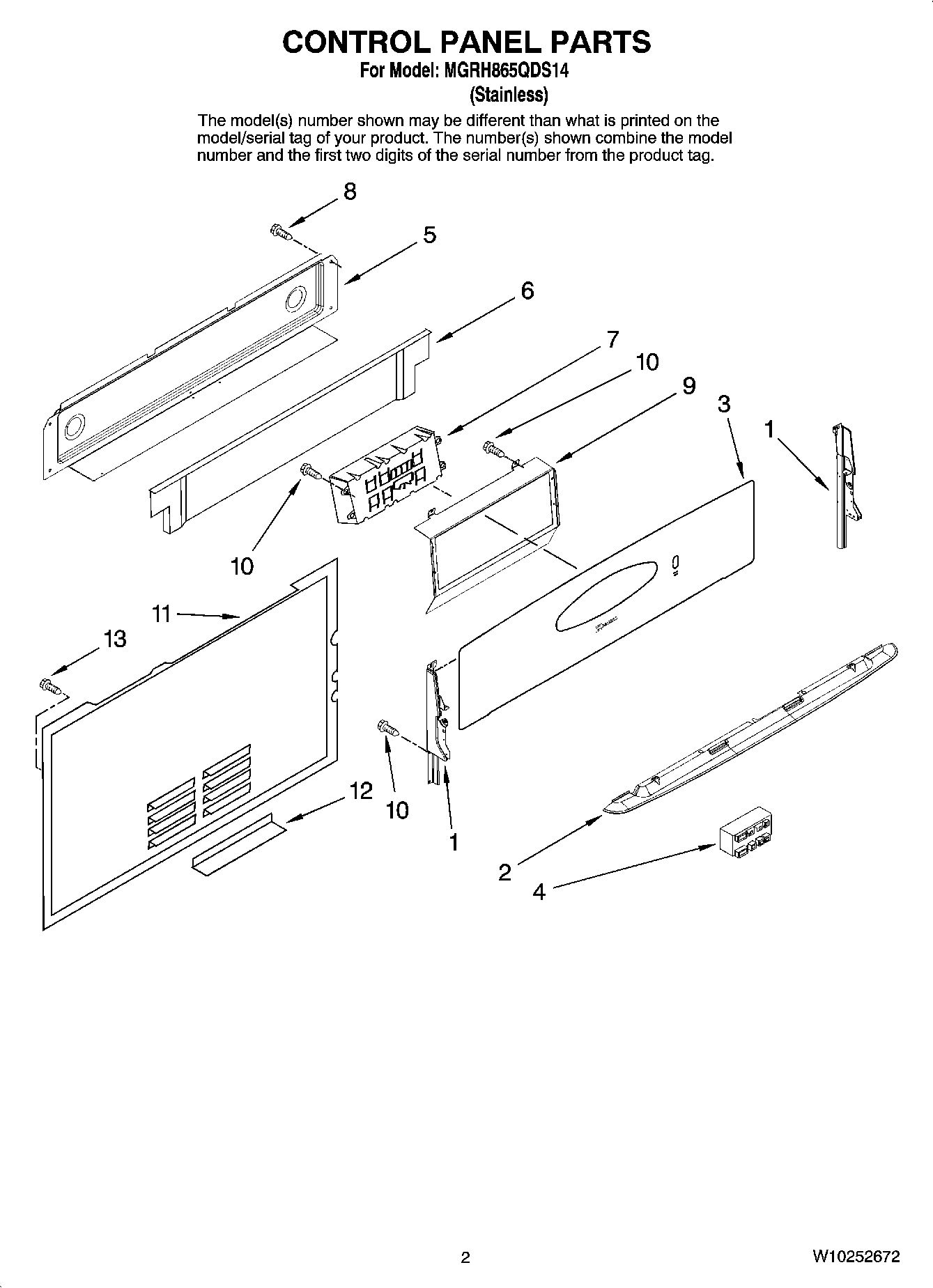

MGRH865QDS14 02 – CONTROL PANEL PARTS

MGRH865QDS14 02 – CONTROL PANEL PARTS

Written by

in

MGRH865QDS14 02 – CONTROL PANEL PARTS

Products

PositionProduct
NIMAY 74009093
1End Cap (Left Black)
1End Cap (Right Black)
2MAY 74009202
3MAY 74010803
474008821 Whirlpool Spark Module
5COVER, REAR WIRE
6MAY 74009444
7MAY W10141396
8SCREW
9BRACKET, CLOCK
10WP74003976 Whirlpool Screw
11COVER, MAIN WIRE (GAS)
12BOTTOM, REAR COVER
13MAY 71001394
