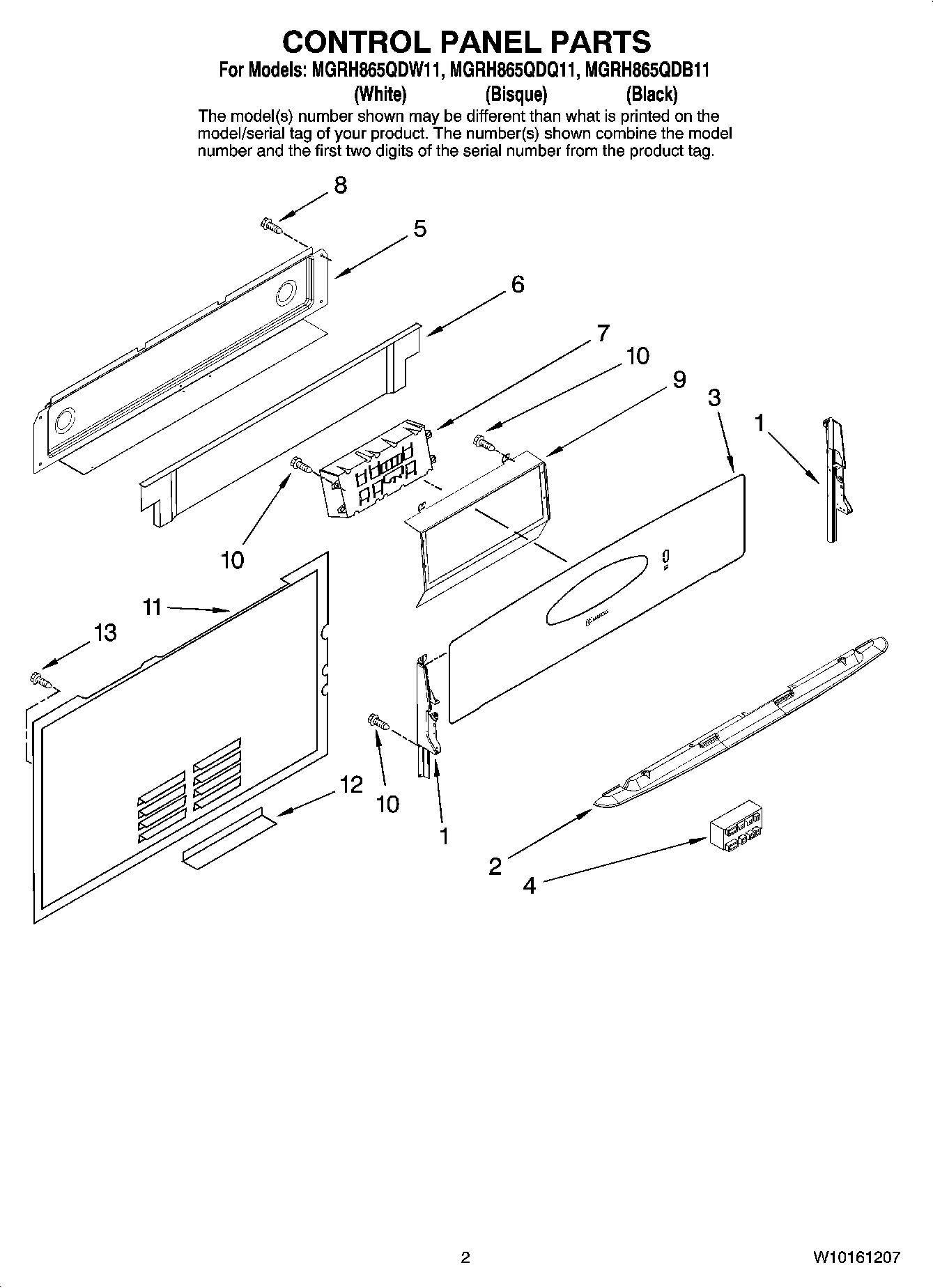

MGRH865QDW11 02 – CONTROL PANEL PARTS
Written by
in
MGRH865QDW11 02 – CONTROL PANEL PARTS
Products
Position
Product
1
Latch Assembly
1
END CAP (RT-WHT)
1
END CAP (RT-BSQ)
1
END CAP (LT-BSQ)
1
End Cap (Right Black)
1
End Cap (Left Black)
2
SHIELD, HEAT VISOR (BSQ)
2
MAY 74009202
2
MAY 74009203
3
PANEL, BACKGUARD (WHT)
3
PANEL, BACKGUARD (BLK)
3
SWITCH, INFINITE
4
74008821 Whirlpool Spark Module
5
COVER, REAR WIRE
6
MAY 74009444
7
MAY W10141396
7
MAY W10145166
7
MAY W10145167
8
SCREW
9
BRACKET, CLOCK
10
WP74003976 Whirlpool Screw
11
COVER, MAIN WIRE (GAS)
12
BOTTOM, REAR COVER
13
MAY 71001394
←
