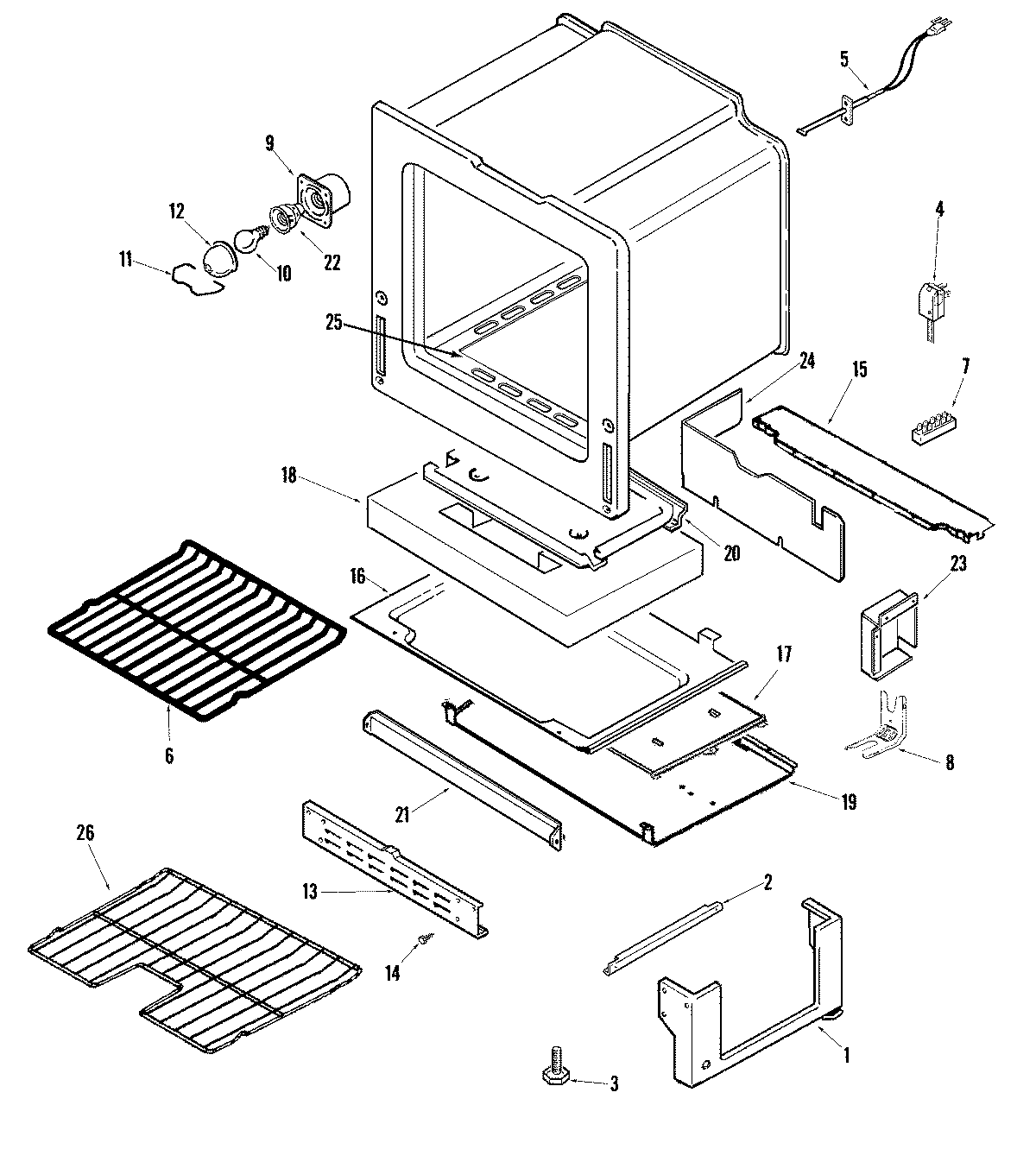

MGRL752BDB 05 – OVEN/BASE

MGRL752BDB 05 – OVEN/BASE

Written by

in

MGRL752BDB 05 – OVEN/BASE

Products

PositionProduct
1MAY 74005772
274005230 Whirlpool Oven Lock Nut (8-32)
2RUNNER, DRAWER
3W11665456 Whirlpool Range Level Foot
4MAY 74007556
512001655 Whirlpool Oven Sensor
6WPW10282492 Whirlpool Oven Rack
7MAY 7401P037-60
8WP3801F656-51 Whirlpool Range Anti-Tip Bracket
8WP7101P485-60 Whirlpool Anchor Tip
9MAY 74003388
10RANGE ONLY 40W 120V APPL BULB
11MAY 74003391
123601F373-51 Whirlpool Baffle
12MAY 74003389
12MAY 74009502
13INSULATION, OVEN DOOR
13MAY 4020F001-80
14NUT, SNAP (ROUND-BLK)
14LINING, DOOR
14MAY 74003642
15SCREW
15GASKT-DOOR OVEN
16PANEL, DRAWER (BLK)
17WP98008545 Whirlpool Screw
18WPW10131078 Whirlpool Nut Assembly
20MAY 74008337
21WP74005546 Whirlpool RU Spacer
22SCREW, 8 X 1/2
22FRAME, GLASS
223801F886-51 Whirlpool Mounting Bracket
23WP74004078 Whirlpool Door Roller
24SHAFT, STORAGE DRAWER ROLLER
26LINING, DRAWER PANEL
