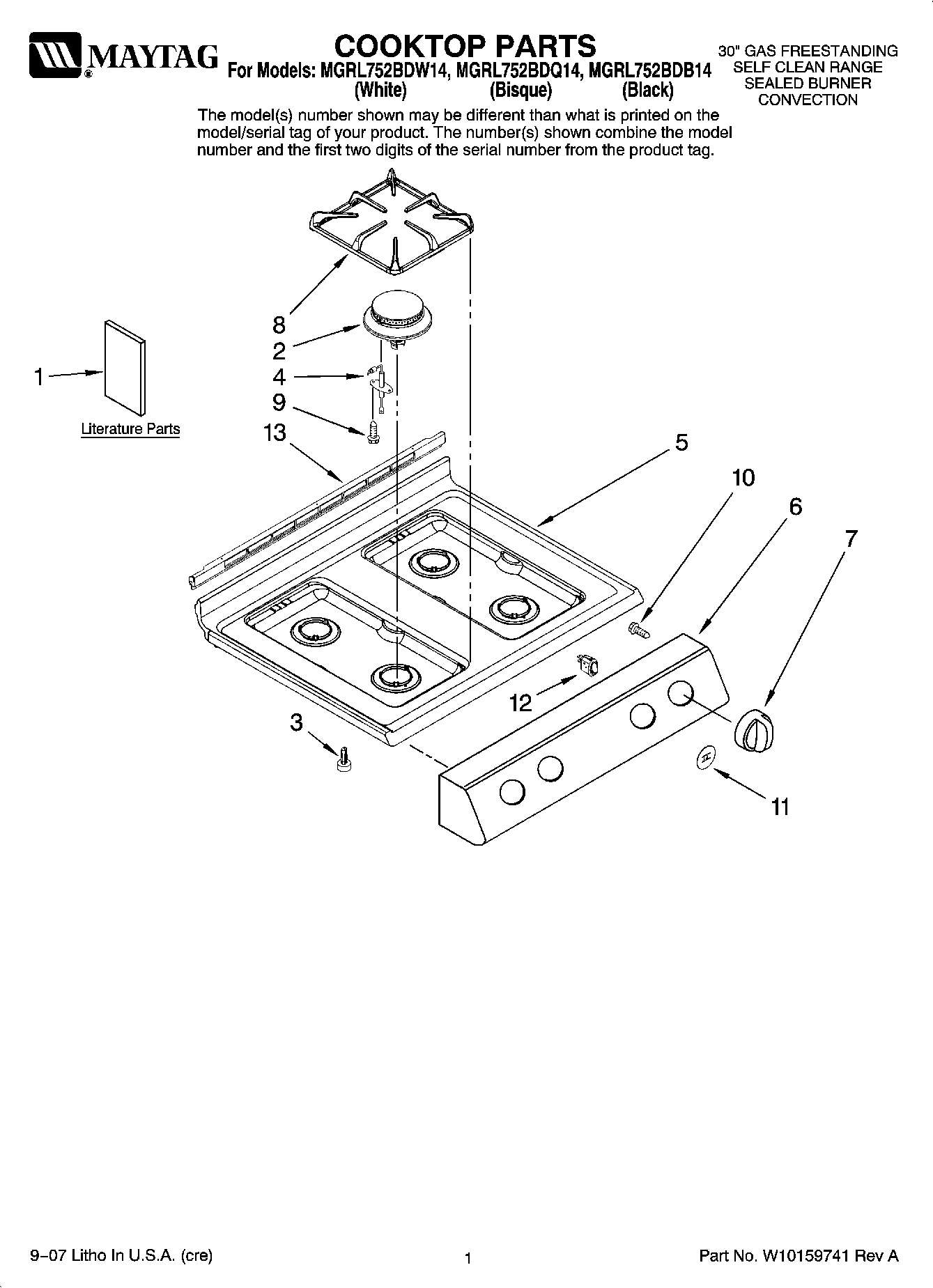

MGRL752BDQ14 01 – COOKTOP PARTS

Products

Position	Product
1	MAY W10163640
1	MAY W10163167
2	WP3412D024-09 Whirlpool Oven Burner Head
2	MAY 74003966
2	WP3412D021-26 Whirlpool Burner
2	WP3412D021-09 Whirlpool Burner Assembly
2	WP3412D024-26 Whirlpool Oven Surface Burner Head
3	W11189172 Whirlpool Glide Drawer
4	74004053 Whirlpool Range Cooktop Top Burner Electrode Spark Igniter
4	MAY 74004410
5	MAY 74003047
5	MAY 74004964
5	MAY 74003512
6	MAY 74009829
6	MAY 74009830
6	MAY 74009827
7	74009774 Whirlpool Oven Knob Bisque
7	WP74009775 Whirlpool Burner Knob
7	KNOB (BLK)
8	MAY 74005301
8	MAY 74001769
8	MAY 74003116
9	WP59002061 Whirlpool Microwave Screw
10	SCREW
11	MAY 74009846
12	7403P985-60 Whirlpool Rocker Switch (Black)
13	MAY 74009795
13	MAY 74009797
13	MAY 74009796
