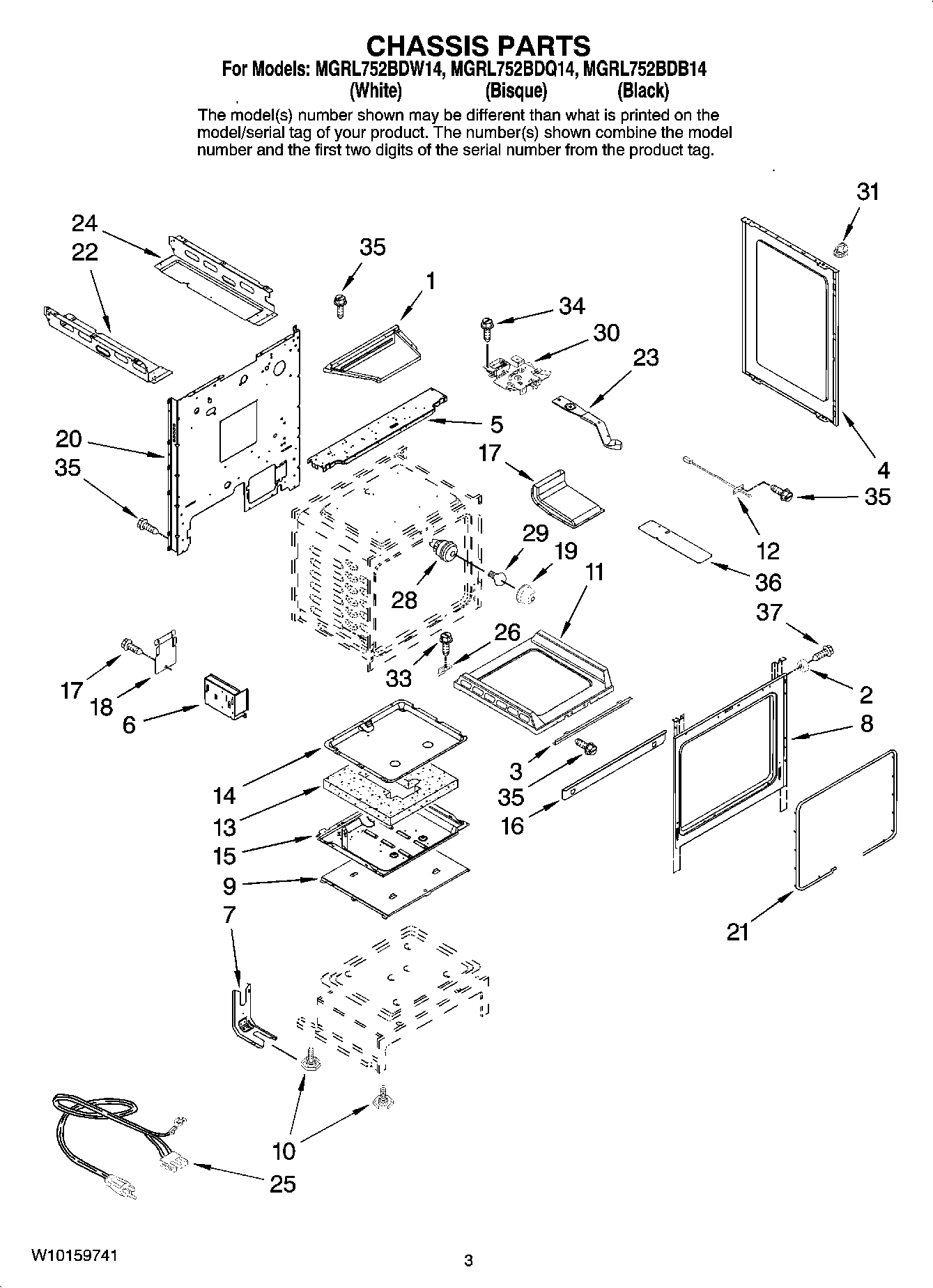

MGRL752BDQ14 03 – CHASSIS PARTS

Products

Position	Product
NI	INSULATION, DRAWER & SHIELD
NI	MAY 74009201
NI	WP74010942 Whirlpool Insulation
1	MAY 4022W007-19
3	MAY 8004P024-60
4	MAY 74003283
4	MAY 74004965
4	MAY 74003236
5	SUPPORT, VALVE REGULATOR
6	MAY 74009853
7	WP3801F656-51 Whirlpool Range Anti-Tip Bracket
9	MAY 74006574
10	W11665456 Whirlpool Range Level Foot
11	MAY 74011228
12	12001655 Whirlpool Oven Sensor
13	MAY 74003503
14	PAN, BAKE BURNER
15	RETAINER, BOTTOM INSULATION
16	BAFFLE, OVEN FRONT
17	MAY 74006420
18	COVER, BROIL ACCESS FITTING
19	MAY 74003389
20	MAY 74009884
21	GASKT-DOOR OVEN
22	MAY 74009767
23	MAY 74010244
24	MAY 74009768
25	MAY 74009826
26	MAY 74010812
28	MAY 74003387
29	RANGE ONLY 40W 120V APPL BULB
30	MAY 74009764
31	SPACER, MAIN TOP (RT)
31	SPACER, MAIN TOP (LT)
33	WP74003976 Whirlpool Screw
34	74003975 Whirlpool Screw P1 (8ABX3/8-BLK)
35	SCREW
36	MAY 74009569
37	MAY 74007476
