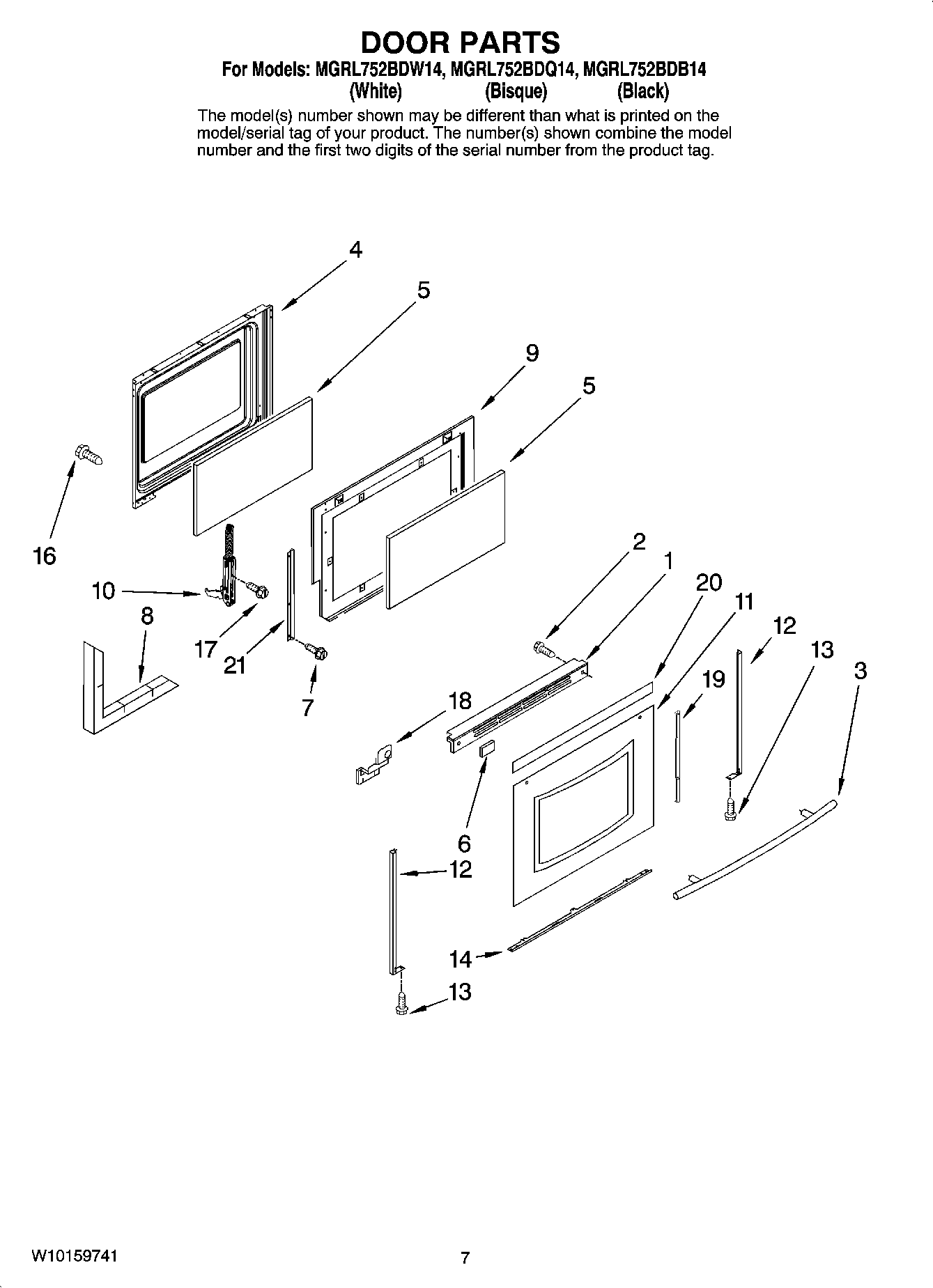

MGRL752BDQ14 05 – DOOR PARTS

MGRL752BDQ14 05 – DOOR PARTS

Written by

in

MGRL752BDQ14 05 – DOOR PARTS

Products

PositionProduct
1MAY 74009689
1MAY 74009691
1WP3608F141-71 Whirlpool Door Trim
374011777 Whirlpool Range Oven Door Handle
3HANDLE, DOOR (BSQ)
3WP74011675 Whirlpool Door Handle
4LINING, DOOR
574003645 Whirlpool Range Oven Door Inner Glass
6WP74004224 Whirlpool Tape
8INSULATION, OVEN DOOR
93601F373-51 Whirlpool Baffle
1074010546 Whirlpool Range Oven Door Hinge
1112002397 Whirlpool Oven Door Glass Kit (Bisque)
11MAY 12002396
11MAY 12002395
12WP3608F117-71 Whirlpool Door Trim
12WP3608F116-71 Whirlpool Door Trim
12TRIM, DOOR (BSQ-LT)
12WP3608F117-70 Whirlpool Door Trim
12WP3608F116-70 Whirlpool Door Trim
12TRIM, DOOR (BSQ-RT)
13MAY 7101P356-60
14SUPPORT, GLASS (BSQ)
14WP3807F708-71 Whirlpool Support
14SUPPORT, GLASS (BLK)
16SCREW
17SCREW (10-24X5/16-NI)
183801F831-45 Whirlpool Bracket Assembly
183801F832-45 Whirlpool Bracket
19SPACER, RUBBER (BLK-SQUARE)
19MAY 74003650
19SCREW (10ABX1/4P TR ZN)
20TAPE, FOIL 29“ X 2“
213801F886-51 Whirlpool Mounting Bracket
