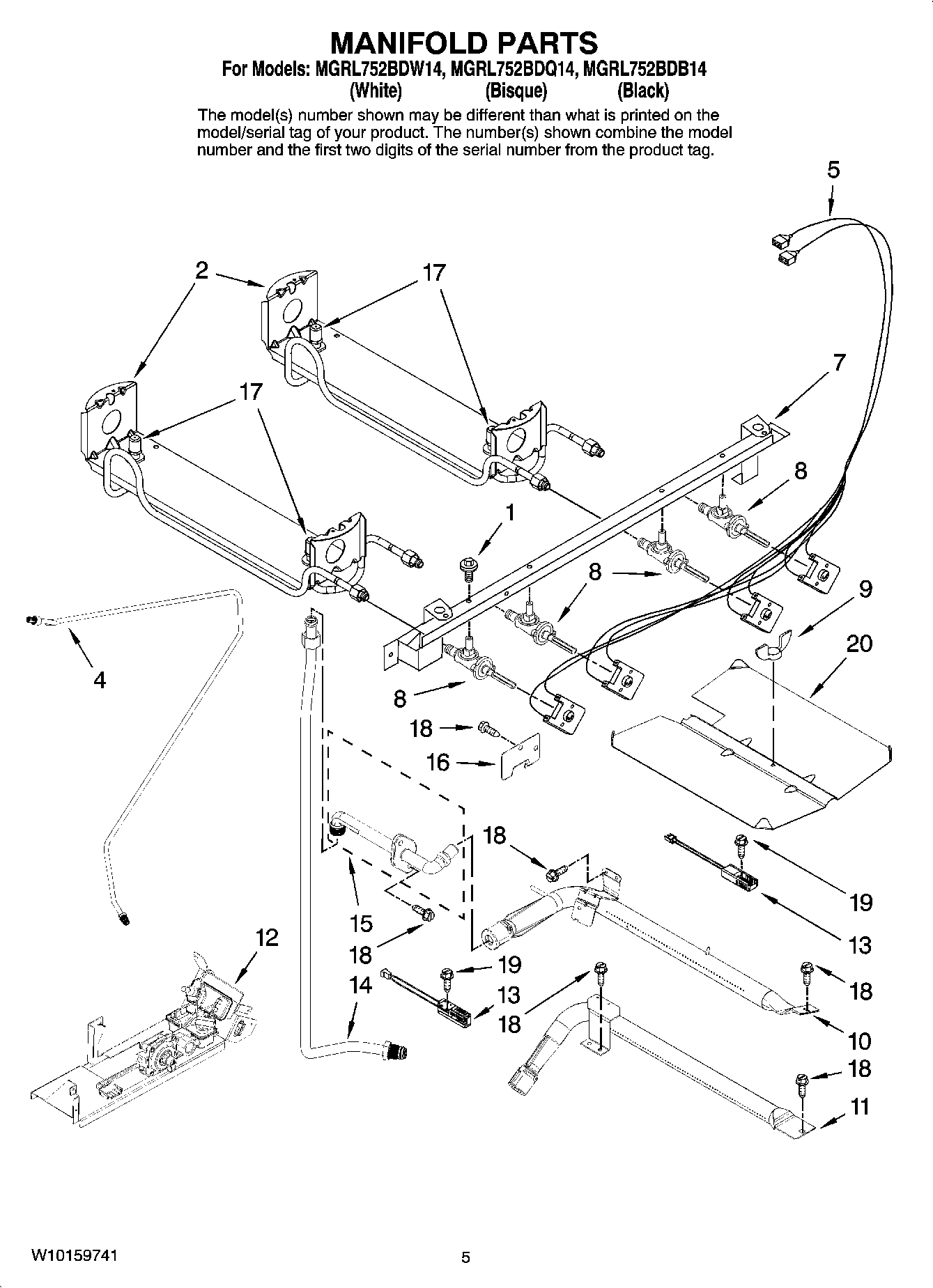

MGRL752BDW14 04 – MANIFOLD PARTS

Products

Position	Product
NI	MAY 74008871
1	MAY 74009416
2	MAY 740107939
2	WP5787D104-60 Whirlpool Orifice
4	MAY 74009766
5	MAY 74009769
7	MAY 74010271
8	MAY 74009462
8	MAY 74009770
9	Nut
10	MAY 74004076
11	MAY 74003960
12	MAY 12002227
13	74007498 Whirlpool Range Flat Igniter
14	MAY 74006430
15	MAY 74009765
16	MAY 4005F421-45
17	MAY 74010724
17	MAY 74010723
17	MAY 74010720
17	MAY 74010719
18	SCREW
19	SCREW (10-24X5/16-NI)
20	MAY W10156134
