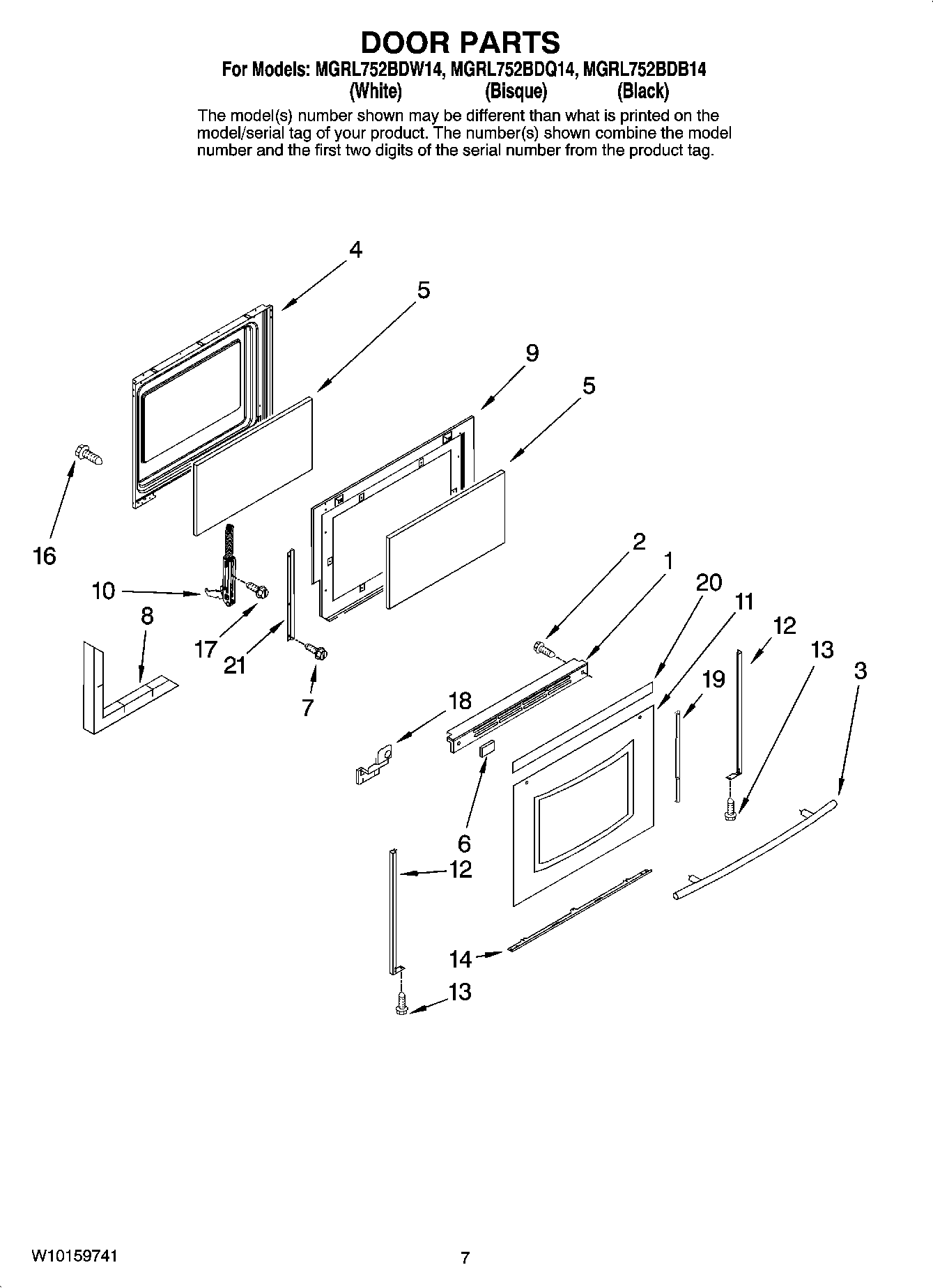

MGRL752BDW14 05 – DOOR PARTS

Products

Position	Product
1	MAY 74009689
1	MAY 74009691
1	WP3608F141-71 Whirlpool Door Trim
3	74011777 Whirlpool Range Oven Door Handle
3	HANDLE, DOOR (BSQ)
3	WP74011675 Whirlpool Door Handle
4	LINING, DOOR
5	74003645 Whirlpool Range Oven Door Inner Glass
6	WP74004224 Whirlpool Tape
8	INSULATION, OVEN DOOR
9	3601F373-51 Whirlpool Baffle
10	74010546 Whirlpool Range Oven Door Hinge
11	12002397 Whirlpool Oven Door Glass Kit (Bisque)
11	MAY 12002396
11	MAY 12002395
12	WP3608F117-71 Whirlpool Door Trim
12	WP3608F116-71 Whirlpool Door Trim
12	TRIM, DOOR (BSQ-LT)
12	WP3608F117-70 Whirlpool Door Trim
12	WP3608F116-70 Whirlpool Door Trim
12	TRIM, DOOR (BSQ-RT)
13	MAY 7101P356-60
14	SUPPORT, GLASS (BSQ)
14	WP3807F708-71 Whirlpool Support
14	SUPPORT, GLASS (BLK)
16	SCREW
17	SCREW (10-24X5/16-NI)
18	3801F831-45 Whirlpool Bracket Assembly
18	3801F832-45 Whirlpool Bracket
19	SPACER, RUBBER (BLK-SQUARE)
19	MAY 74003650
19	SCREW (10ABX1/4P TR ZN)
20	TAPE, FOIL 29`` X 2``
21	3801F886-51 Whirlpool Mounting Bracket
