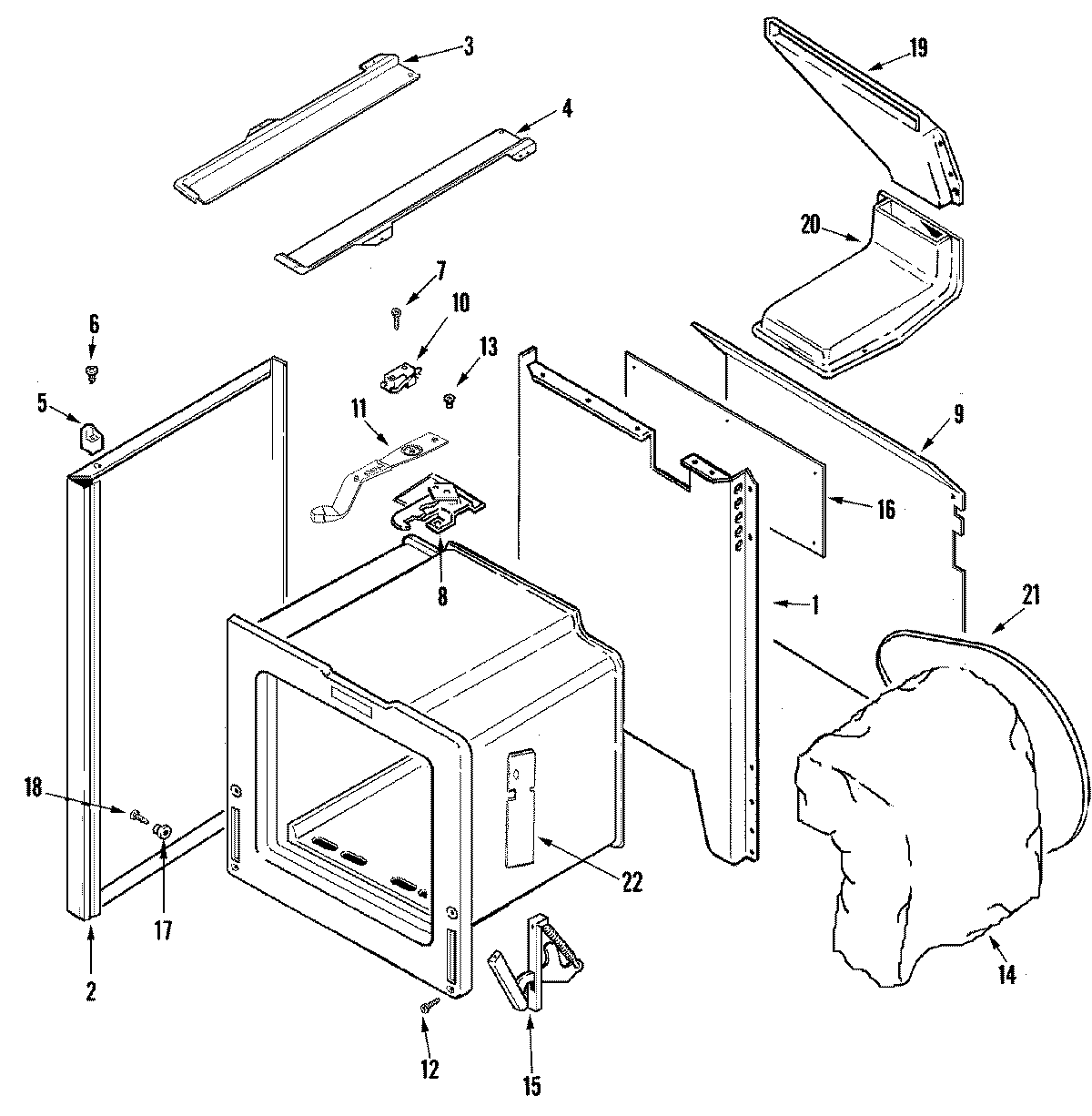

| 1 | GROMMET |
| 1 | CLIP, WIRE LOCK |
| 1 | MAY 74009884 |
| 2 | MAY 71001394 |
| 2 | TAPE, FOIL (3`` WIDE) |
| 2 | MAY 74003283 |
| 3 | MAY 74009768 |
| 4 | MAY 74009767 |
| 5 | SPACER, MAIN TOP (RT) |
| 5 | SPACER, MAIN TOP (LT) |
| 7 | MAY 7101P330-60 |
| 8 | MAY 74009764 |
| 8 | 74003975 Whirlpool Screw P1 (8ABX3/8-BLK) |
| 9 | MAY 74009654 |
| 10 | MAY 74009591 |
| 11 | MAY 74003005 |
| 12 | SCREW (10-24X5/16-NI) |
| 13 | SCREW, LEVER |
| 14 | WP74010942 Whirlpool Insulation |
| 14 | MAY 74009201 |
| 15 | 74011142 Whirlpool Stove Range Oven Door Hinge and Spring |
| 16 | MAY 3604F165-51 |
| 17 | MAY 8004P024-60 |
| 18 | MAY 74007476 |
| 18 | SCREW |
| 19 | MAY 4022W007-19 |
| 19 | SCREW (8BX3/8-NI) |
| 20 | MAY 74006420 |
| 20 | WP74003976 Whirlpool Screw |
| 21 | MAY 74003385 |
| 22 | MAY 74009569 |
