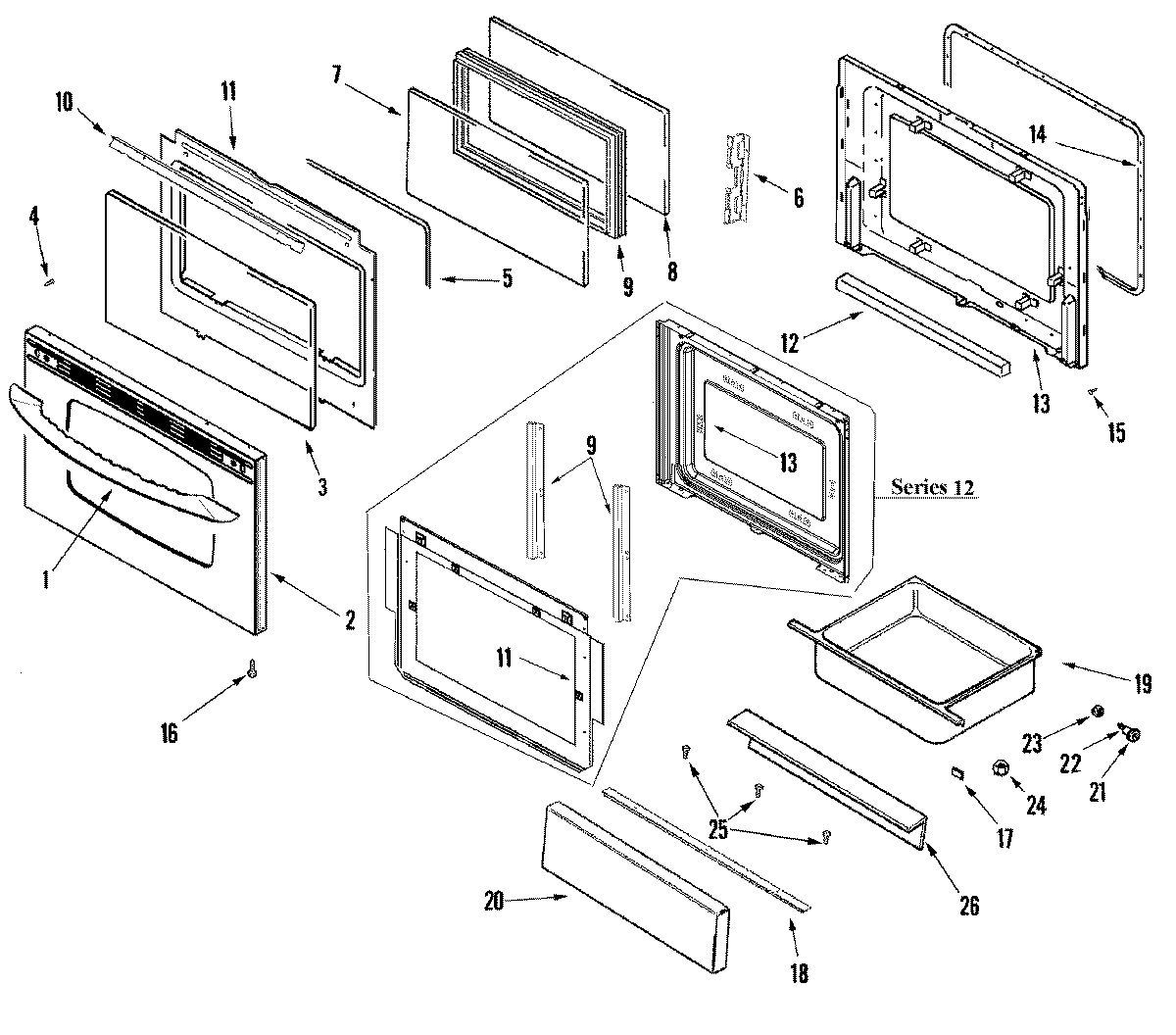

MGRL753BDS 03 – DOOR/DRAWER (STL)

MGRL753BDS 03 – DOOR/DRAWER (STL)

Written by

in

MGRL753BDS 03 – DOOR/DRAWER (STL)

Products

PositionProduct
174011777 Whirlpool Range Oven Door Handle
2MAY 74010232
2NUT, SNAP (ROUND-BLK)
2MAY 74010233
3MAY 74010042
4WP74006515 Whirlpool Washer Screw
4MAY 74011772
5WP74009029 Whirlpool Door Gasket
6MAY 74010041
7GLASS, DOOR (INNER/COATED)
874003645 Whirlpool Range Oven Door Inner Glass
9SCREW, 8 X 1/2
9FRAME, GLASS
93801F886-51 Whirlpool Mounting Bracket
10MAY 74010040
113601F373-51 Whirlpool Baffle
11MAY 74009502
12INSULATION, OVEN DOOR
13MAY 74003642
13LINING, DOOR
14GASKT-DOOR OVEN
17WP74005546 Whirlpool RU Spacer
18Handle, Drawer (STL)
18HANDLE, DRAWER (STL)
19SCREW
19MAY 74008337
20PANEL, DRAWER GAS (STL)
20MAY 74009840
21WP74004078 Whirlpool Door Roller
22SHAFT, STORAGE DRAWER ROLLER
23WP488130 Whirlpool Air Conditioner Nut
24WPW10131078 Whirlpool Nut Assembly
26LINING, DRAWER PANEL
