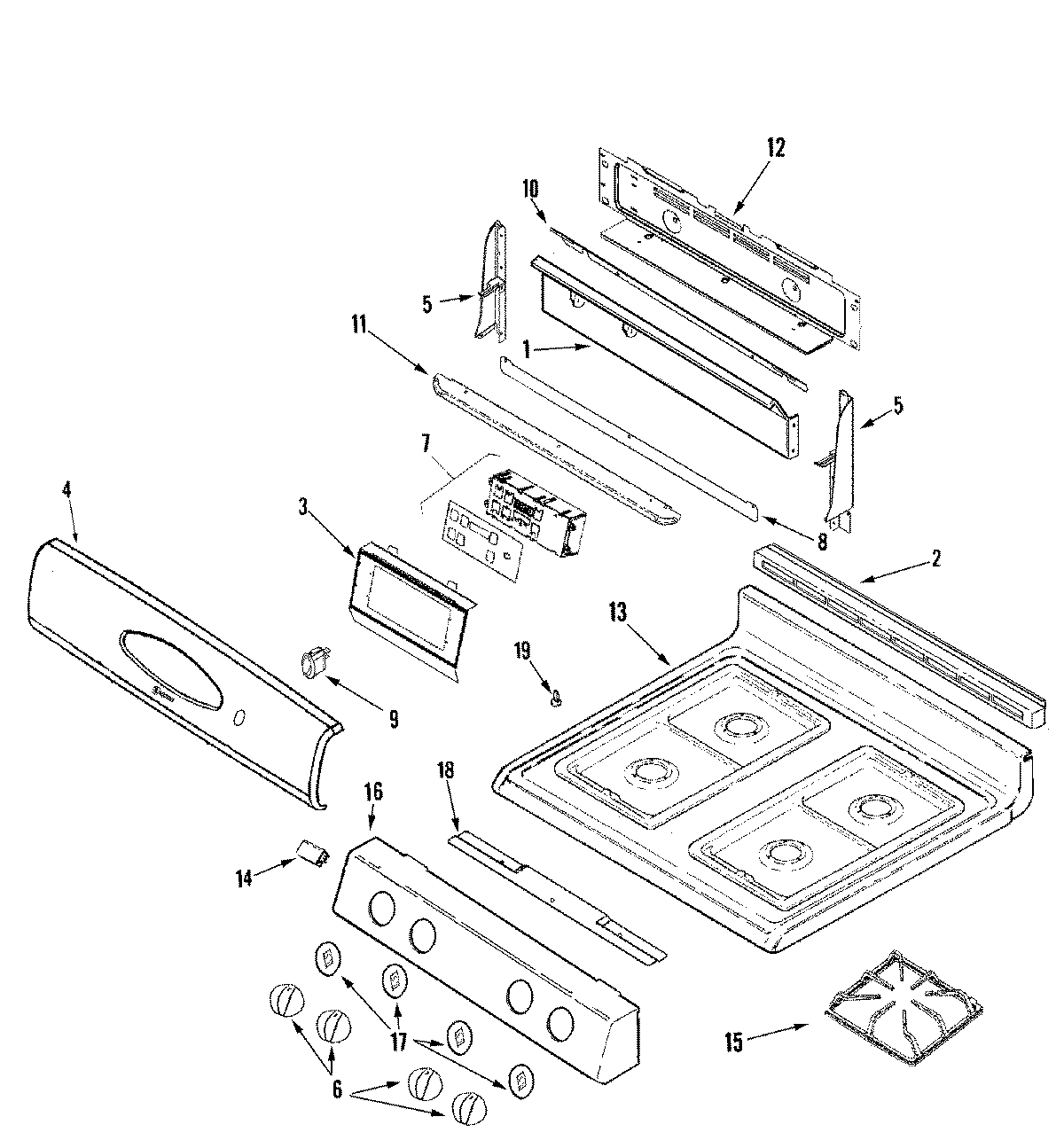

MGRM752BDQ 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1SCREW (8BX3/8-NI)
1MAY 74009779
2MAY 74009797
2SCREW (10ABX1/4P TR ZN)
3BRACKET, CLOCK
4MAY 74009110
4MAY 74009093
5MAY 74010712
5MAY 74010714
5WP74009541 Whirlpool Screw Assembly
6WP74009775 Whirlpool Burner Knob
6NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
75701M754-60 Whirlpool Electronic Control Board
7WP74003976 Whirlpool Screw
8MAY 74009780
97403P984-60 Whirlpool RO Switch
10SCREW
10MAY 74009978
11MAY 74009798
11MAY 74009803
12MAY 74006536
12WP90767 Whirlpool Screw
12COVER, REAR WIRE
12MAY 71001394
13MAY 74004964
13WP74005546 Whirlpool RU Spacer
14MAY 74004827
15MAY 74001769
16MAY 74009830
17MAY 74009846
18MAY 74002447
19W11189172 Whirlpool Glide Drawer
