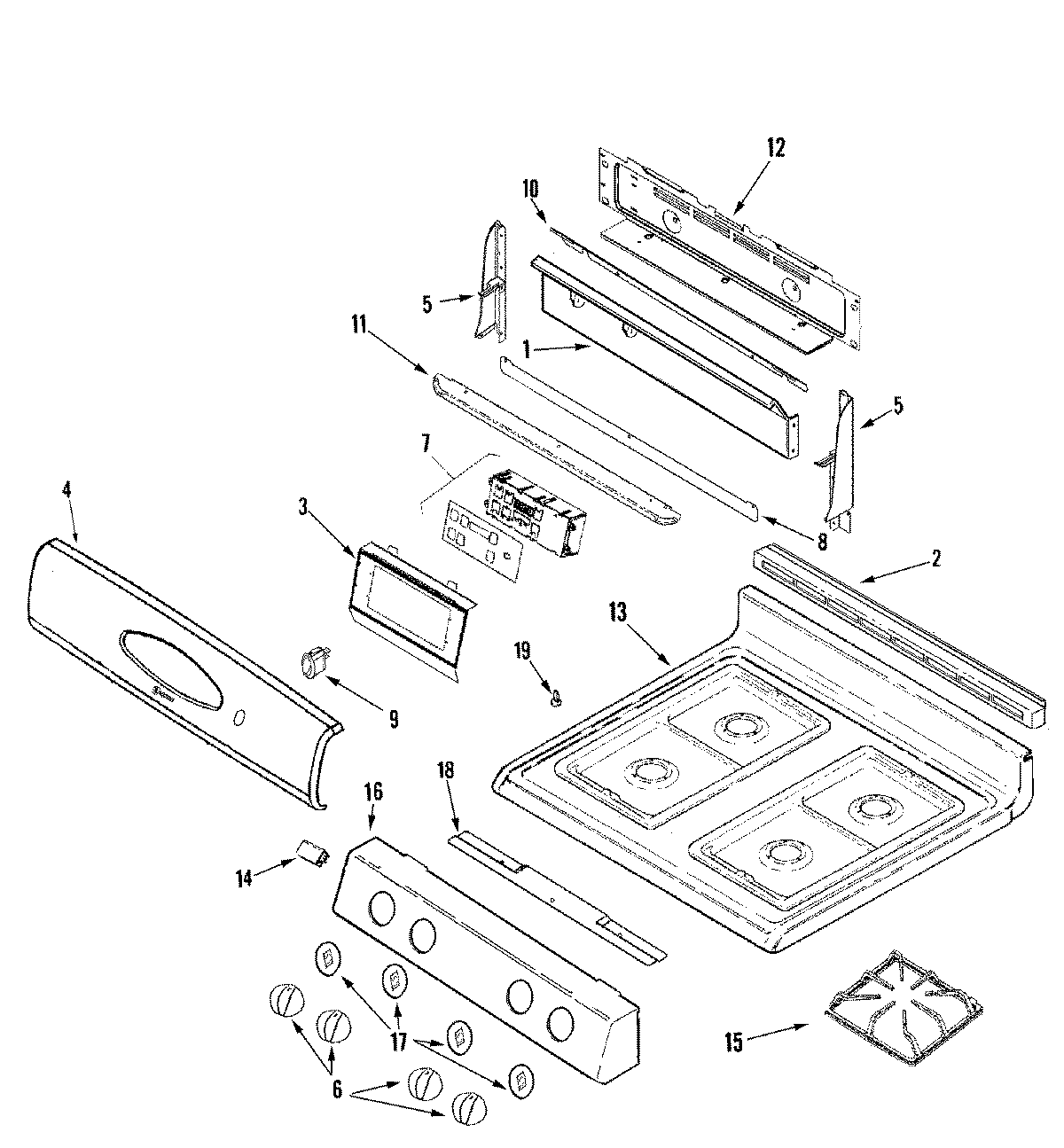

MGRM752BDS 02 – CONTROL PANEL/TOP ASSEMBLY

MGRM752BDS 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

MGRM752BDS 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1SCREW (8BX3/8-NI)
1MAY 74009779
2MAY 74009797
2SCREW (10ABX1/4P TR ZN)
3BRACKET, CLOCK
4MAY 74010455
4MAY 74009108
4MAY 74009093
5MAY 74010201
5WP98008545 Whirlpool Screw
5MAY 74010202
6KNOB (BLK)
6NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
75701M754-60 Whirlpool Electronic Control Board
7WP74003976 Whirlpool Screw
8MAY 74009780
97403P985-60 Whirlpool Rocker Switch (Black)
10SCREW
10MAY 74009978
11MAY 74009801
11MAY 74009800
12MAY 71001394
12MAY 74006536
12COVER, REAR WIRE
12WP90767 Whirlpool Screw
13MAY 71003047
13WP74005546 Whirlpool RU Spacer
14MAY 74004827
15MAY 74001769
16MAY 74009827
17MAY 74009846
18MAY 74002447
19W11189172 Whirlpool Glide Drawer
