MGS5752BDS20 05 – DOOR PARTS – Aparts

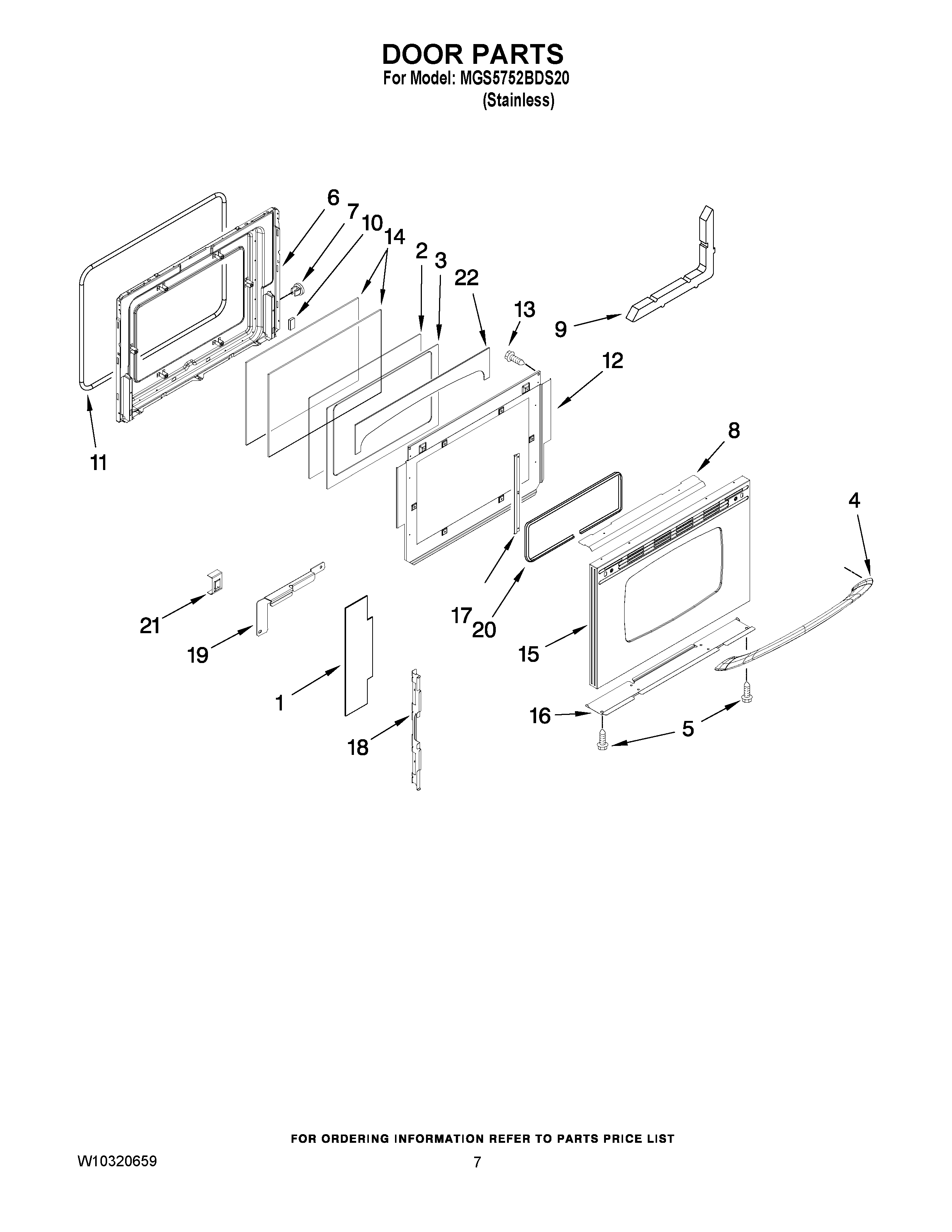

MGS5752BDS20 05 – DOOR PARTS

Products

Position	Product
1	INSULATION, FOIL
2	GLASS, INNER COATED
3	MAY 7902P752-60
4	HANDLE, DOOR (STAINLESS)
5	Screw (2) (Black)
6	MAY 2402W312-19
7	MAY 7103P141-60
8	MAY 3604F418-51
9	MAY 7002P246-60
10	MAY 8010P130-60
11	MAY W10162384
12	MAY 3601F373-51
13	MAY 7101P426- 60
14	Glass, Inner
15	PANEL, OUTER DOOR (STAINLESS)
16	RETAINER, GLASS (LOWER)
17	BRACKET, INNER GLASS
18	RETAINER, GLASS SUPPORT
19	MAY 3804F308-51
19	MAY 3804F307-51
20	MAY 7201P141-60
21	CLIP, DOOR
22	MAY 7002P403-60
