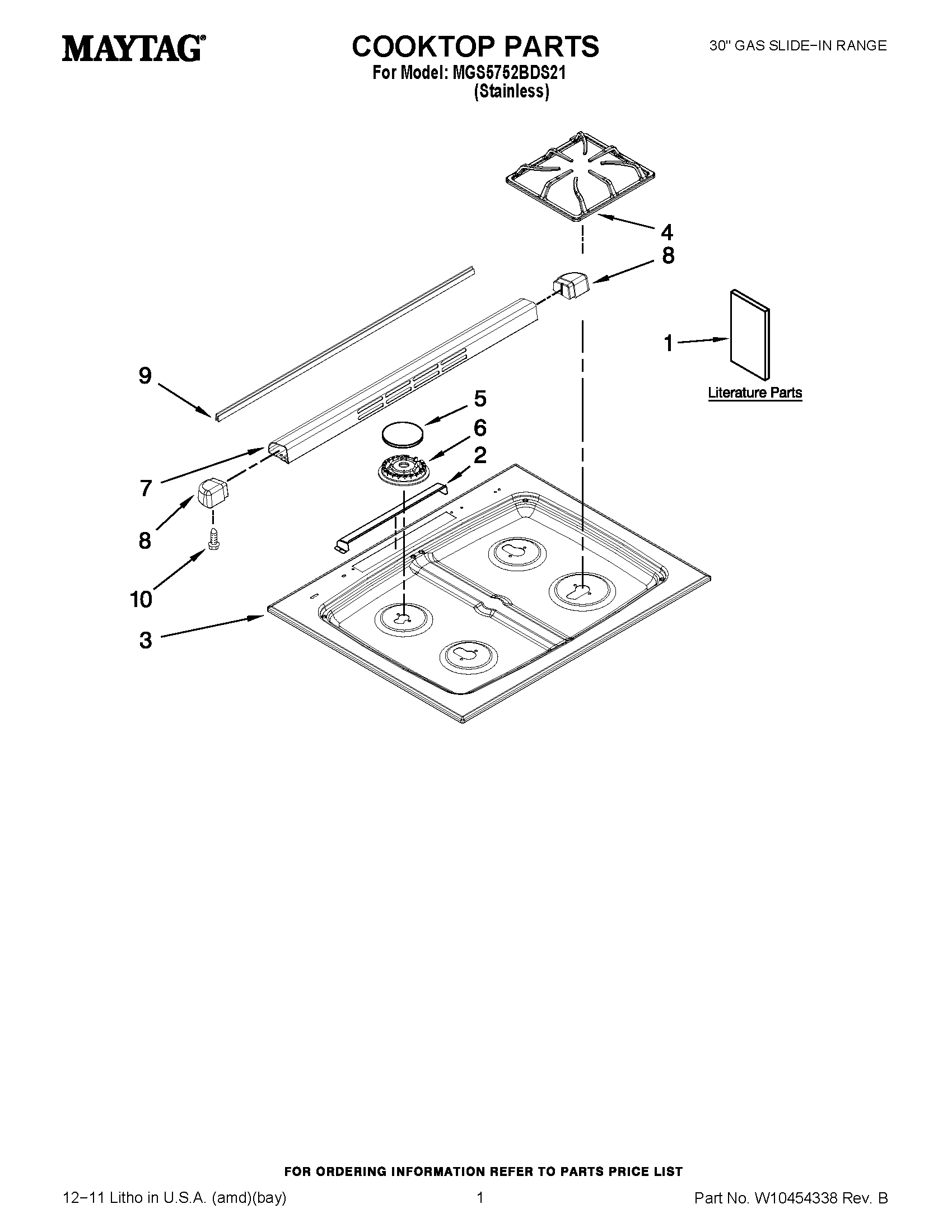

MGS5752BDS21 01 – COOKTOP PARTS

MGS5752BDS21 01 – COOKTOP PARTS

Written by

in

MGS5752BDS21 01 – COOKTOP PARTS

Products

PositionProduct
1TIPS, SAFE COOKING (ENGLISH)
1TIPS, SAFE COOKING (FRENCH)
1MAY 8119P169-60
1OWNERS MANUAL
1MAY 8101P667-60
2BAFFLE,VENT COVER
3COOKTOP
4MAY 7518P249-60
5CAP, BURNER (BLACK (3))
5CAP, BURNER (BLACK (LR/RR/RF))
5CAP, BURNER (BLACK (1))
5CAP, BURNER (BLACK (LF))
6HEAD, BURNER (LR/RR/LF)
6HEAD, BURNER CTR.
7MAY 7724P197-60
8MAY 7726P396-60
8MAY 7726P397-60
9GASKET, DOOR TOP
10SCREW
