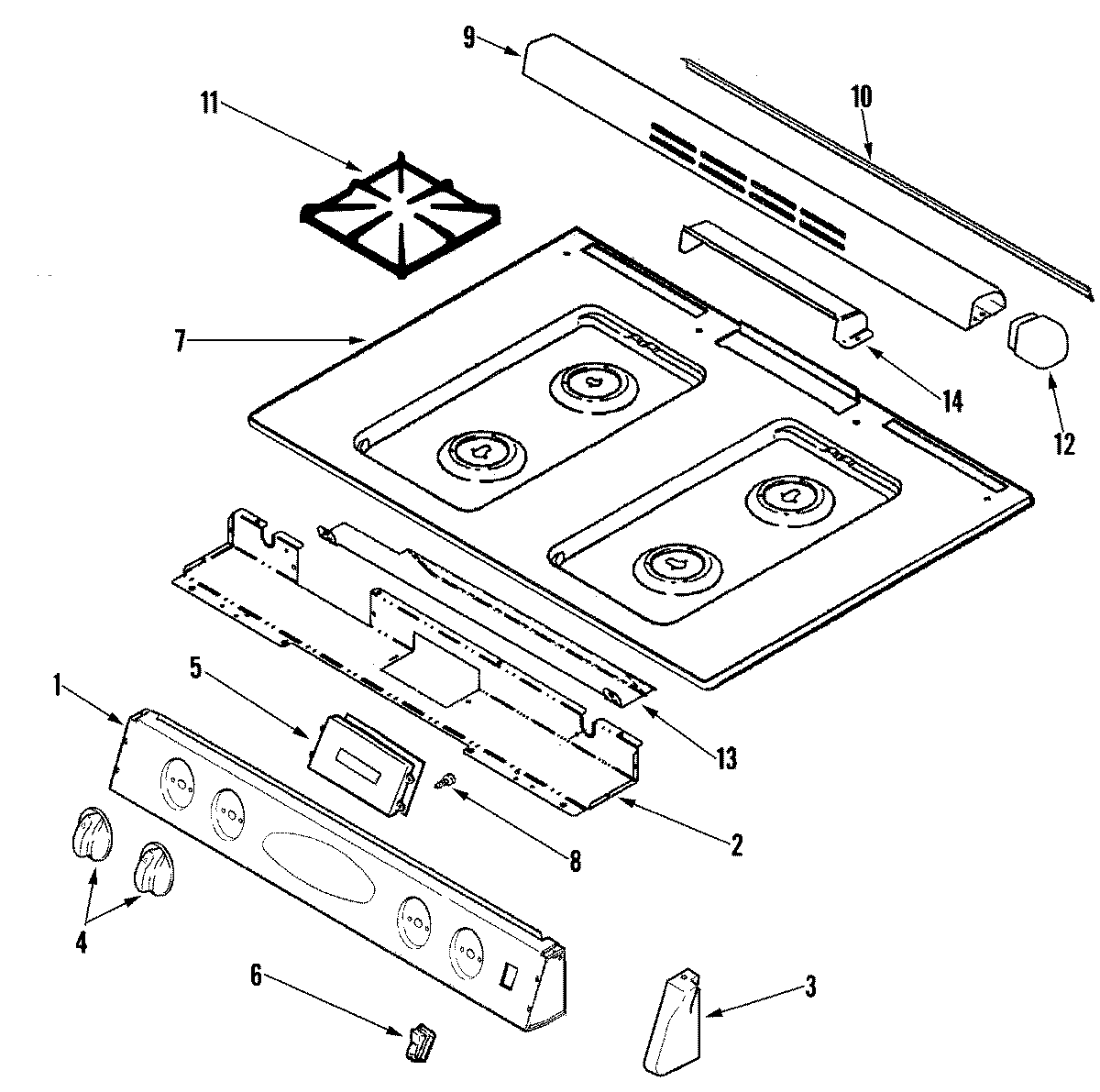

MGS5752BDW 02 – CONTROL PANEL/TOP ASSEMBLY

MGS5752BDW 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

MGS5752BDW 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74010977
2MAY 74010826
3CAP, END (WHT-RT)
3CAP, END (WHT-LT)
4MAY 74010975
5MAY 74010682
5MAY 74010979
6WP74010226 Whirlpool RO Switch
7MAY 74010969
8WP74004005 Whirlpool Screw
9MAY 74010947
10MAY 7201P061-60
11MAY 74009131
12MAY 74004290
12MAY 74004291
13SHIELD, CONTROL
14BAFFLE,VENT COVER
