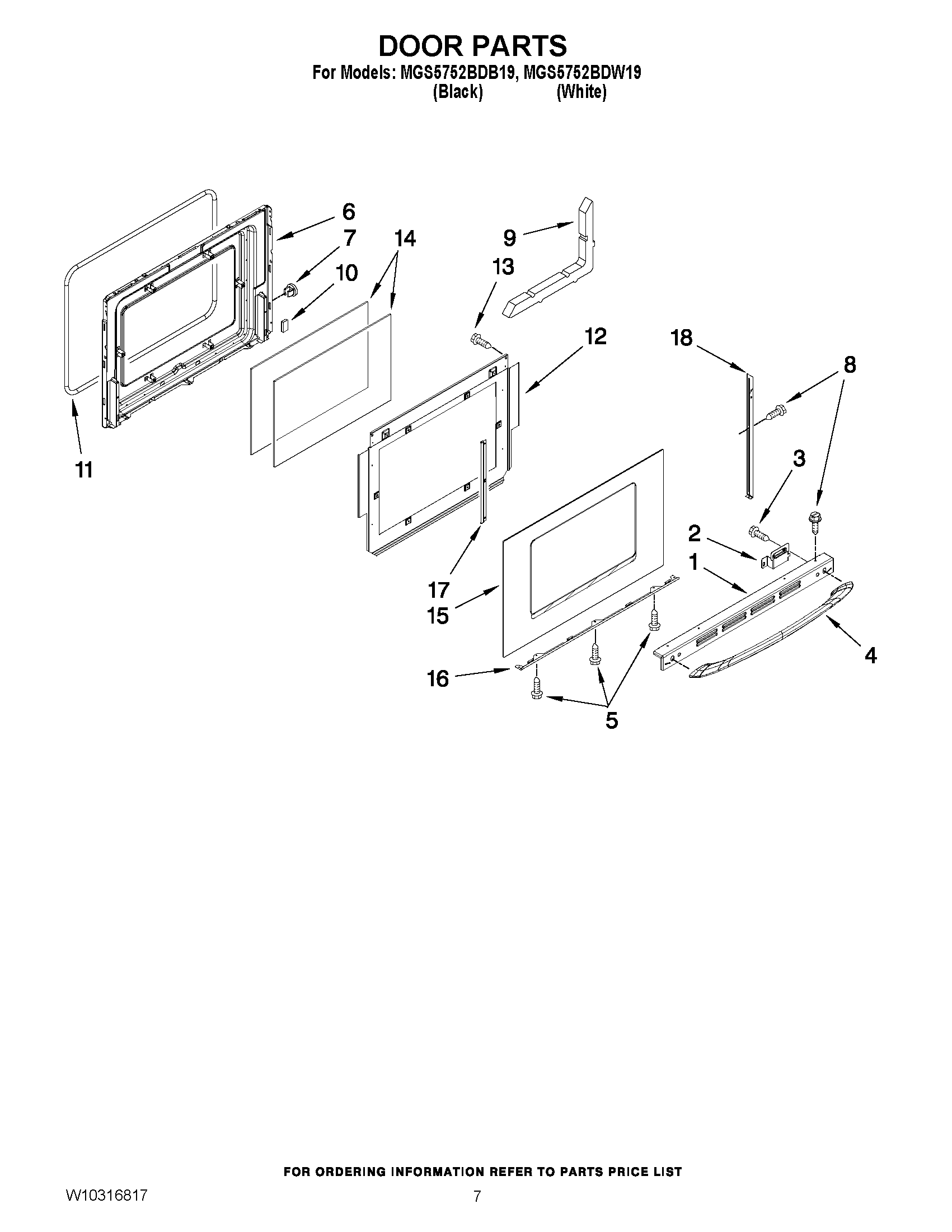

MGS5752BDW19 05 – DOOR PARTS

Products

Position	Product
1	MAY 3608F141-70
1	MAY 3608F141-71
2	MAY 3801F832-45
2	MAY 3801F831-45
3	MAY 7101P681-60
4	MAY 7701P516-60
4	MAY 7701P517-60
5	Screw (2) (Black)
6	MAY 2402W312-19
7	MAY 7103P141-60
8	SCREW (10ABX1/4P TR ZN)
9	MAY 7002P246-60
10	MAY 8010P130-60
11	MAY W10162384
12	MAY 3601F373-51
13	MAY 7101P426- 60
14	Glass, Inner
15	GLASS, DOOR (INCL. FOIL TAPE) (BLACK)
15	GLASS, DOOR (INCL. FOIL TAPE) (WHITE)
16	MAY 3807F708-71
16	MAY 3807F708-70
17	BRACKET, INNER GLASS
18	MAY 3608F116-70
18	MAY 3608F116-71
18	MAY 3608F117-70
18	MAY 3608F117-71
