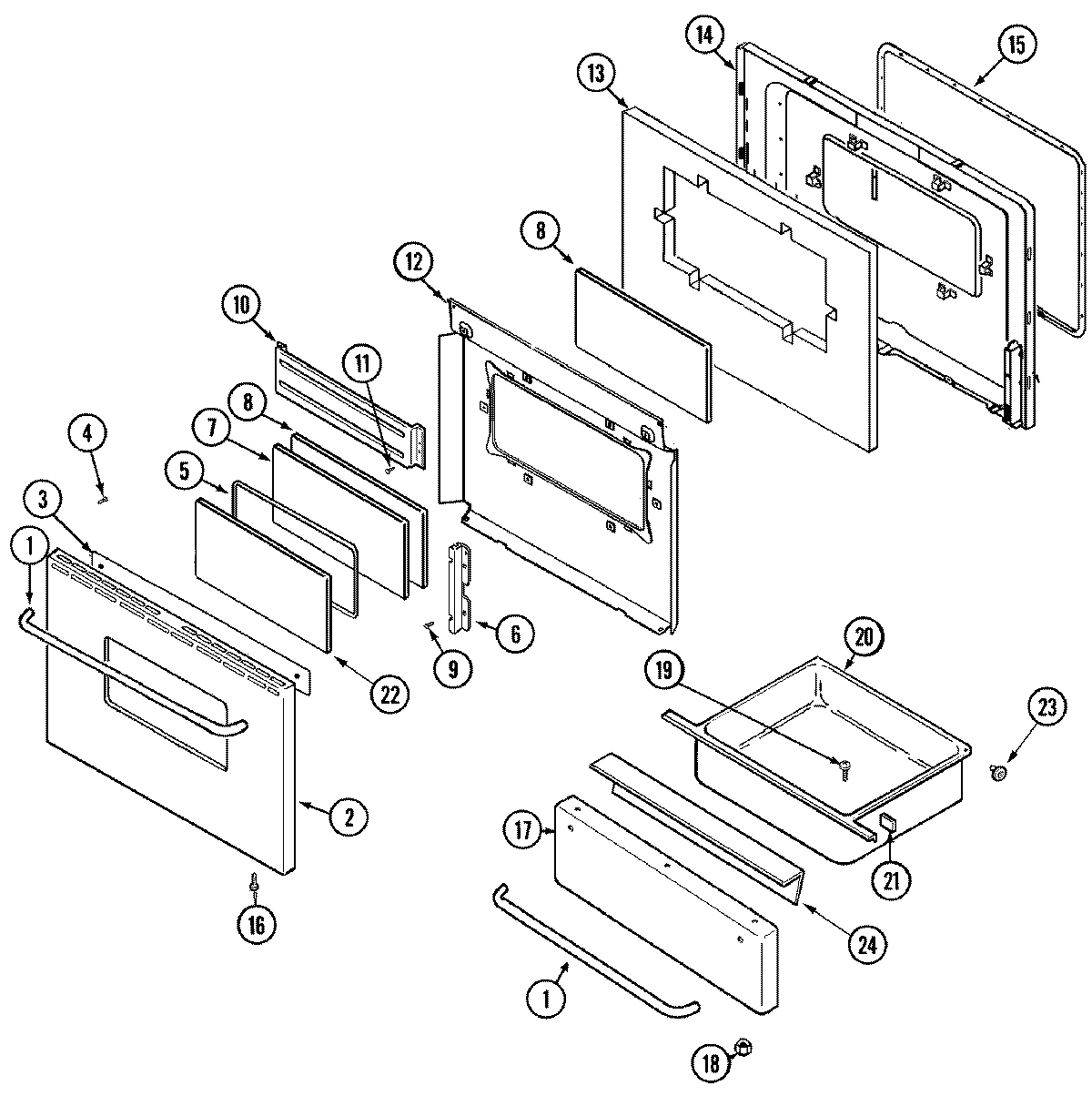

MGS5770ADC 02 – DOOR/DRAWER (ADC)

MGS5770ADC 02 – DOOR/DRAWER (ADC)

Written by

in

MGS5770ADC 02 – DOOR/DRAWER (ADC)

Products

PositionProduct
1MAY 74001071
2MAY 74005271
3MAY 74003146
4MAY 74001521
5MAY 7201P017-60
6MAY 74003048
7MAY 74002002
8GLASS, INNER
10MAY 74005458
11WP7101P126-60 Whirlpool Screw
12MAY 74001843
13MAY 74001842
14LINING, OVEN DOOR
15GASKT-DOOR OVEN
16SCREW
17MAY 74003312
18MAY 74003643
20MAY 71003042
21WP74005546 Whirlpool RU Spacer
22MAY 74001072
23WP74004078 Whirlpool Door Roller
23SHAFT, STORAGE DRAWER ROLLER
24LINING, DRAWER PANEL
