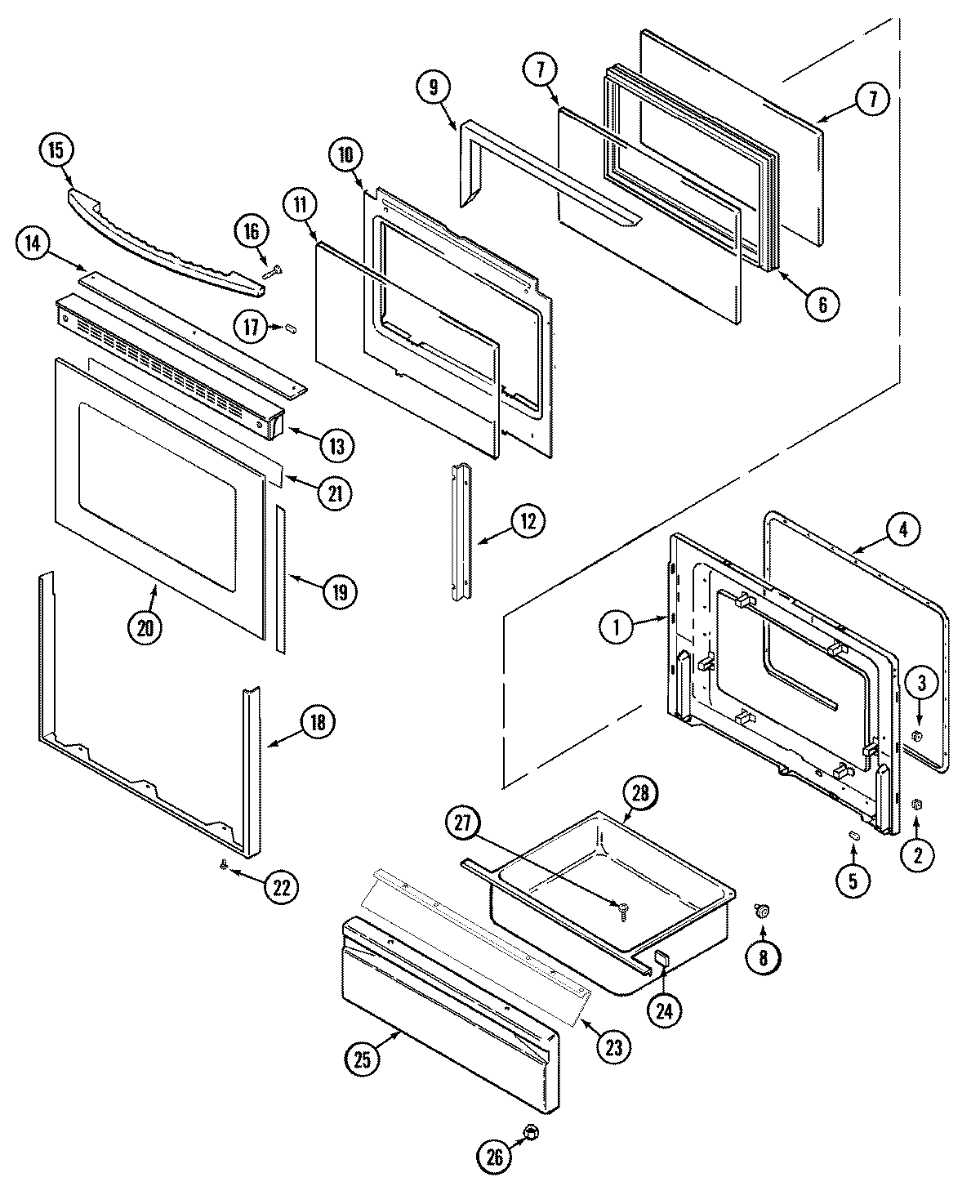

MGS5770ADQ 02 – DOOR/DRAWER

MGS5770ADQ 02 – DOOR/DRAWER

Written by

in

MGS5770ADQ 02 – DOOR/DRAWER

Products

PositionProduct
1MAY 74003642
2MAY 74003643
3NUT, SNAP (ROUND-WHT)
3NUT, SNAP (ROUND-BLK)
4GASKT-DOOR OVEN
5MAY 8010P085-60
6FRAME, GLASS
774003645 Whirlpool Range Oven Door Inner Glass
8WP74004078 Whirlpool Door Roller
8WP488130 Whirlpool Air Conditioner Nut
8MAY 74004079
9INSULATION, OVEN DOOR
10MAY 74003648
11GLASS, DOOR
12MAY 74003650
13MAY 74005006
14MAY 74004978
15MAY 74004974
16WP179051 Whirlpool Screw
17WP74004224 Whirlpool Tape
18WP74009541 Whirlpool Screw Assembly
18MAY 74005162
20MAY 74005008
21TAPE, FOIL 29“ X 2“
22SCREW
23LINING, DRAWER PANEL
25PANEL, DRAWER (BSQ)
26WPW10131078 Whirlpool Nut Assembly
28MAY 71003042
