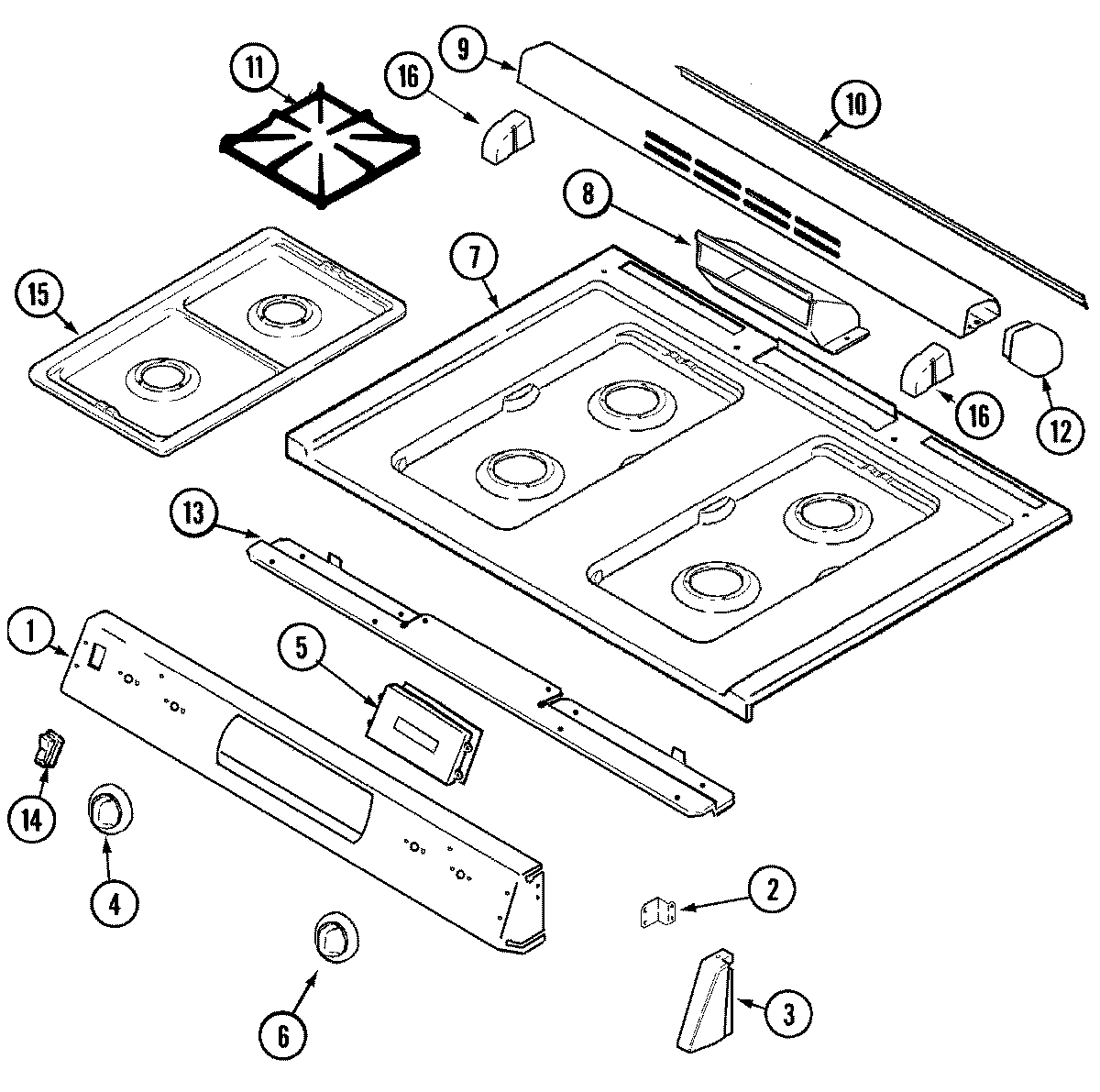

MGS5770ADQ 05 – TOP ASSEMBLY (ADQ)

MGS5770ADQ 05 – TOP ASSEMBLY (ADQ)

Written by

in

MGS5770ADQ 05 – TOP ASSEMBLY (ADQ)

Products

PositionProduct
1MAY 74005012
2MAY 74004186
2WP74009541 Whirlpool Screw Assembly
2MAY 74005671
3MAY 74005013
3MAY 74005014
4MAY 74005010
5MAY 74005206
5MAY 74004316
6NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
6MAY 74005011
7MAY 74005016
8WP59002061 Whirlpool Microwave Screw
8BAFFLE,VENT COVER
9MAY 74004289
9MAY 74005324
10MAY 7201P061-60
11MAY 74003765
12SCREW
12MAY 74004423
12MAY 74004422
13SUPPORT, MANIFOLD PANEL
13SCREW (8BX3/8-NI)
1474008765 Whirlpool Range Oven Rocker Switch Bisque
15MAY 74004996
16MAY 74006057
17MAY 74004335
17MAY 74005674
17MAY 12001323
18MAY 74004397
18MAY 74004443
19MAY 16010161
