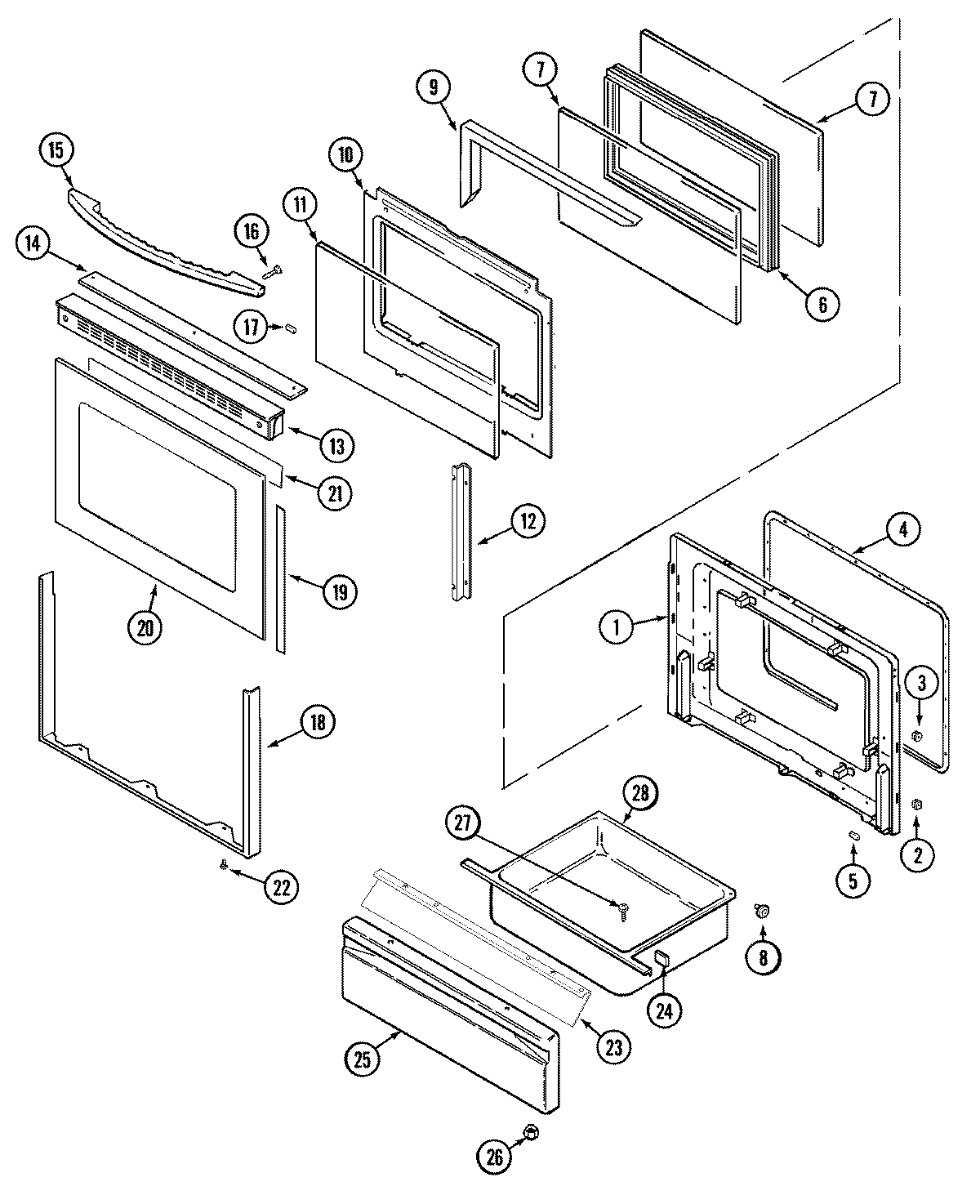

MGS5770ADW 02 – DOOR/DRAWER

Products

Position	Product
1	MAY 74003642
2	MAY 74003643
3	NUT, SNAP (ROUND-WHT)
3	NUT, SNAP (ROUND-BLK)
4	GASKT-DOOR OVEN
6	FRAME, GLASS
7	74003645 Whirlpool Range Oven Door Inner Glass
8	WP488130 Whirlpool Air Conditioner Nut
8	MAY 74003566
9	INSULATION, OVEN DOOR
10	MAY 74003648
11	GLASS, DOOR
12	MAY 74003650
13	WP74003653 Whirlpool Door Trim
14	MAY 7728P094-60
14	MAY 74001278
15	MAY 74003620
16	WP179051 Whirlpool Screw
17	WP74004224 Whirlpool Tape
18	MAY 74004325
18	WP98008544 Whirlpool Screw Assembly
19	MAY 74003660
20	MAY 74003671
21	TAPE, FOIL 29`` X 2``
22	SCREW
23	LINING, DRAWER PANEL
24	MAY 8010P085-60
25	PANEL, DRAWER (WHT)
26	WPW10131078 Whirlpool Nut Assembly
27	WP7101P072-60 Whirlpool Screw
28	MAY 71003042
