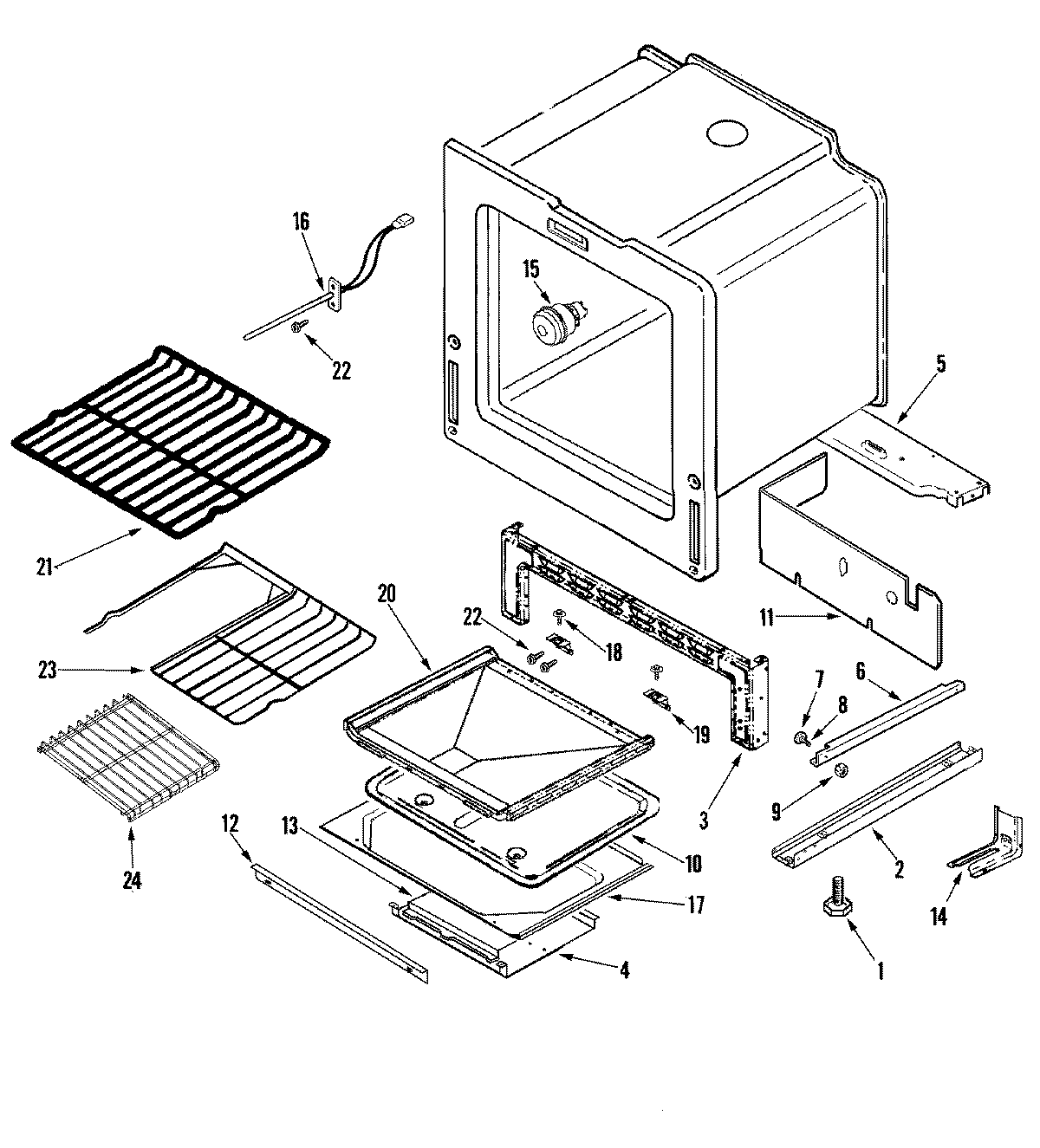

MGS5775BDB 05 – OVEN/BASEadmin2025-04-26T13:06:08+00:00MGS5775BDB 05 – OVEN/BASE
Products
| Position | Product |
|---|
| 1 | WP74010805 Whirlpool Screw |
| 2 | 4020W035-80 Whirlpool Bottom PE |
| 3 | PEDESTAL, FRONT |
| 4 | MAY 74006591 |
| 5 | SUPPORT, VALVE REGULATOR |
| 6 | RUNNER, DRAWER |
| 7 | WP74004078 Whirlpool Door Roller |
| 8 | SHAFT, STORAGE DRAWER ROLLER |
| 9 | 74005230 Whirlpool Oven Lock Nut (8-32) |
| 10 | PAN, BAKE BURNER |
| 11 | COVER, VALVE/REGULATOR |
| 12 | BAFFLE, OVEN FRONT |
| 13 | MAY 74006574 |
| 14 | WP3801F656-51 Whirlpool Range Anti-Tip Bracket |
| 15 | RANGE ONLY 40W 120V APPL BULB |
| 15 | LAMP ASSEMBLY |
| 16 | 12001655 Whirlpool Oven Sensor |
| 17 | RETAINER, BOTTOM INSULATION |
| 17 | INSULATION, OVEN BOTTOM |
| 19 | MAY 74010812 |
| 20 | WP2205F054-19 Whirlpool Oven Bottom |
| 21 | WPW10282492 Whirlpool Oven Rack |
| 22 | WP74003976 Whirlpool Screw |
| 23 | WPW10273862 Whirlpool Oven Rack |
| 24 | INSERT, HALF RACK 30`` |
