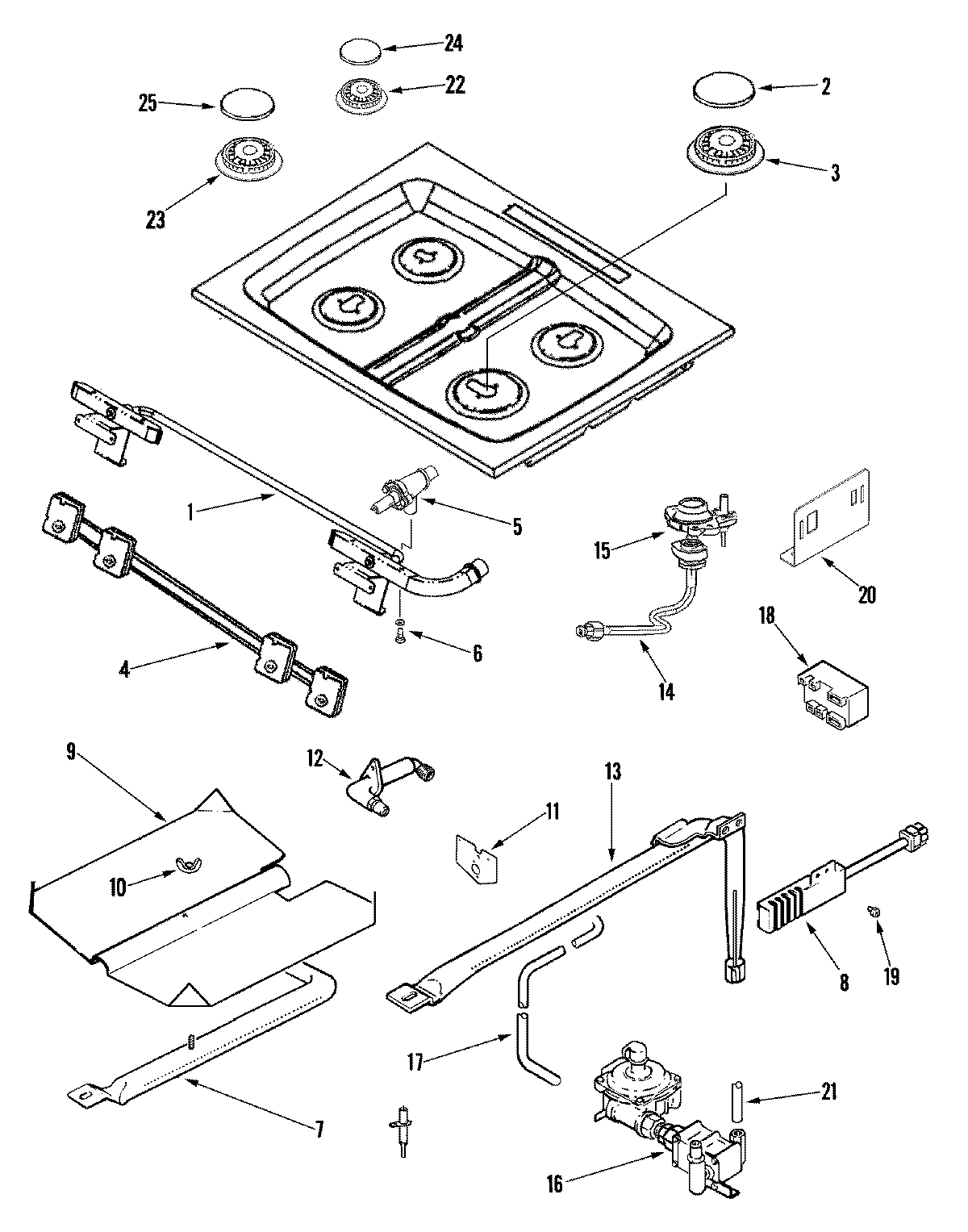

MGS5775BDQ 04 – GAS CONTROLS

Products

Position	Product
1	MAY 74010965
2	WP74007417 Whirlpool Burner Cap
3	WPW10406878 Whirlpool Burner Base (16K)
4	MAY 74010915
5	MAY 74009452
5	12002270 Whirlpool Valve Kit and Screw 16K
5	MAY 74009451
6	MAY 74009416
7	MAY 74004076
8	74007498 Whirlpool Range Flat Igniter
9	MAY 3601F217-47
10	NUT, WING
11	MAY 74004307
12	MAY 74010901
13	MAY 3807F446-45
13	MAY 74003960
14	MAY 74011131
14	MAY 74011134
14	MAY 74011133
14	MAY 74011132
15	WPW10407680 Whirlpool Orifice Holder
15	HOLDER, ORIFICE (9.2K)
15	WPW10407678 Whirlpool Orifice Holder
15	WPW10110378 Whirlpool Surface Igniter
16	MAY W10130932
17	MAY 74004408
18	Module, Spark (4+0)
18	8215557 Whirlpool Gas Stove Range Oven Cooktop Spark Module
19	SCREW (10-24X5/16-NI)
20	SUPPORT, SPARK MODULE
20	BRACKET
21	MAY 74010944
22	WPW10406243 Whirlpool Burner Head Auxiliary 6K
23	WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
23	WP90767 Whirlpool Screw
24	WP74007419 Whirlpool Burner Cap
25	WP74007751 Whirlpool Burner Cap
