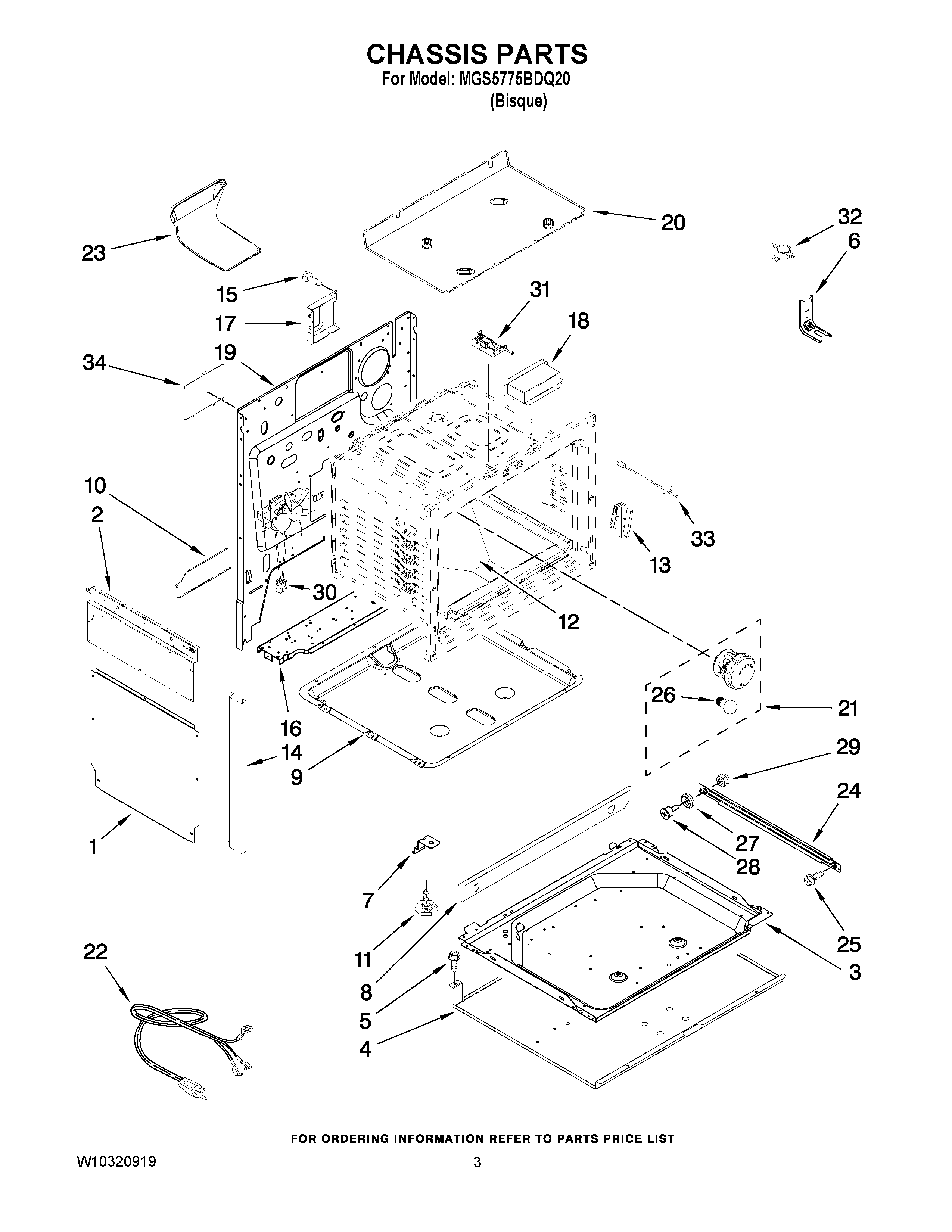

MGS5775BDQ20 03 – CHASSIS PARTS

Products

Position	Product
NI	MAY 7002P471-60
NI	MAY 7002P445-60
NI	MAY 3804F289-51
NI	INSULATION, DRAWER & SHIELD
NI	MAY 7002P451-60
NI	INSULATION, OVEN BOTTOM
1	MAY 3604F416-51
2	MAY 2618F206-51
2	MAY 2618F201-51
3	RETAINER, CONV INSULATION
4	SHIELD, WARM. DWR.
5	MAY 7101P376-60
6	BRACKET, ANTI-TIP
7	SUPPORT, OVEN BTM.
8	MAY 3601F251-45
9	MAY 3401F044-45
10	MAY 3826F066-51
11	LEG, LEVELING
12	MAY 2205F054-19
13	MAY 7106P141-60
14	TRIM, SIDE (BISQUE)
15	Screw (Black) (2)
16	SUPPORT
17	COVER, MAIN WIRE
18	COVER, DOOR LATCH
19	BACK, MAIN
20	MAY 4011F490-51
21	MAY 7407P182-60
22	MAY 7402P086-60
23	MAY 8026P095-60
24	RUNNER, DRAWER (2)
25	SCREW, HINGE
26	RANGE ONLY 40W 120V APPL BULB
27	MAY 8014P022-60
28	MAY 7118P032-60
29	MAY 7103P190-60
30	MAY 7427P094-60
31	ASSY., LIGHT SW
32	MAY 7450P030-60
33	Sensor, Oven
34	COVER, TERMINAL
