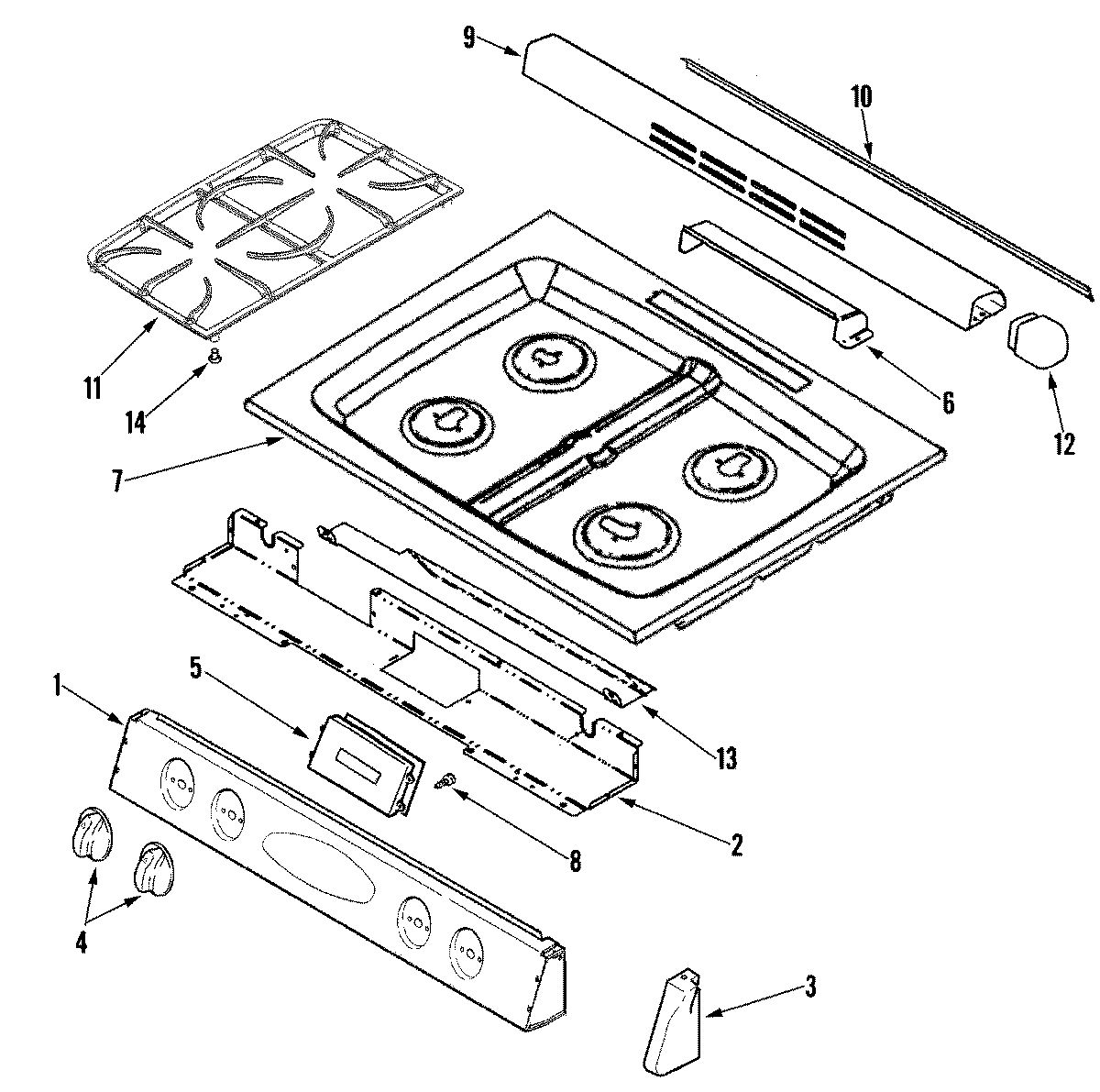

MGS5775BDS 02 – CONTROL PANEL/TOP ASSEMBLY

MGS5775BDS 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

MGS5775BDS 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74011129
2MAY 74010826
3CAP, END (BLK-RT)
3CAP, END (BLK-LT)
474010974 Whirlpool Black Knob
5MAY 74010979
5MAY 74010683
6BAFFLE,VENT COVER
7MAY 74011138
8WP74004005 Whirlpool Screw
9MAY 74010946
10MAY 7201P061-60
1174009120 Whirlpool Oven Double Grate Black
12MAY 74010925
12MAY 74004365
13SHIELD, CONTROL
14MAY M0275597
14W10919249 Whirlpool Burner Grate Foot
