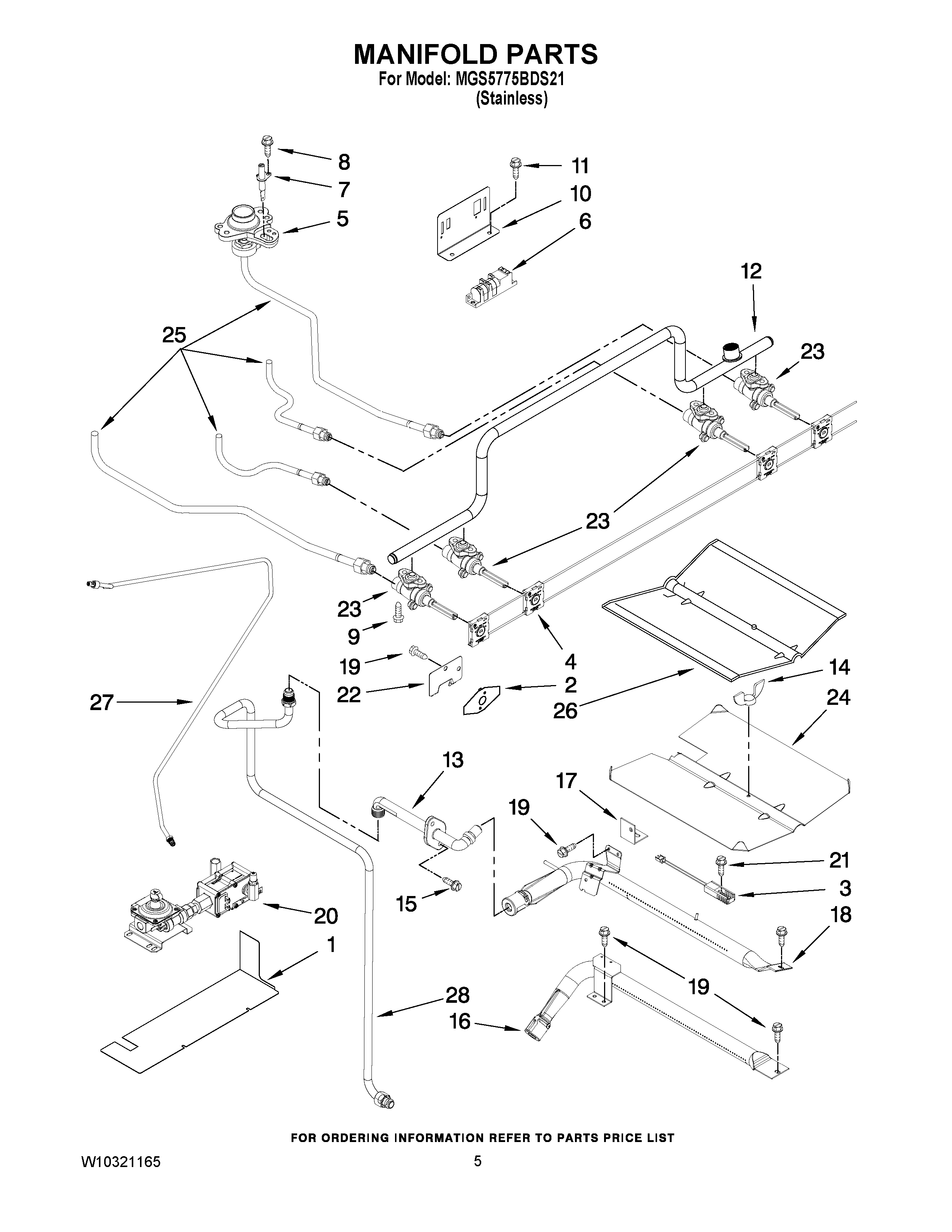

MGS5775BDS21 04 – MANIFOLD PARTS

Products

Position	Product
NI	MAY 7507P405-60
1	COVER, BNR VALVE
2	MAY 3605F269-45
3	IGNITOR, OVEN
4	HARNESS, VALVE INCLUDES SWITCHES
5	ORIFICE (LF,RR)
5	ORIFICE (LR)
5	ORIFICE (RF)
6	MODULE, SPARK
7	Ignitor, Top Burner (4)
8	MAY 8273062
9	SCREW (8BX3/8-NI)
10	BRACKET
11	MAY 7101P426- 60
12	MAY 7513P472-60
13	MAY 7507P407-60
14	NUT, WING
15	SCREW (2)
16	MAY 7505P254-60
17	MAY 3807F480-45
18	MAY 7505P293-60
19	MAY 7101P434-60
20	VAVLE, SAFETY
21	SCREW (10-24X5/16-NI)
22	MAY 4005F421-45
23	MAY 7502P548-60
23	VALVE, TOP BURNER (LR 5K)
23	VALVE, TOP BURNER (RR/LF 9.2K)
24	BAFFLE, BAKE (BROIL)
25	MAY 7506P439-60
25	MAY 7506P440-60
25	MAY 7506P441-60
25	MAY 7506P442-60
26	BAFFLE, OVEN BOTTOM
27	TUBING, SUPPLY
28	TUBING, BROILER
