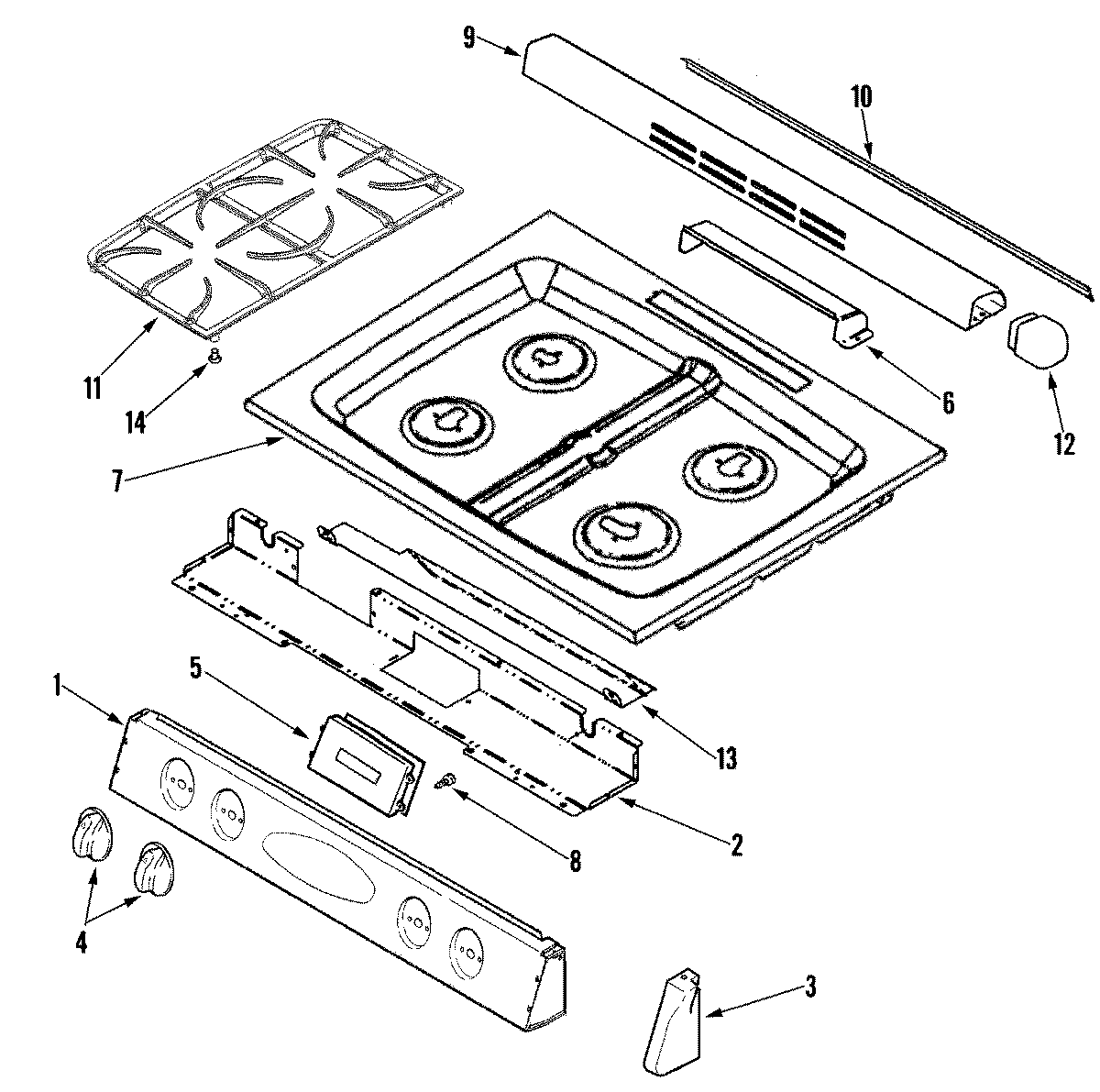

MGS5775BDW 02 – CONTROL PANEL/TOP ASSEMBLY
Written by
in
MGS5775BDW 02 – CONTROL PANEL/TOP ASSEMBLY
Products
Position
Product
1
MAY 74011127
2
MAY 74010826
3
CAP, END (WHT-RT)
3
CAP, END (WHT-LT)
4
MAY 74010975
5
MAY 74010979
5
MAY 74010684
6
BAFFLE,VENT COVER
7
MAY 74011136
8
WP74004005 Whirlpool Screw
9
MAY 74010947
10
MAY 7201P061-60
11
GRATE, DOUBLE (GRY)
12
MAY 74004291
12
MAY 74004290
13
SHIELD, CONTROL
14
MAY M0275597
14
W10919249 Whirlpool Burner Grate Foot
←
