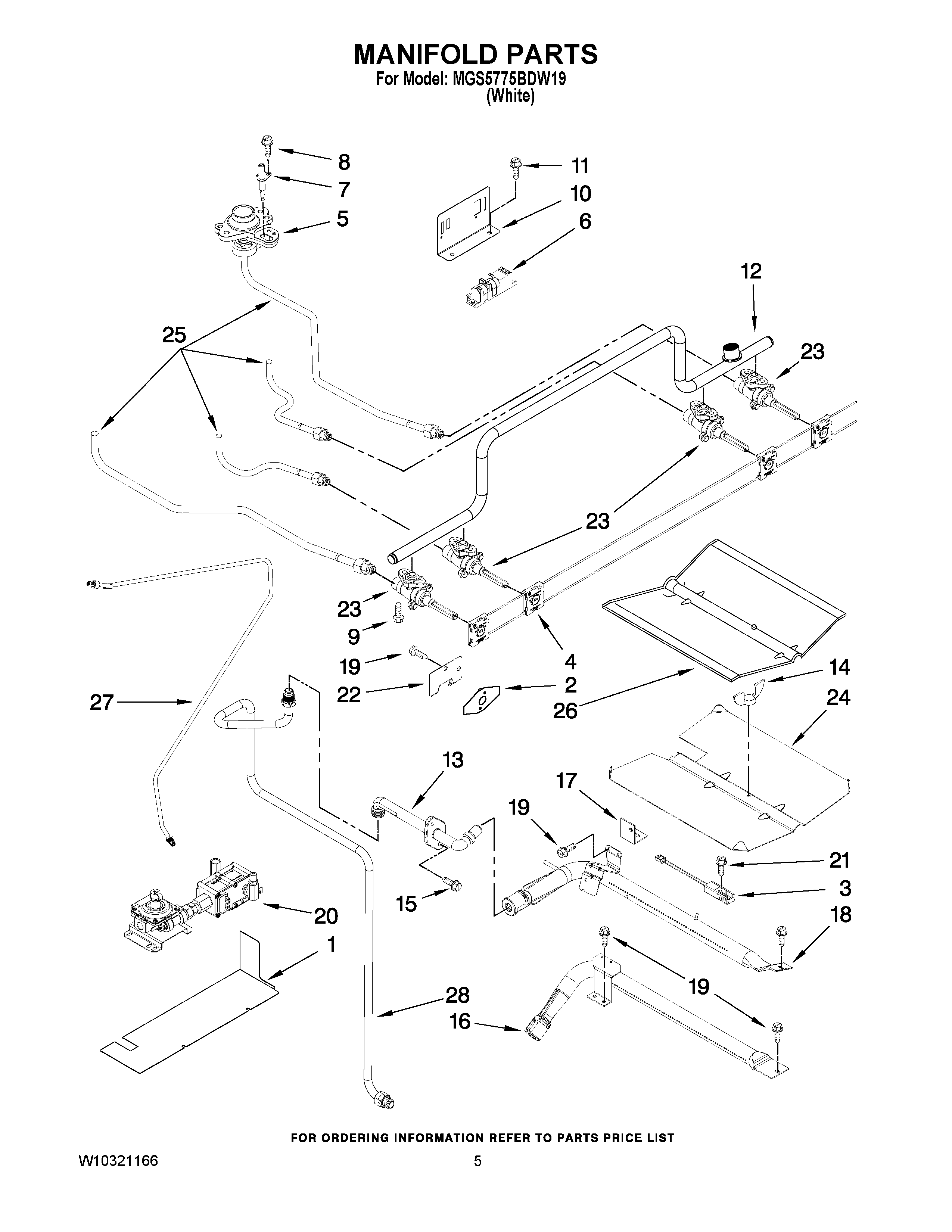

MGS5775BDW19 04 – MANIFOLD PARTSadmin2025-04-26T13:03:57+00:00MGS5775BDW19 04 – MANIFOLD PARTS
Products
| Position | Product |
|---|
| NI | MAY 7507P405-60 |
| 1 | COVER, BNR VALVE |
| 2 | MAY 3605F269-45 |
| 3 | IGNITOR, OVEN |
| 4 | HARNESS, VALVE INCLUDES SWITCHES |
| 5 | ORIFICE (LF,RR) |
| 5 | ORIFICE (LR) |
| 5 | ORIFICE (RF) |
| 6 | MODULE, SPARK |
| 7 | Ignitor, Top Burner (4) |
| 8 | MAY 8273062 |
| 9 | SCREW (8BX3/8-NI) |
| 10 | BRACKET |
| 11 | MAY 7101P426- 60 |
| 12 | MAY 7513P472-60 |
| 13 | MAY 7507P407-60 |
| 14 | NUT, WING |
| 15 | SCREW (2) |
| 16 | MAY 7505P254-60 |
| 17 | MAY 3807F480-45 |
| 18 | MAY 7505P293-60 |
| 19 | MAY 7101P434-60 |
| 20 | VAVLE, SAFETY |
| 21 | SCREW (10-24X5/16-NI) |
| 22 | MAY 4005F421-45 |
| 23 | MAY 7502P548-60 |
| 23 | VALVE, TOP BURNER (LR 5K) |
| 23 | VALVE, TOP BURNER (RR/LF 9.2K) |
| 24 | BAFFLE, BAKE (BROIL) |
| 25 | MAY 7506P439-60 |
| 25 | MAY 7506P440-60 |
| 25 | MAY 7506P441-60 |
| 25 | MAY 7506P442-60 |
| 26 | BAFFLE, OVEN BOTTOM |
| 27 | TUBING, SUPPLY |
| 28 | TUBING, BROILER |
