MGS5870ADB 02 – DOOR/DRAWER

MGS5870ADB 02 – DOOR/DRAWER

Written by

in

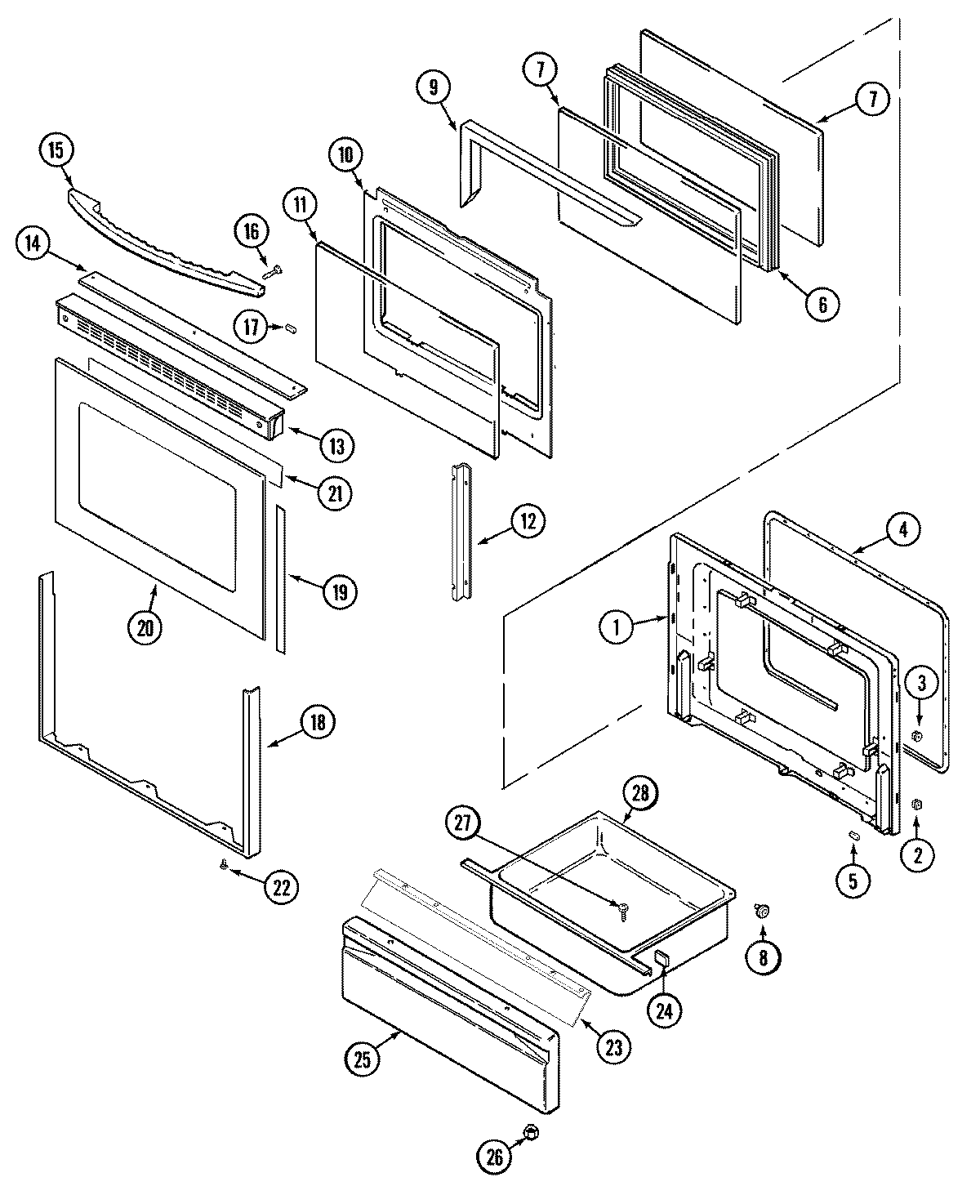

MGS5870ADB 02 – DOOR/DRAWER

Products

PositionProduct
1MAY 74003642
2MAY 74003643
3NUT, SNAP (ROUND-WHT)
3NUT, SNAP (ROUND-BLK)
4GASKT-DOOR OVEN
5MAY 8010P085-60
6FRAME, GLASS
774003645 Whirlpool Range Oven Door Inner Glass
8WP488130 Whirlpool Air Conditioner Nut
8MAY 74003566
9INSULATION, OVEN DOOR
10MAY 74003648
11GLASS, DOOR
12MAY 74003650
13WP74003652 Whirlpool Door Trim
13WP98008545 Whirlpool Screw
15MAY 74003617
16WP179051 Whirlpool Screw
17WP74004224 Whirlpool Tape
18MAY 12002359
18MAY 74004324
18SCREW (8ABX1/2“-BLK)
19MAY 74003660
20MAY 74003662
21TAPE, FOIL 29“ X 2“
22SCREW
23LINING, DRAWER PANEL
25PANEL, DRAWER (BLK)
26WPW10131078 Whirlpool Nut Assembly
28MAY 71003042
