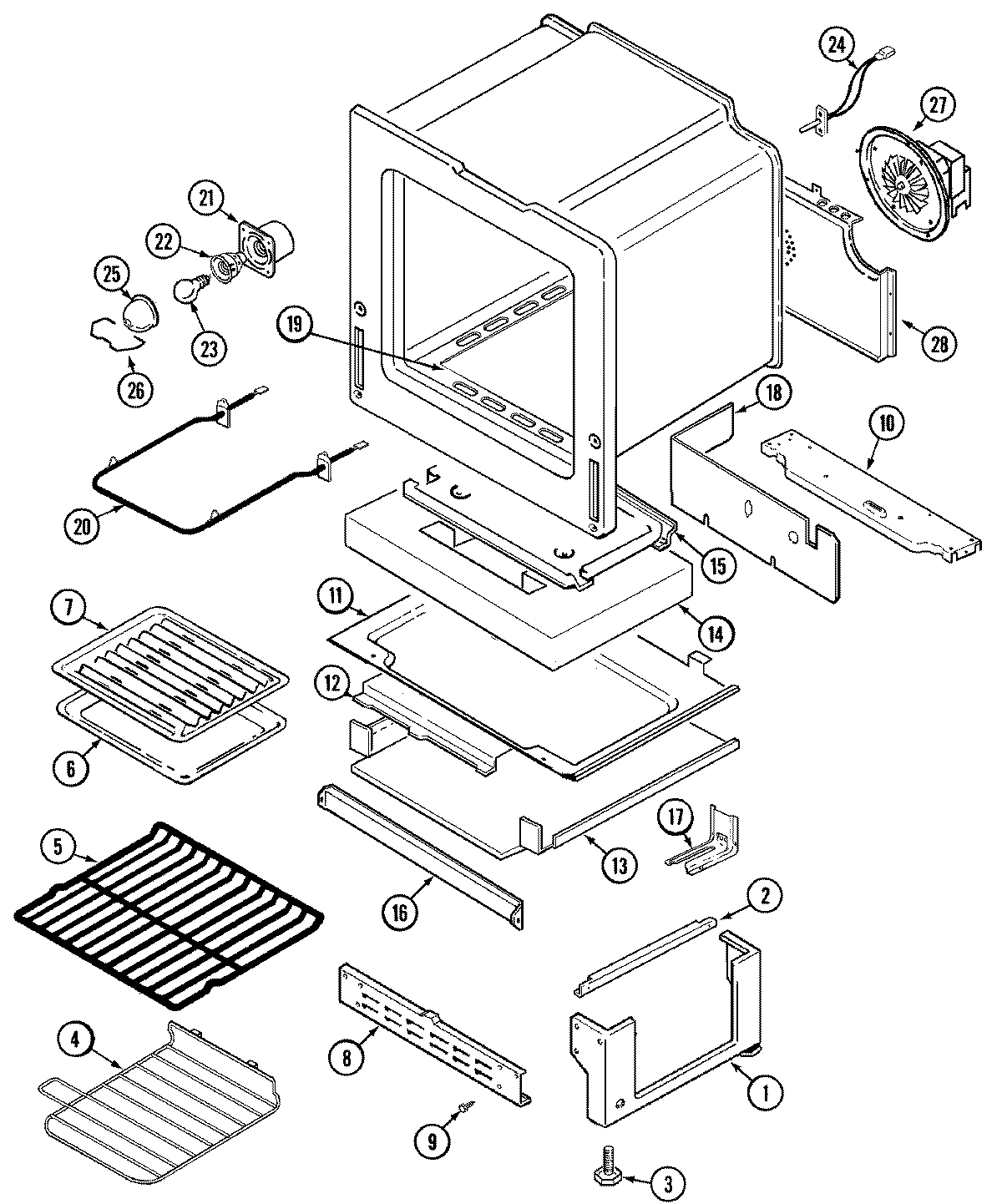

MGS5870ADB 04 – OVEN/BASE

MGS5870ADB 04 – OVEN/BASE

Written by

in

MGS5870ADB 04 – OVEN/BASE

Products

PositionProduct
1MAY 74003405
2RUNNER, DRAWER
3W11665456 Whirlpool Range Level Foot
4MAY 74003590
4MAY 74007263
5WPW10282492 Whirlpool Oven Rack
6MAY Y3401F02019
7MAY Y3413F01619
8MAY 4020F001-80
10MAY 74004167
11MAY 74004296
12MAY 3604F204-51
13MAY 3604F205-51
14WP74010942 Whirlpool Insulation
15PAN, BAKE BURNER
16WP74003976 Whirlpool Screw
16BAFFLE, OVEN FRONT
17MAY 74002311
17WP7101P485-60 Whirlpool Anchor Tip
18MAY 74003329
19MAY 5504M004-19
20MAY 74003908
21MAY 74003388
22MAY 74003387
23RANGE ONLY 40W 120V APPL BULB
24SCREW
24MAY 74003413
25MAY 74003389
26MAY 74003391
27MAY 74003815
27MAY 74005676
28COVER, CONVECT
28MAY 74003697
