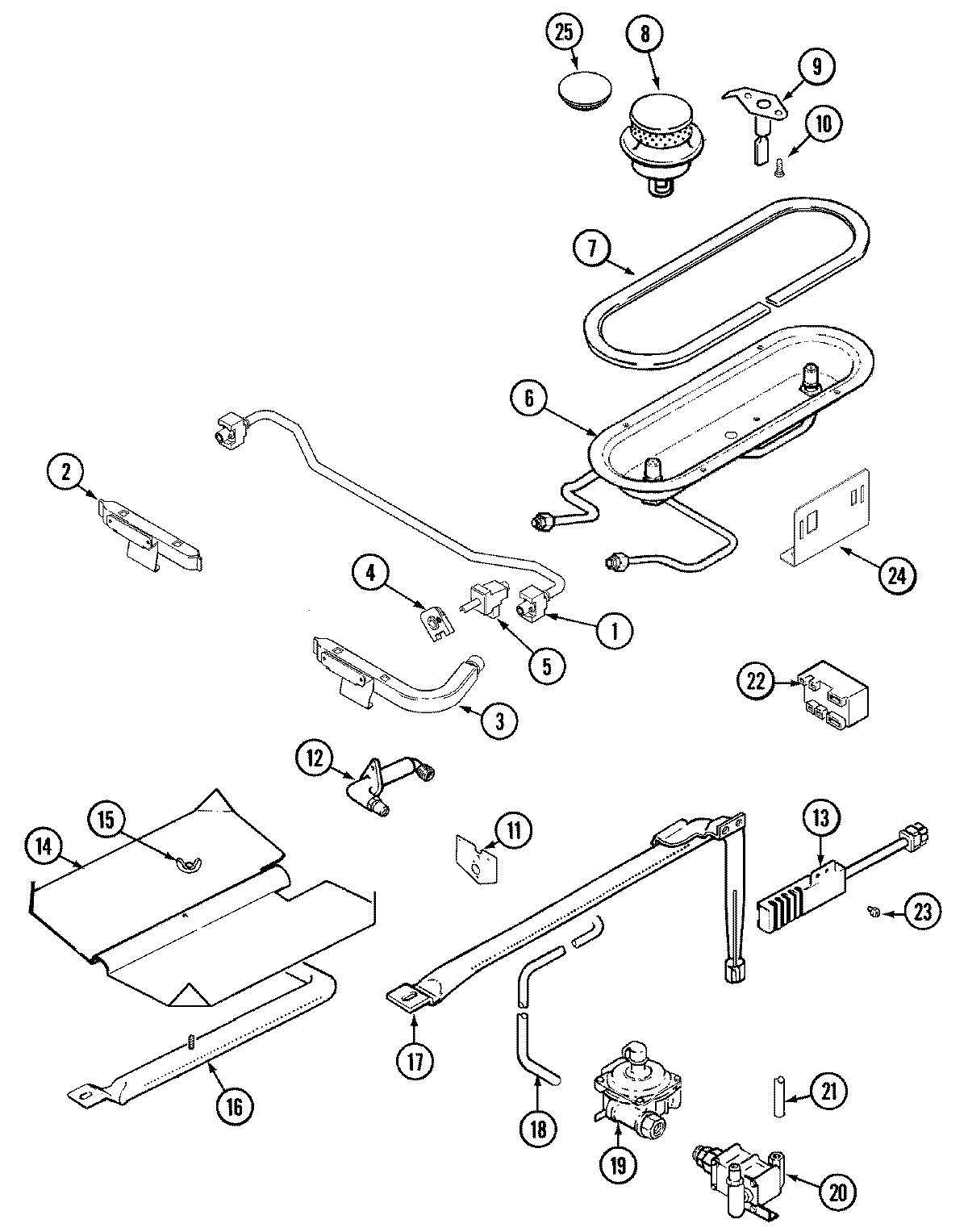

MGS5870ADC 03 – GAS CONTROLS

Products

Position	Product
1	MAY 74004299
1	MAY 74004298
2	MAY 74004411
3	MAY 74009536
3	MAY 74004412
4	MAY 74002533
4	WP7403P287-60 Whirlpool Igniter Switch
5	MAY 74009535
5	MAY 74004302
5	MAY 74009530
5	MAY 74004409
5	MAY 74004303
6	MAY 74004304
6	MAY 74004306
6	MAY 74004413
7	MAY 74006056
8	WP3412D024-09 Whirlpool Oven Burner Head
8	WP3412D021-09 Whirlpool Burner Assembly
9	74004053 Whirlpool Range Cooktop Top Burner Electrode Spark Igniter
9	MAY 74004410
10	MAY Y707113
11	MAY 74004307
12	MAY 74004461
12	WP3387230 Whirlpool Screw
13	MAY 7432P075-60
14	MAY 3601F217-45
14	MAY 74009231
15	NUT, WING
16	MAY 74004076
17	MAY 74003960
17	MAY 3807F446-45
18	MAY 7103P130-60
18	MAY 74004462
19	WP74006429 Whirlpool Regulator
20	WP74006427 Whirlpool Oven Valve
20	MAY 74007621
21	MAY 74004408
22	8215557 Whirlpool Gas Stove Range Oven Cooktop Spark Module
23	SCREW
23	MAY 4005F421-45
24	MAY 74004297
25	WP3403F088-00 Whirlpool Burner Cap
26	WP74009534 Whirlpool 3.5 Wire
26	MAY 74006047
26	WP74009533 Whirlpool Wire 3.5
27	WP74007593 Whirlpool Orifice
27	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
