MGS5870ADC 04 – OVEN/BASE – Aparts

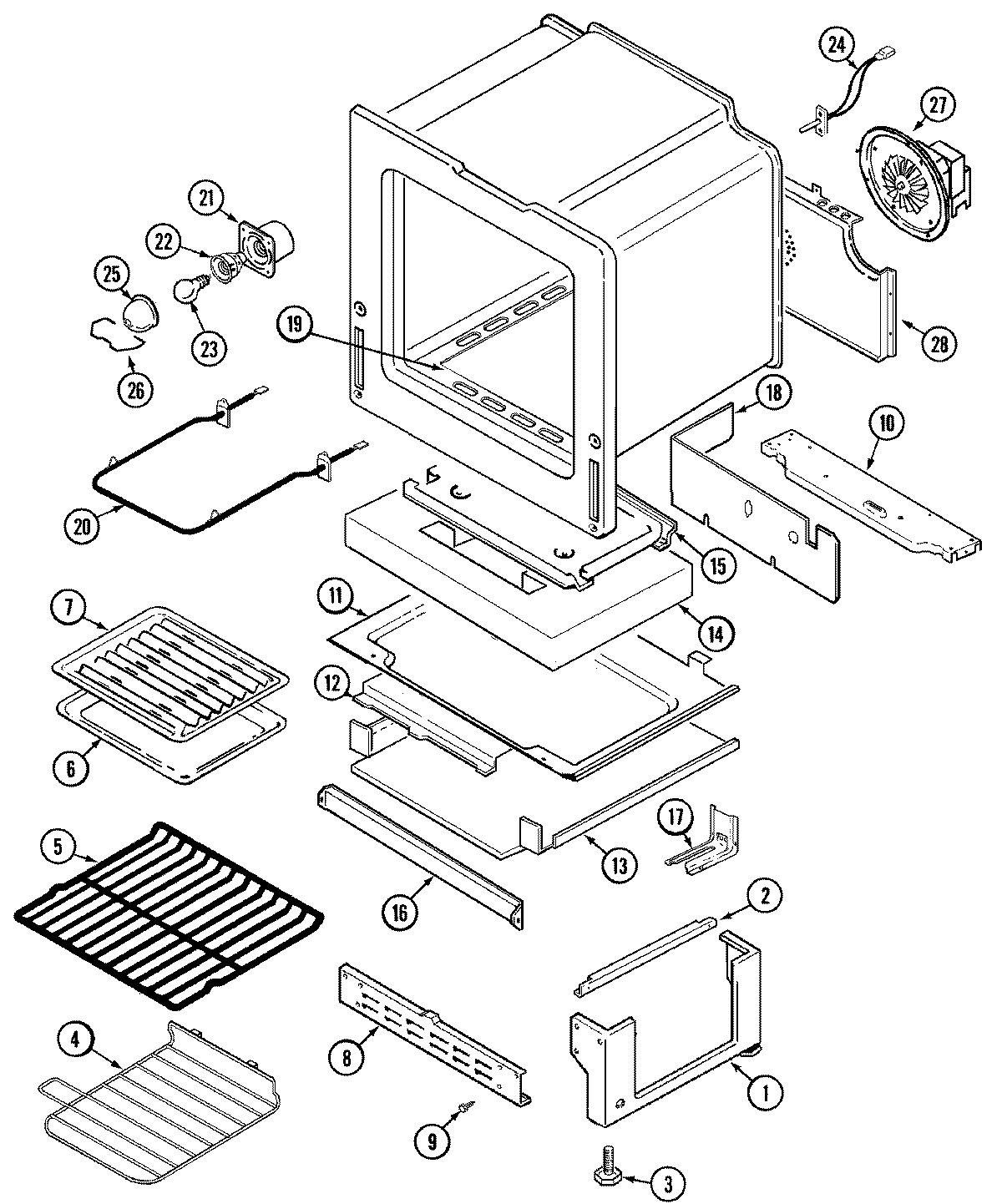

MGS5870ADC 04 – OVEN/BASE

Products

Position	Product
1	MAY 74003405
2	RUNNER, DRAWER
3	W11665456 Whirlpool Range Level Foot
4	MAY 74003590
4	MAY 74007263
5	WPW10282492 Whirlpool Oven Rack
6	MAY Y3401F02019
7	MAY Y3413F01619
8	MAY 4020F001-80
10	MAY 74004167
11	MAY 74004296
12	MAY 3604F204-51
13	MAY 3604F205-51
14	WP74010942 Whirlpool Insulation
15	PAN, BAKE BURNER
16	WP74003976 Whirlpool Screw
16	BAFFLE, OVEN FRONT
17	MAY 74002311
17	WP7101P485-60 Whirlpool Anchor Tip
18	MAY 74003329
19	MAY 5504M004-19
20	MAY 74003908
21	MAY 74003388
22	MAY 74003387
23	RANGE ONLY 40W 120V APPL BULB
24	MAY 74003413
24	SCREW
25	MAY 74003389
26	MAY 74003391
27	MAY 74005676
28	COVER, CONVECT
28	MAY 74003697
