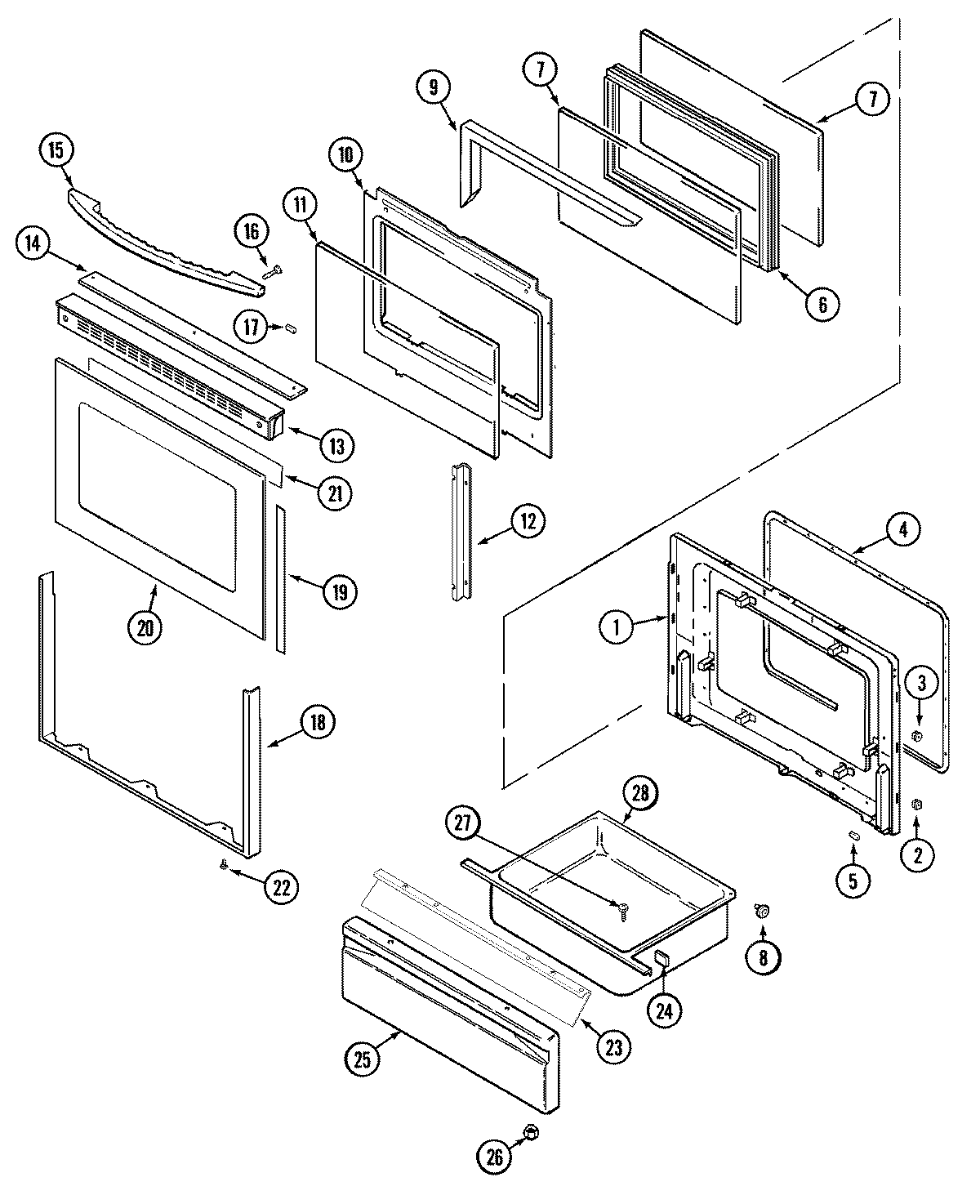

MGS5870ADQ 02 – DOOR/DRAWER

Products

Position	Product
1	MAY 74003642
2	MAY 74003643
3	NUT, SNAP (ROUND-BLK)
3	NUT, SNAP (ROUND-WHT)
4	GASKT-DOOR OVEN
5	MAY 8010P085-60
6	FRAME, GLASS
7	74003645 Whirlpool Range Oven Door Inner Glass
8	WP488130 Whirlpool Air Conditioner Nut
8	WP74004078 Whirlpool Door Roller
8	MAY 74004079
9	INSULATION, OVEN DOOR
10	MAY 74003648
11	GLASS, DOOR
12	MAY 74003650
13	MAY 74005006
14	MAY 74004978
15	MAY 74004974
16	WP179051 Whirlpool Screw
17	WP74004224 Whirlpool Tape
18	MAY 74005162
18	WP74009541 Whirlpool Screw Assembly
19	MAY 74003660
20	MAY 74005008
21	TAPE, FOIL 29`` X 2``
22	SCREW
23	LINING, DRAWER PANEL
25	PANEL, DRAWER (BSQ)
26	WPW10131078 Whirlpool Nut Assembly
28	MAY 71003042
