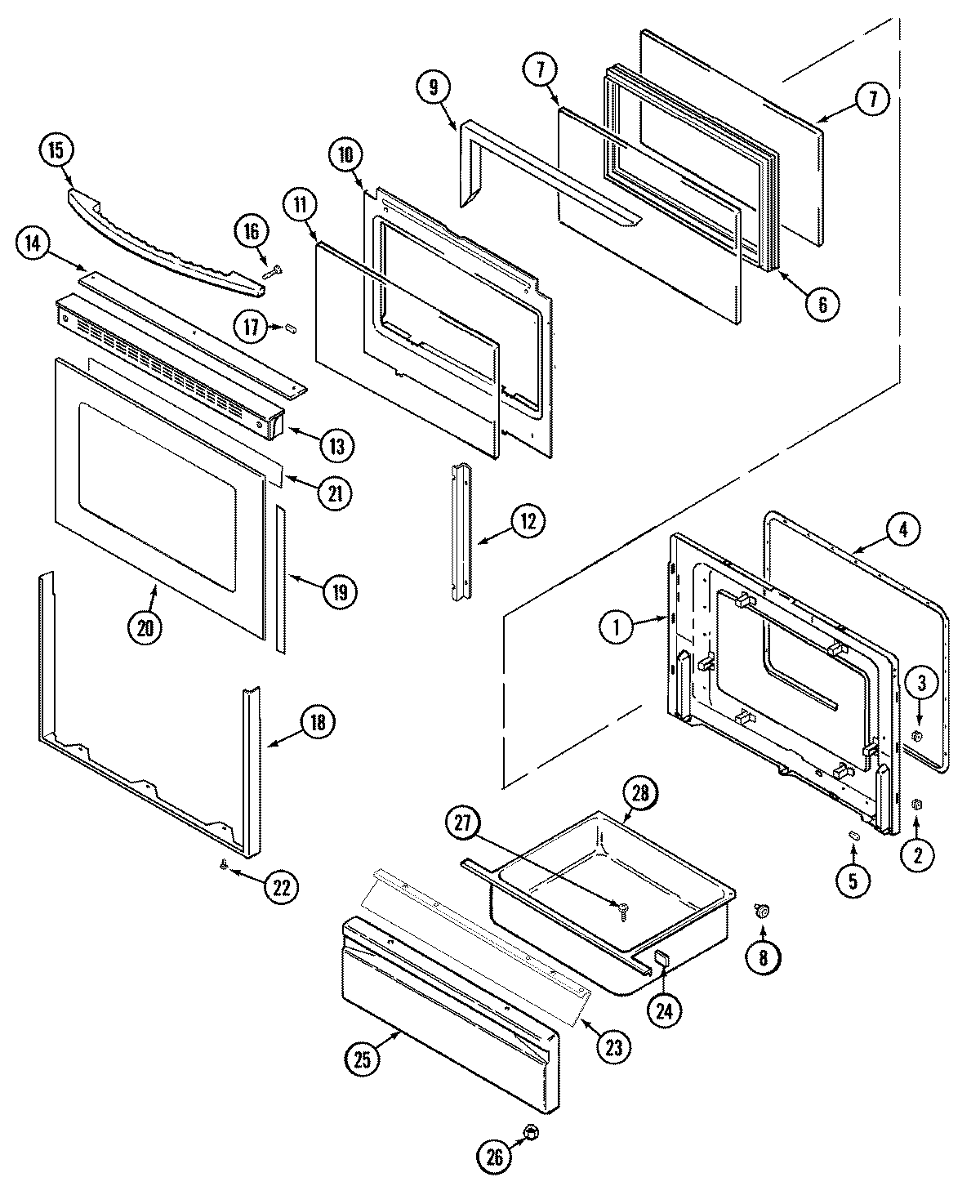

MGS5870ADW 02 – DOOR/DRAWER

Products

PositionProduct
1MAY 74003642
2MAY 74003643
3NUT, SNAP (ROUND-WHT)
3NUT, SNAP (ROUND-BLK)
4GASKT-DOOR OVEN
5MAY 8010P085-60
6FRAME, GLASS
774003645 Whirlpool Range Oven Door Inner Glass
8MAY 74003566
8WP488130 Whirlpool Air Conditioner Nut
9INSULATION, OVEN DOOR
10MAY 74003648
11GLASS, DOOR
12MAY 74003650
13WP74003653 Whirlpool Door Trim
14MAY 74001278
14MAY 7728P094-60
15MAY 74003620
16WP179051 Whirlpool Screw
17WP74004224 Whirlpool Tape
18WP98008544 Whirlpool Screw Assembly
18MAY 74004325
19MAY 74003660
20MAY 74003671
21TAPE, FOIL 29“ X 2“
22SCREW
23LINING, DRAWER PANEL
25PANEL, DRAWER (WHT)
26WPW10131078 Whirlpool Nut Assembly
28MAY 71003042
