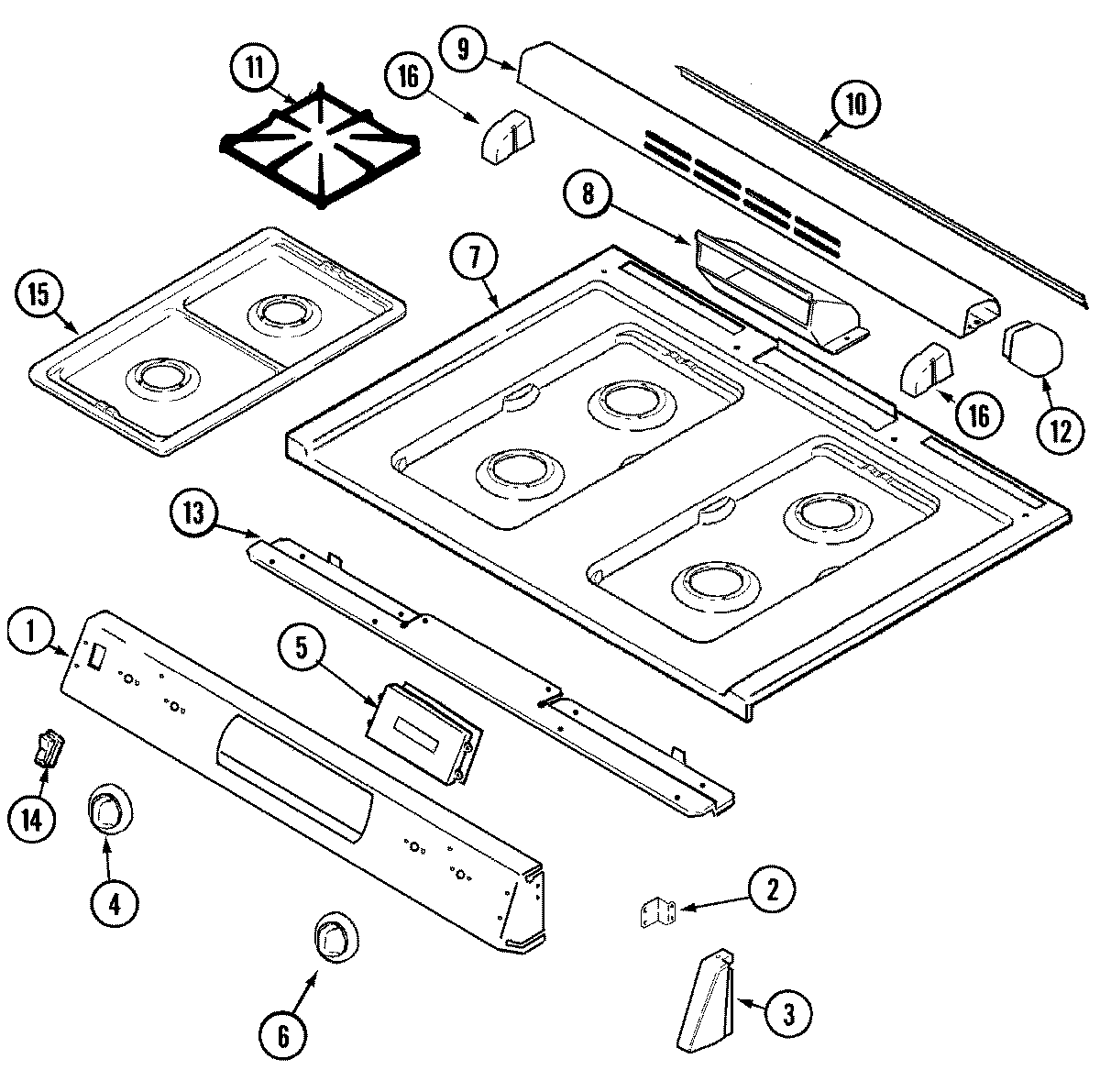

MGS5870ADW 05 – TOP ASSEMBLY (ADA, ADB, ADW, ADC)

Products

Position	Product
1	MAY 74004429
2	WP98008544 Whirlpool Screw Assembly
2	MAY 74005671
2	MAY 74004186
3	MAY 74004817
3	MAY 74004320
3	MAY 74004597
3	MAY 74004598
3	MAY 74004814
3	MAY 74004319
4	MAY 74004436
5	SCREW
5	WP5760M308-60 Whirlpool Electronic Control Board
5	MAY 74004316
6	MAY 74004432
6	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
7	MAY 74004424
8	BAFFLE,VENT COVER
8	WP59002061 Whirlpool Microwave Screw
9	MAY 74004289
9	MAY 74005324
10	MAY 7201P061-60
11	MAY 74003766
12	MAY 74004291
12	SCREW
12	MAY 74004290
13	MAY 74004460
13	SCREW (8BX3/8-NI)
14	74008717 Whirlpool White Rocker Switch
15	MAY 71003039
16	MAY 74006057
17	MAY 74005674
17	MAY 12001323
17	MAY 74004335
18	MAY 71003540
19	MAY 74002746
19	MAY 74004443
19	MAY 71002782
19	MAY 74004397
20	MAY 16010161
