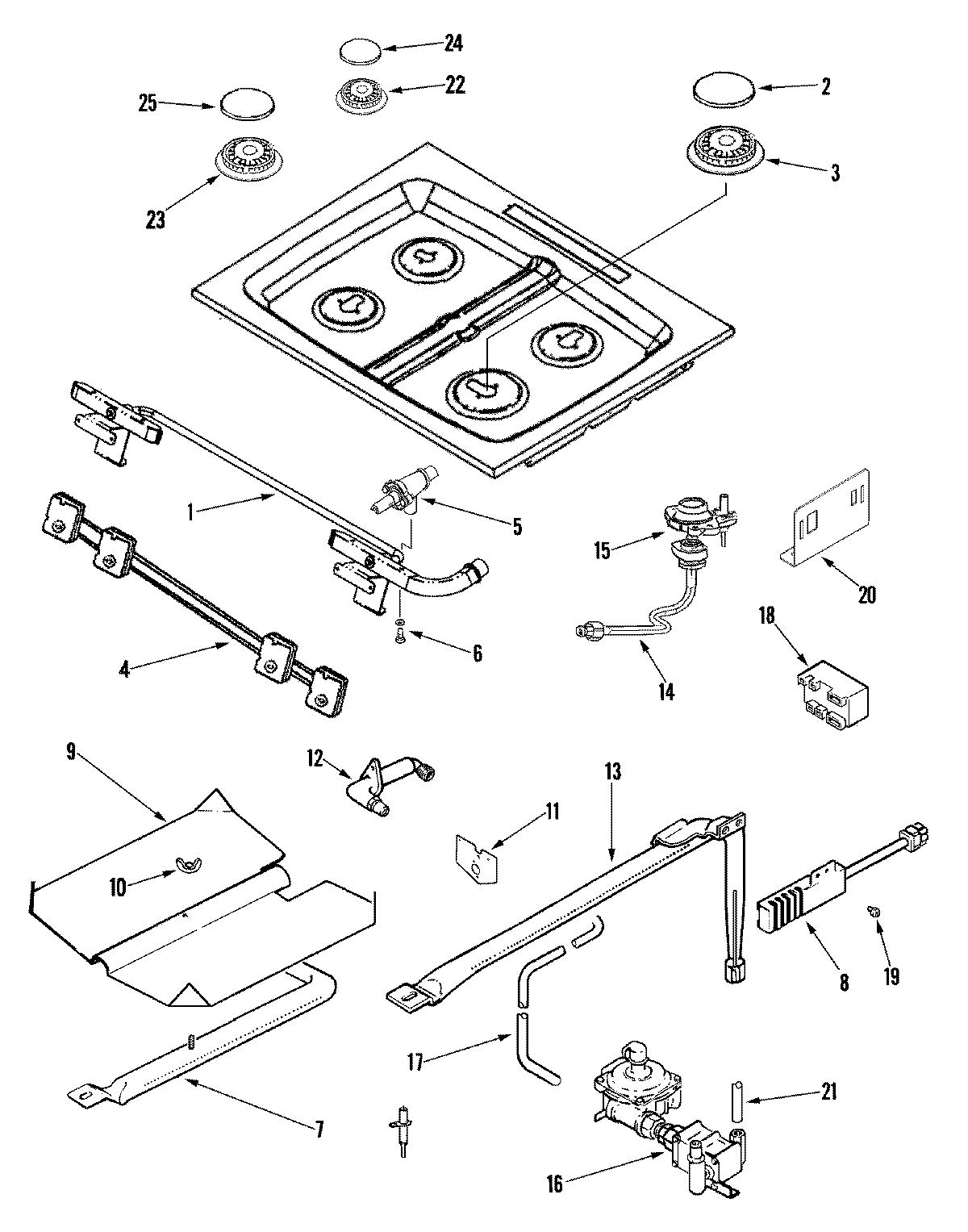

MGS5875BDB 04 – GAS CONTROLS

Products

Position	Product
1	MAY 74010965
2	WPW10154101 Whirlpool Burner Cap
3	WPW10406878 Whirlpool Burner Base (16K)
4	MAY 74010915
5	MAY 74009452
5	MAY 74009451
5	12002270 Whirlpool Valve Kit and Screw 16K
6	MAY 74009416
7	MAY 74004076
8	74007498 Whirlpool Range Flat Igniter
9	MAY 3601F217-47
10	NUT, WING
11	MAY 74004307
12	MAY 74010901
13	MAY 3807F446-45
13	MAY 74003960
14	MAY 74011134
14	MAY 74011133
14	MAY 74011131
14	MAY 74011132
15	WPW10407680 Whirlpool Orifice Holder
15	WPW10407678 Whirlpool Orifice Holder
15	WPW10110378 Whirlpool Surface Igniter
15	HOLDER, ORIFICE (9.2K)
16	MAY W10130932
17	MAY 74004408
18	Module, Spark (4+0)
18	MODULE, SPARK
18	8215557 Whirlpool Gas Stove Range Oven Cooktop Spark Module
19	SCREW (10-24X5/16-NI)
20	SUPPORT, SPARK MODULE
20	BRACKET
21	MAY 74010944
22	WPW10406243 Whirlpool Burner Head Auxiliary 6K
23	WPW10406797 Whirlpool Range Burner Base (12K & 9.2K)
23	WP90767 Whirlpool Screw
24	WP3191898 Whirlpool Surface Burner Cap Black
25	WP74007925 Whirlpool Burner Cap
