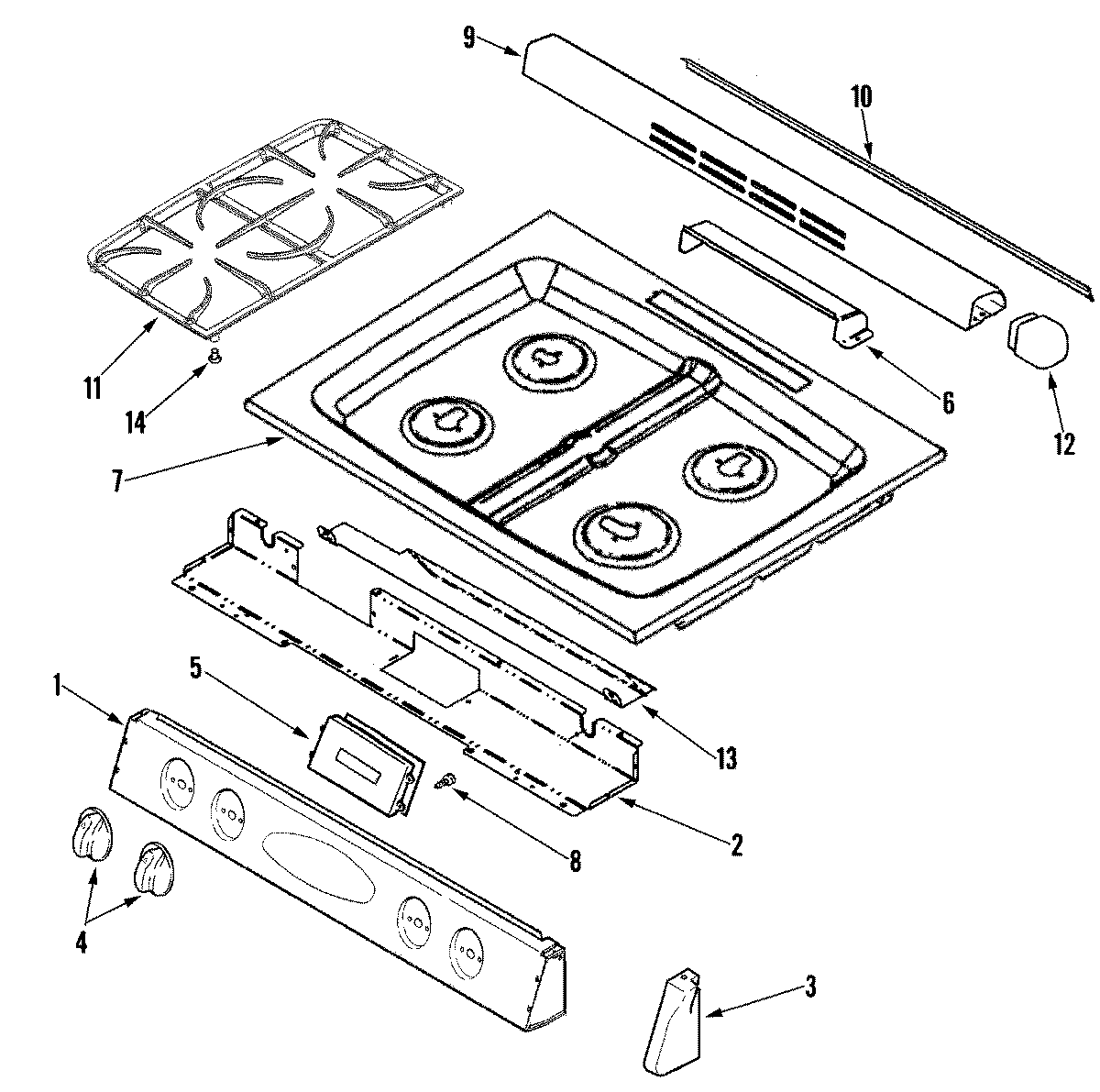

MGS5875BDQ 02 – CONTROL PANEL/TOP ASSEMBLY

Written by

Products

Position	Product
1	MAY 74011128
2	MAY 74010826
3	CAP, END (BSQ-RT)
3	CAP, END (BSQ-LT)
4	MAY 74011145
5	MAY 74010688
5	MAY 74010979
6	BAFFLE,VENT COVER
7	MAY 74011137
8	WP74004005 Whirlpool Screw
9	MAY 74010947
10	MAY 7201P061-60
11	GRATE, DOUBLE (TAUPE)
12	MAY 74004423
12	MAY 74004422
13	SHIELD, CONTROL
14	MAY M0275597
14	W10919249 Whirlpool Burner Grate Foot
