MGS5875BDQ 05 – OVEN/BASE

MGS5875BDQ 05 – OVEN/BASE

Written by

in

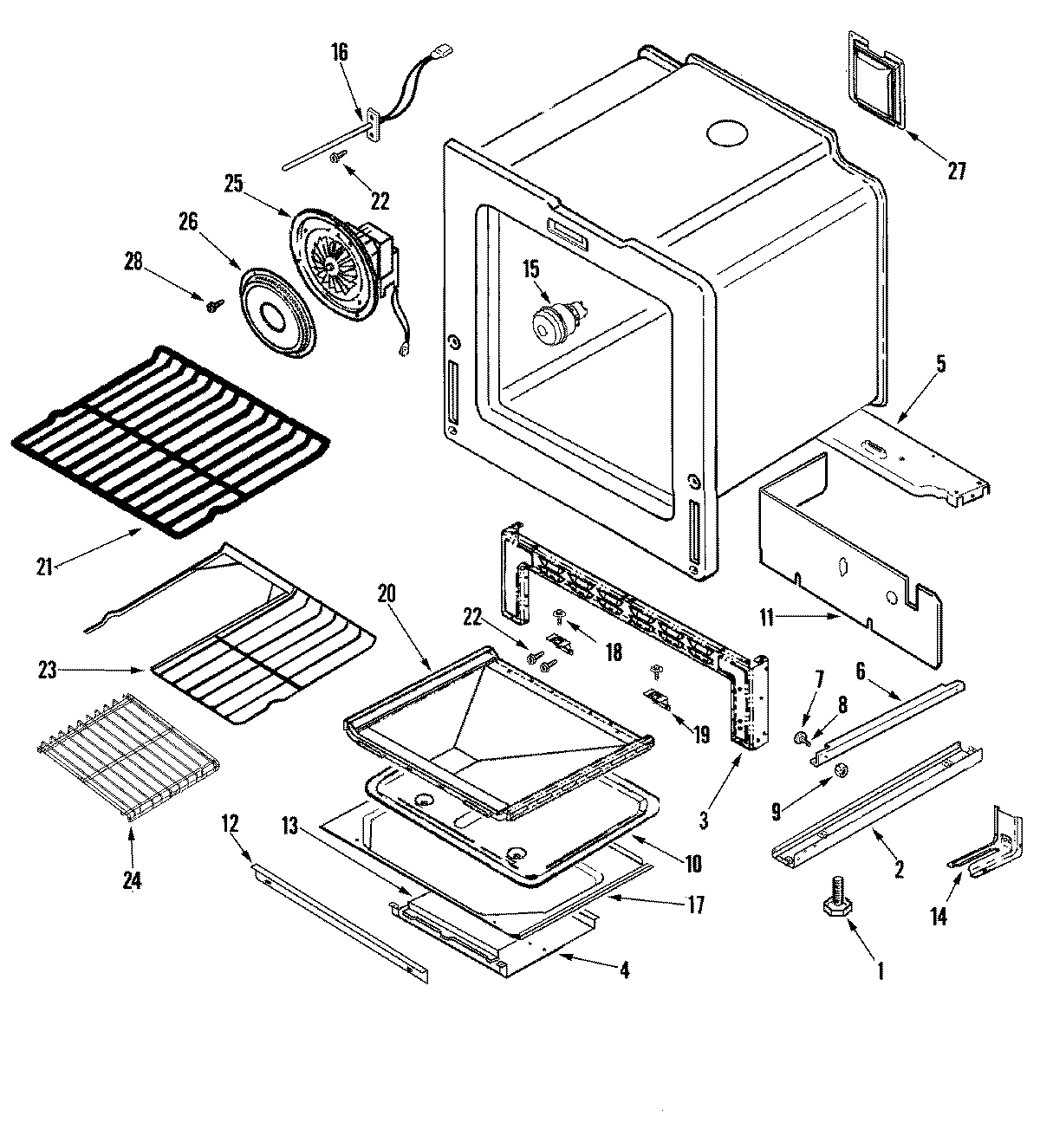

MGS5875BDQ 05 – OVEN/BASE

Products

PositionProduct
1WP74010805 Whirlpool Screw
24020W035-80 Whirlpool Bottom PE
3PEDESTAL, FRONT
4MAY 74006591
5SUPPORT, VALVE REGULATOR
6RUNNER, DRAWER
7WP74004078 Whirlpool Door Roller
8SHAFT, STORAGE DRAWER ROLLER
974005230 Whirlpool Oven Lock Nut (8-32)
10PAN, BAKE BURNER
11COVER, VALVE/REGULATOR
12BAFFLE, OVEN FRONT
13MAY 74006574
14WP3801F656-51 Whirlpool Range Anti-Tip Bracket
15RANGE ONLY 40W 120V APPL BULB
15LAMP ASSEMBLY
1612001655 Whirlpool Oven Sensor
17RETAINER, BOTTOM INSULATION
17INSULATION, OVEN BOTTOM
19MAY 74010812
20WP2205F054-19 Whirlpool Oven Bottom
21WPW10282492 Whirlpool Oven Rack
23WPW10273862 Whirlpool Oven Rack
24INSERT, HALF RACK 30“
25MAY 74010902
26COVER, CONVECT FAN
27MAY 74010814
28WP74003976 Whirlpool Screw
