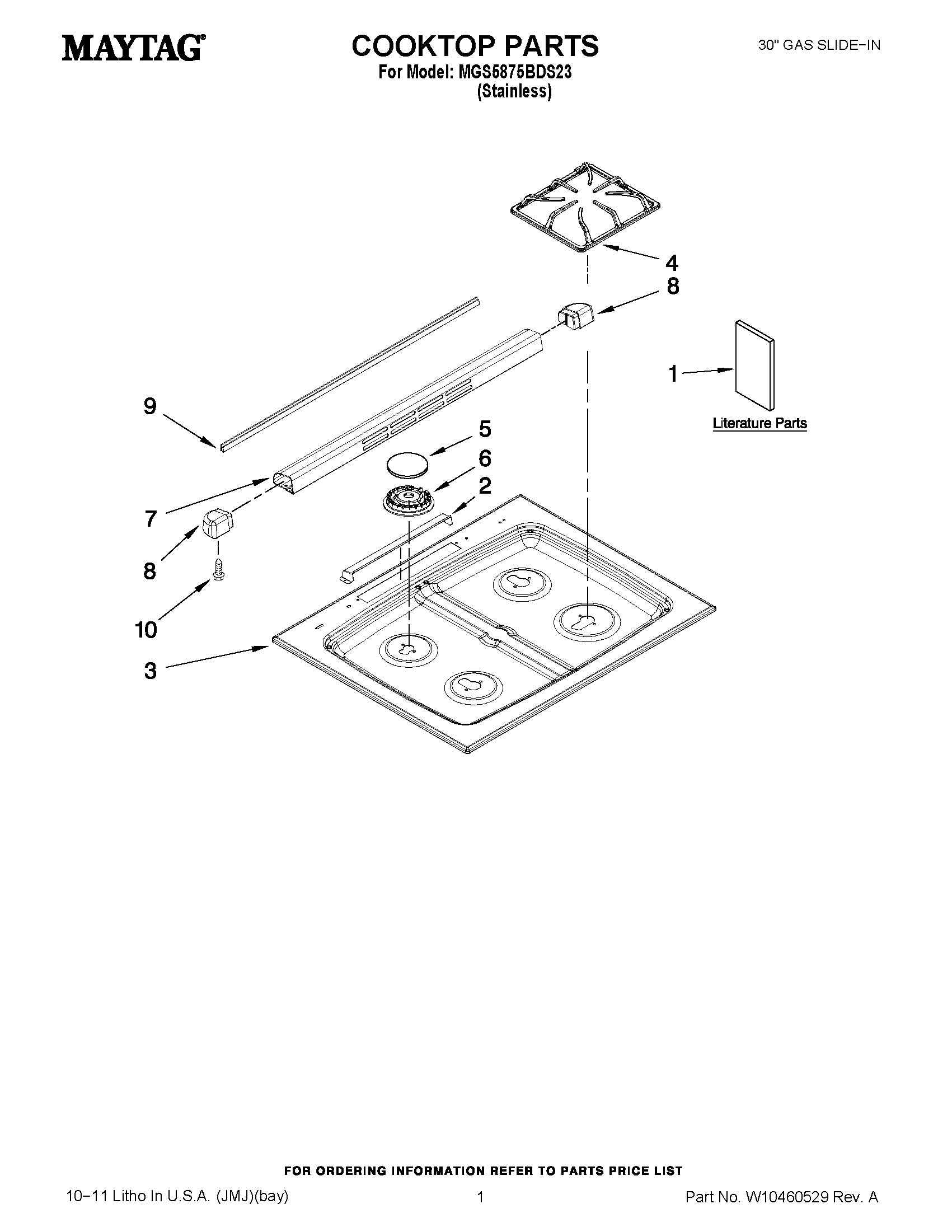

MGS5875BDS23 01 – COOKTOP PARTS

MGS5875BDS23 01 – COOKTOP PARTS

Written by

in

MGS5875BDS23 01 – COOKTOP PARTS

Products

PositionProduct
1TIPS, SAFE COOKING (ENGLISH)
1OWNERS MANUAL
1MAY 8101P667-60
1MAY W10394678
1TIPS, SAFE COOKING (FRENCH)
2BAFFLE,VENT COVER
3MAY 2001D314-50
4MAY 7518P193-60
5CAP, BURNER (BLACK (LF))
5CAP, BURNER (BLACK (1))
5CAP, BURNER (BLACK (3))
5CAP, BURNER (BLACK (LR/RR/RF))
6HEAD, BURNER CTR.
6HEAD, BURNER (RF)
6HEAD, BURNER (LR/RR/LF)
7MAY 7724P197-60
8MAY 7726P396-60
8MAY 7726P397-60
9GASKET, DOOR TOP
10SCREW
