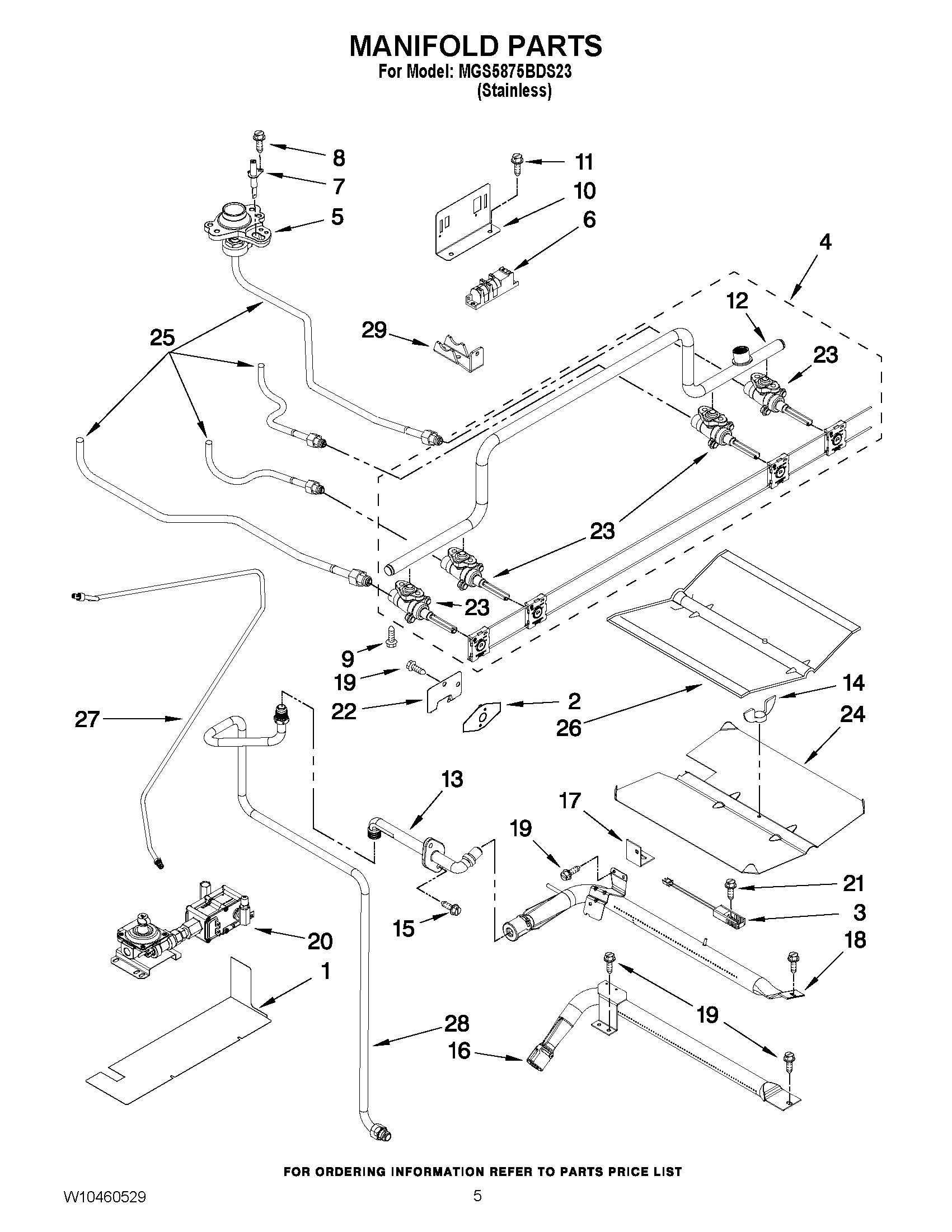

MGS5875BDS23 04 – MANIFOLD PARTS

Products

Position	Product
NI	MAY 7507P405-60
1	COVER, BNR VALVE
2	MAY 3605F269-45
3	HARNESS, VALVE INCLUDES SWITCHES
4	HARNESS, VALVE INCLUDES SWITCHES
5	ORIFICE (LR)
5	ORIFICE (LF,RR)
5	ORIFICE (RF)
6	MODULE, SPARK
7	IGNITOR, OVEN
9	SCREW (8BX3/8-NI)
10	BRACKET
11	MAY 7101P426- 60
12	MAY W10303679
13	MAY 7507P407-60
14	NUT, WING
15	SCREW (2)
16	MAY 7505P254-60
17	MAY 3807F480-45
18	MAY 7505P293-60
19	MAY 7101P434-60
20	VAVLE, SAFETY
21	SCREW (10-24X5/16-NI)
22	MAY 4005F421-45
23	VALVE, BURNER (LF,RF,RR)
23	VALVE, BURNER (RF)
23	VALVE, BURNER (LR)
24	BAFFLE, BAKE (BROIL)
25	MAY W10251780
25	MAY W10251781
25	MAY W10251782
25	MAY W10251784
26	BAFFLE, OVEN BOTTOM
27	TUBING, SUPPLY
28	TUBING, BROILER
29	MAY W10160655
