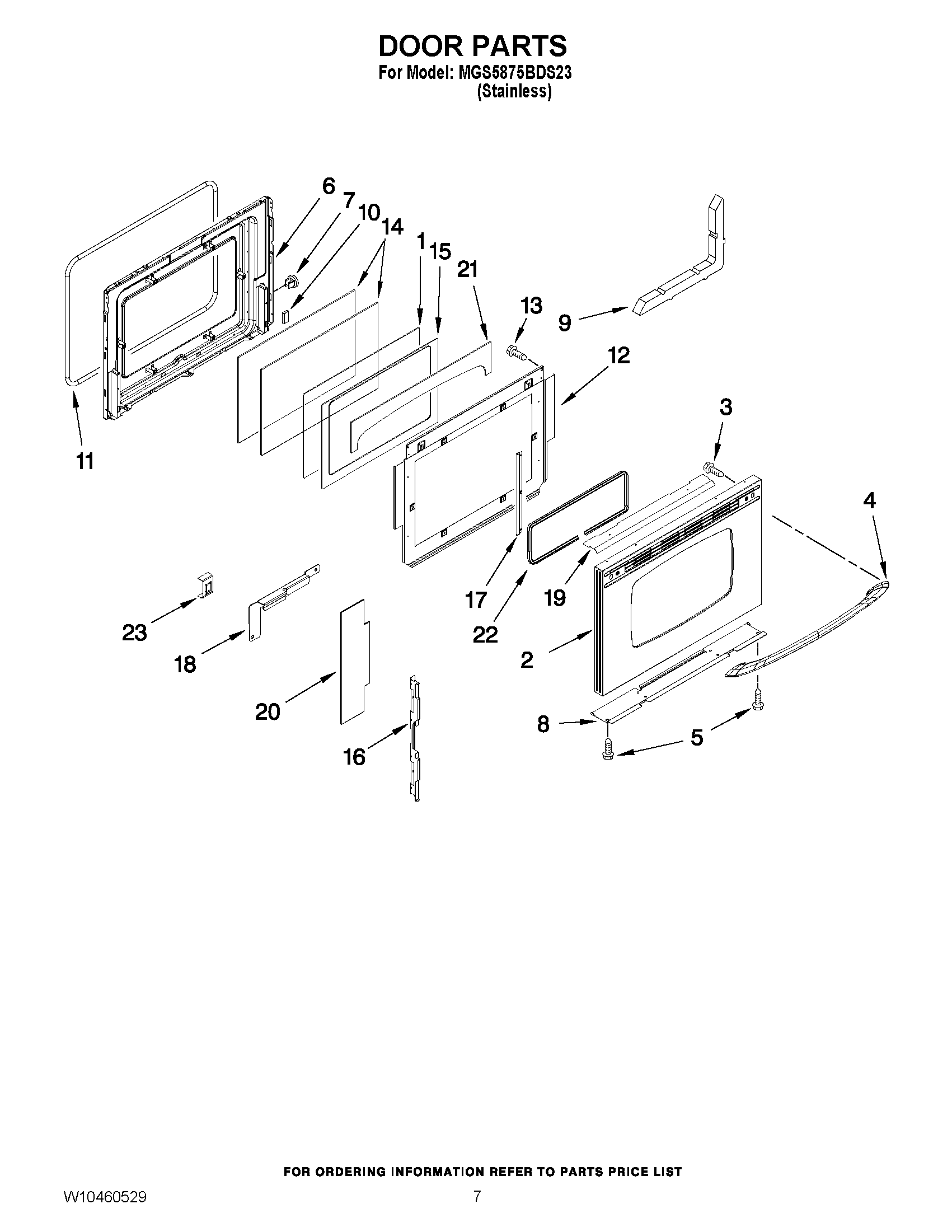

MGS5875BDS23 05 – DOOR PARTSadmin2025-04-26T13:06:57+00:00MGS5875BDS23 05 – DOOR PARTS
Products
| Position | Product |
|---|
| 1 | GLASS, INNER COATED |
| 2 | PANEL, OUTER DOOR (STAINLESS) |
| 3 | SCREW, HANDLE (2) |
| 4 | HANDLE, DOOR (STAINLESS) |
| 5 | Screw (2) (Black) |
| 6 | MAY 2402W312-19 |
| 7 | MAY 7103P141-60 |
| 8 | RETAINER, GLASS (LOWER) |
| 9 | MAY 7002P246-60 |
| 10 | MAY 8010P130-60 |
| 11 | MAY W10162384 |
| 12 | MAY 3601F373-51 |
| 13 | MAY 7101P426- 60 |
| 14 | Glass, Inner |
| 15 | MAY 7902P752-60 |
| 16 | RETAINER, GLASS SUPPORT |
| 17 | BRACKET, INNER GLASS |
| 18 | MAY 3804F308-51 |
| 18 | MAY 3804F307-51 |
| 19 | MAY 3604F418-51 |
| 20 | INSULATION, FOIL |
| 21 | MAY 7002P403-60 |
| 22 | MAY 7201P141-60 |
| 23 | CLIP, DOOR |
