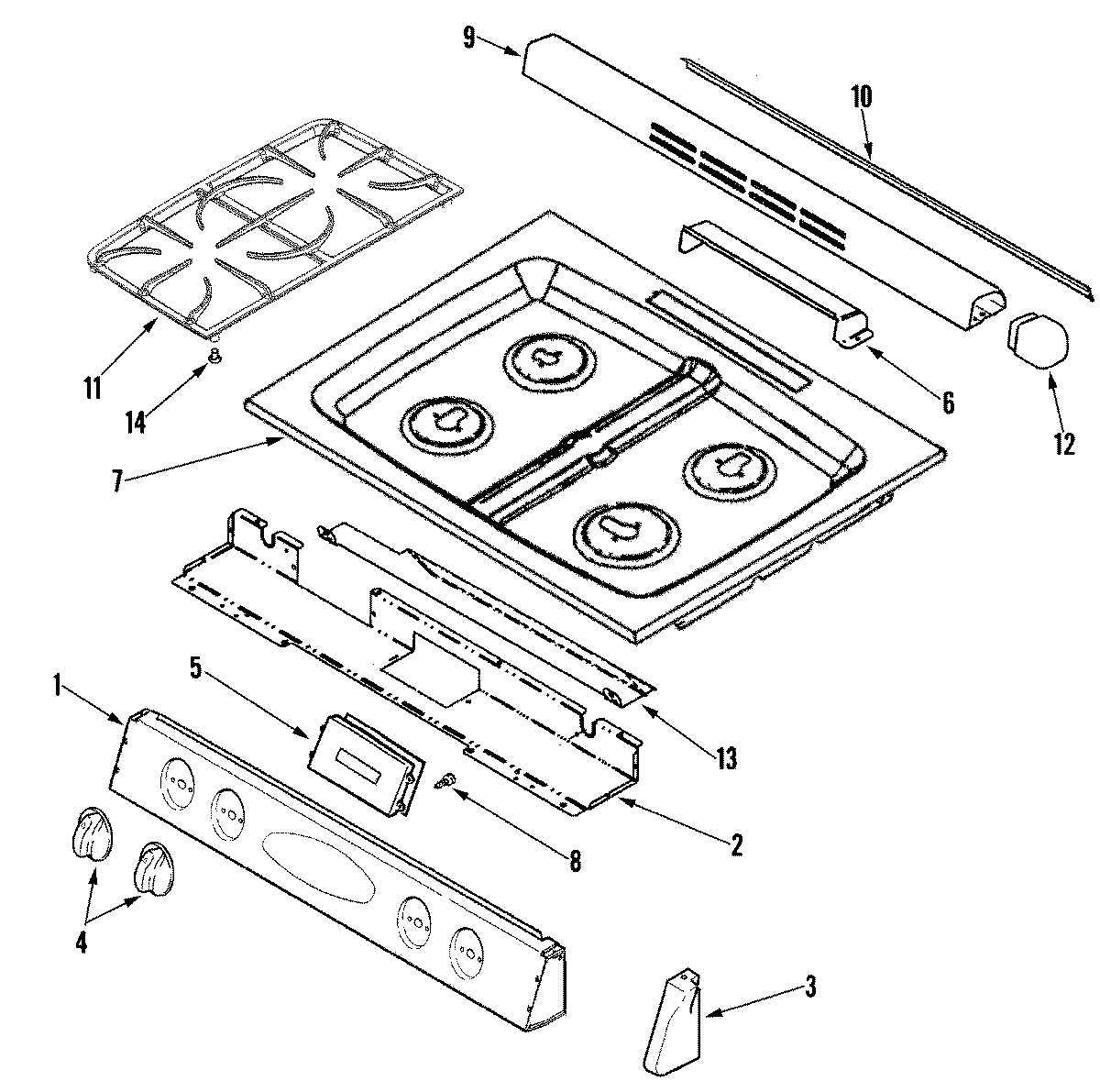

MGS5875BDW 02 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74011127
2MAY 74010826
3CAP, END (WHT-RT)
3CAP, END (WHT-LT)
4MAY 74010975
5MAY 74010979
5MAY 74010687
6BAFFLE,VENT COVER
7MAY 74011136
8WP74004005 Whirlpool Screw
9MAY 74010947
10MAY 7201P061-60
11GRATE, DOUBLE (GRY)
12MAY 74004291
12MAY 74004290
13SHIELD, CONTROL
14MAY M0275597
14W10919249 Whirlpool Burner Grate Foot
