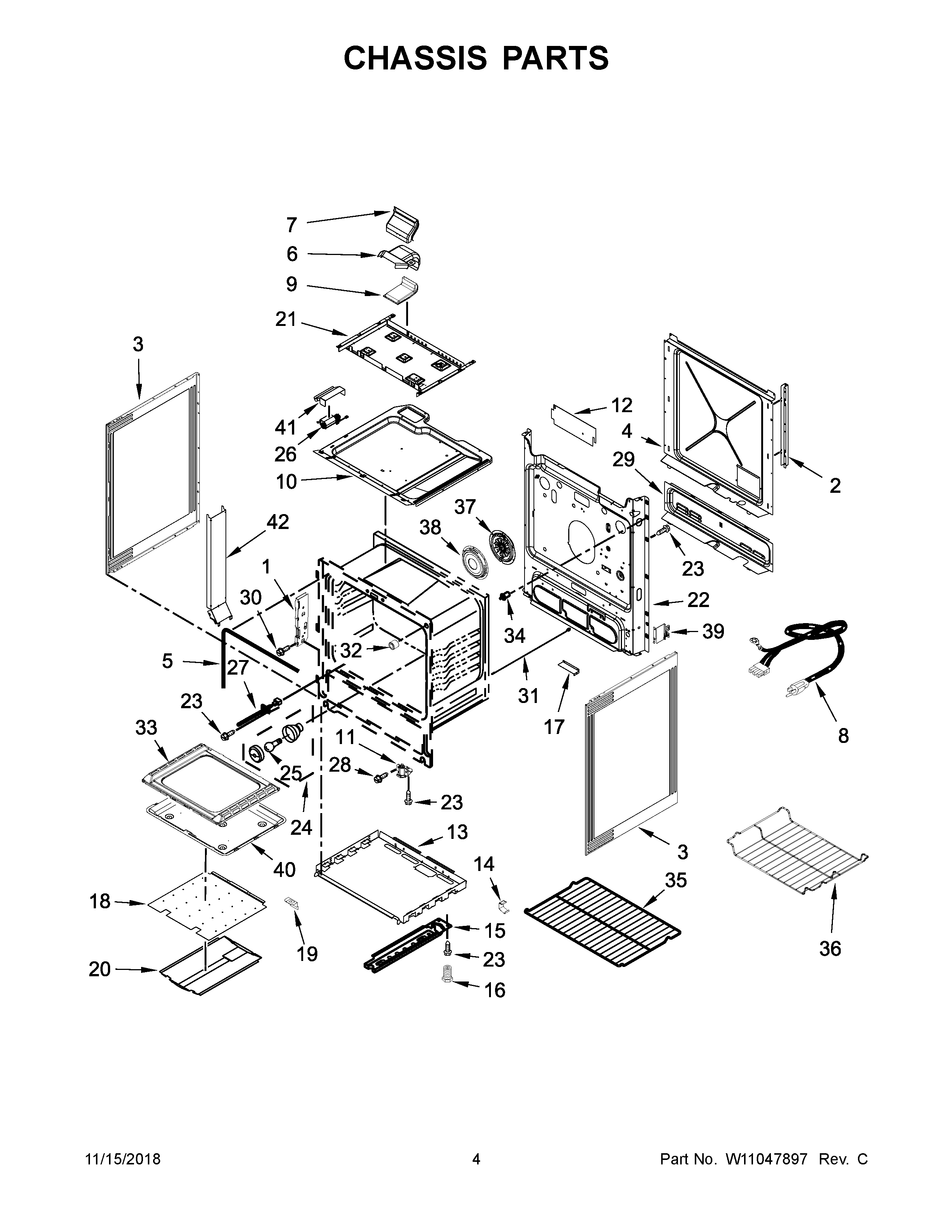

MGS8800FZ0 03 – CHASSIS PARTS

Products

Position	Product
NI	STRAP, INSULATION
NI	MAY 7111P017-60
NI	INSULATION, BACK
NI	INSULATION, WRAP
NI	LINER (NOT A SERVICEABLE PART)
NI	CLIP, WIRE
1	RECEIVER, HINGE
2	MAY W10162241
3	PANEL, SIDE (BLACK)
4	MAY W10289172
5	MAY W10162385
6	MAY W10162257
7	ASSEMBLY, FLUE
8	CORD, POWER
9	ASSEMBLY, FLUE (UPPER)
10	BOX, BURNER SI
11	ASSEMBLY, FRONT FOOT
12	SHIELD, WIRE
13	SHIELD, BAKE
14	CLIP, PANEL
15A	ASSEMBLY, BASE RAIL (RIGHT)
15	ASSEMBLY, BASE RAIL (LEFT)
16	FOOT, LEVELING
17	GUARD, SPLASH
18	MAY W10323077
19	MAY W10035900
20	MAY 3601P356-45
21	BURNER, BOX GAS
23	SCREW
24	ASSEMBLY, LIGHT
25	RANGE ONLY 40W 120V APPL BULB
26	ASSEMBLY, COOLING FAN
27	MAY W10586204
28	SCREW
29	COVER, WIRE
30	MAY W10031780
31	ROD, REAR DOOR
32	SPACER, DOOR
33	MAY W10211368
34	SWITCH, DOOR
35	MAY W10531060
36	ACCESSORIES, RACK, OVEN (GULL-WING)
37	ASSEMBLY, CONVECTION
38	MAY W10346154
39	BRACKET, SUPPORT
40	MAY W10273204
41	DUCT, COVER
42	DUCT, COOLING
