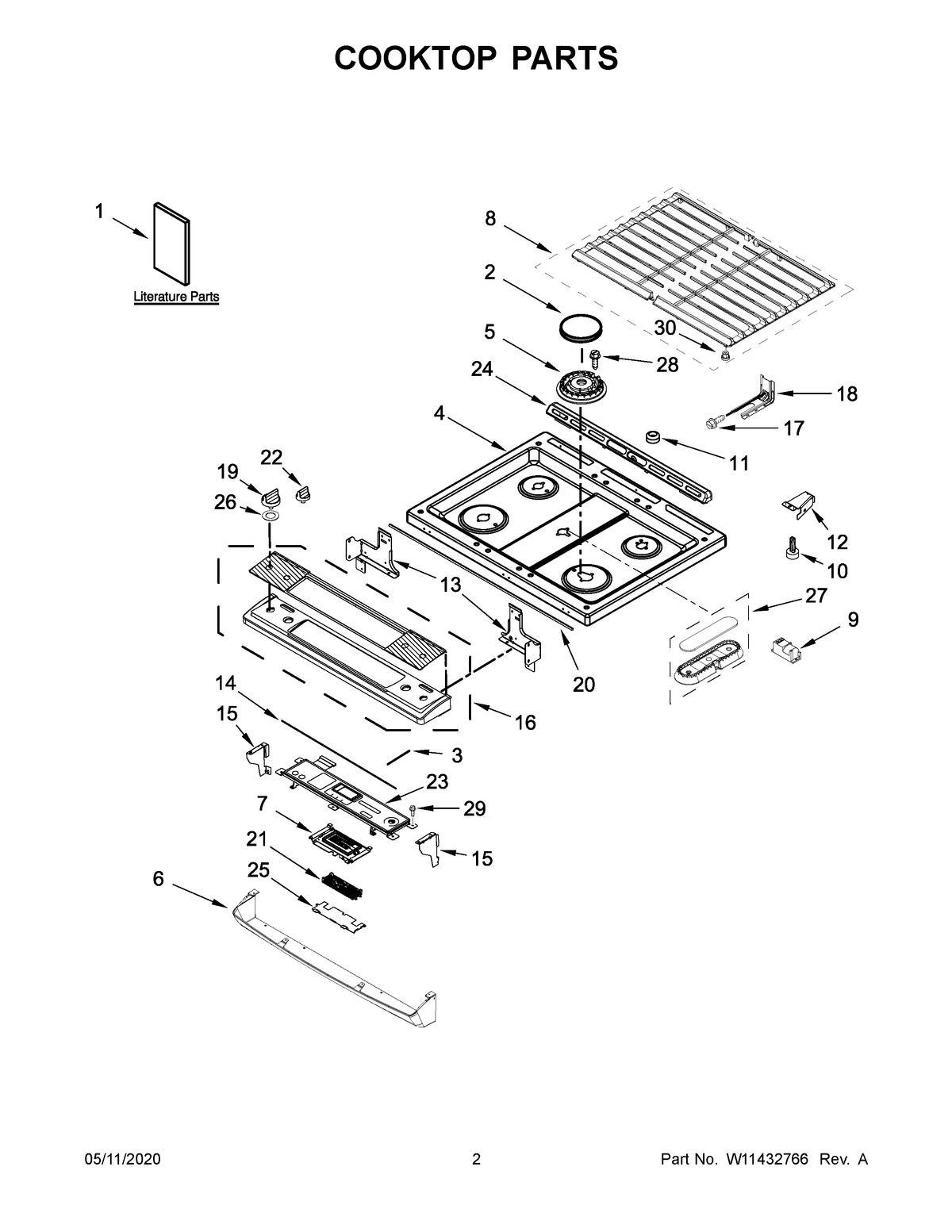

MGS8800FZ1 02 – COOKTOP PARTS

Products

Position	Product
NI	MAY W10580265
NI	CLIP, HARNESS
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY W10575120
NI	MAY W10754419
NI	HARNESS, DISPLAY
NI	HARNESS, MAIN
NI	WIRE, GROUND
1E	MAY W10400067
1	INSTALLATION INSTRUCTIONS
1B	SHEET, TECH
1A	MAY W11399127
1C	MAY W10844279
1D	MAY W10400066
2	KIT, BURNER CAP (BLACK (SET OF 4))
3	GASKET, CONSOLE SHORT
4	MAY W11341033
5B	SPREADER, FLAME (LEFT REAR)
5A	SPREADER, FLAME (RIGHT REAR)
5	SPREADER, FLAME (LEFT FRONT & RIGHT FRONT)
6	PANEL, LOWER CONSOLE (BLACK)
7	ASSEMBLY, DISPLAY
8	MAY W11353423
9	MODULE, SPARK (0+2)
9	MAY W10475149
10	GLIDE, MAIN TOP
11	MAY W10854253
12A	BRACE, CORNER (RIGHT)
12	BRACE, CORNER (LEFT)
13A	SUPPORT, COOKTOP (RIGHT)
13	SUPPORT, COOKTOP (LEFT)
14	GASKET, CONSOLE
15A	BRACKET, CONSOLE (RIGHT)
15B	BRACKET, CONSOLE (CE
15	BRACKET, CONSOLE (LEFT)
16	MAY W10680371
17	SCREW, ANTI-TIP KIT
18	BRACKET, ANTI-TIP
19	KNOB (STAINLESS)
20	GASKET, CONSOLE/COOKTOP
21	CONTROL, ELECTRONIC
22	KNOB, MINI (STAINLESS)
23	ASSEMBLY, OVERLAY (STAINLESS)
24	TRIM, VENT (BLACK)
25	BRACKET, CONTROL
26	BUSHING (BLACK)
27	SPREADER, FLAME
28	SCREW
29	SCREW
30	GRATE, BUMPER
