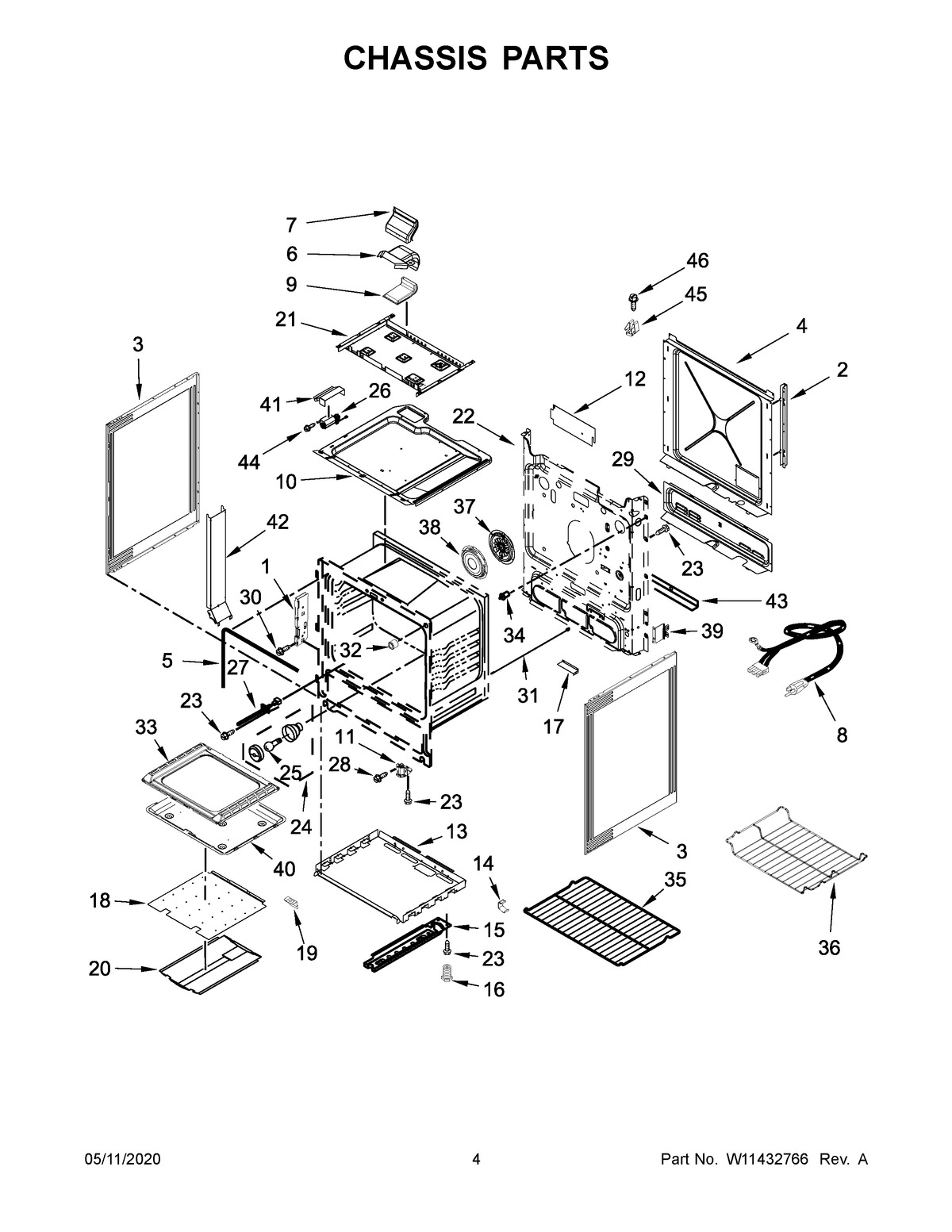

MGS8800FZ1 03 – CHASSIS PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	STRAP, INSULATION
NI	INSULATION, BACK
NI	CLIP, WIRE
NI	INSULATION, WRAP
NI	MAY 7111P017-60
1	RECEIVER, HINGE
2	MAY W10162241
3	PANEL, SIDE (BLACK)
4	COVER, BACK
5	MAY W10162385
6	MAY W10162257
7	ASSEMBLY, FLUE
8	CORD, POWER
9	ASSEMBLY, FLUE (UPPER)
10	BOX, BURNER SI
11	ASSEMBLY, FRONT FOOT
12	SHIELD, WIRE
13	SHIELD, BAKE
14	CLIP, PANEL
15A	ASSEMBLY, BASE RAIL (RIGHT)
15	ASSEMBLY, BASE RAIL (LEFT)
16	FOOT, LEVELING
17	GUARD, SPLASH
18	MAY W10323077
19	MAY W10035900
20	MAY 3601P356-45
21	BURNER, BOX GAS
23	SCREW
24	MAY W11175594
25	BULB, HALOGEN 40 WATTS
26	ASSEMBLY, COOLING FAN
27	MAY W10586204
28	SCREW
29	COVER, WIRE
30	MAY W10031780
31	ROD, DOOR SWITCH
32	SPACER, DOOR
33	MAY W10211368
34	SWITCH, DOOR
35	MAY W10531060
36	ACCESSORIES, RACK, OVEN (GULL-WING)
37	CONVECTION ASSEMBLY
38	MAY W10346154
39	BRACKET, SUPPORT
40	PAN, BAKE
41	DUCT, COVER
42	DUCT, COOLING
43	BRACE, MAIN BACK
44	SCREW
45	GROMMET
46	MAY W10516115
